Profit/Loss Summary

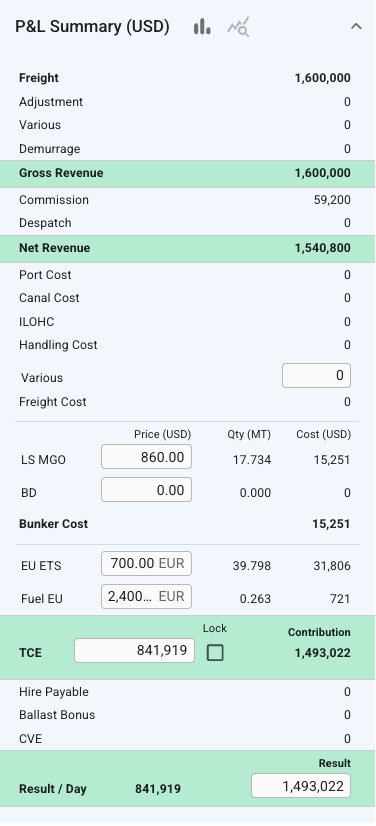

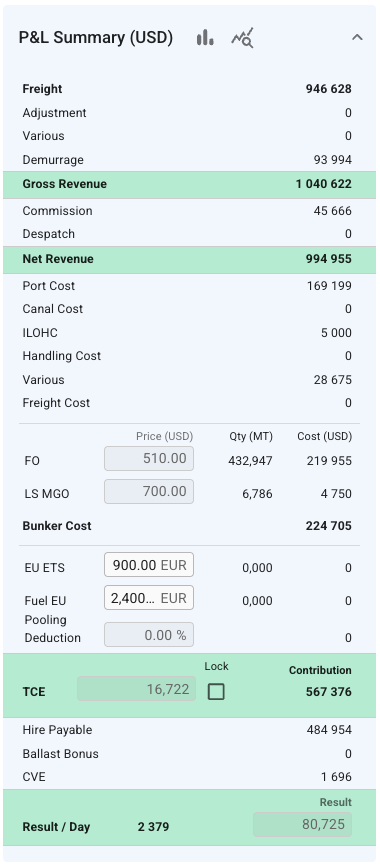

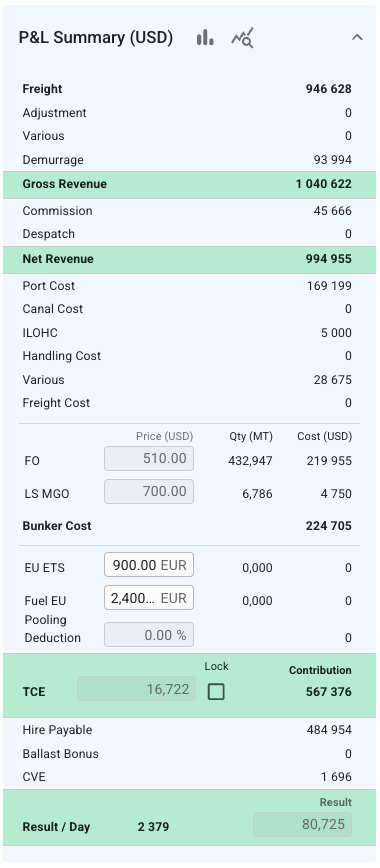

The summary section displays all cost/revenue items, including fuel consumption and price, related to either cargo, voyage, or port call. This breakdown displays different figures for Voyage Charter and Time Charter estimates.

As you start to invoice various items on the voyage, the exchange rates used for calculating profit loss values will be an average of the rate used in each invoice, should those currencies differ from the voyage currency. As such, the numbers on display in the Profit/Loss summary may change slightly throughout the voyage, but should be exact once the final invoice has been issued.

When the voyage drawer is open, selecting Open Full Screenexpands the panel and shows an additional section/panel summarizing the profit/loss for this voyage.​

By selecting the TCE checkbox in estimates, you can override either TCE or Result. The system will then automatically compute the estimated freight or TC rate needed to reach this desired outcome.

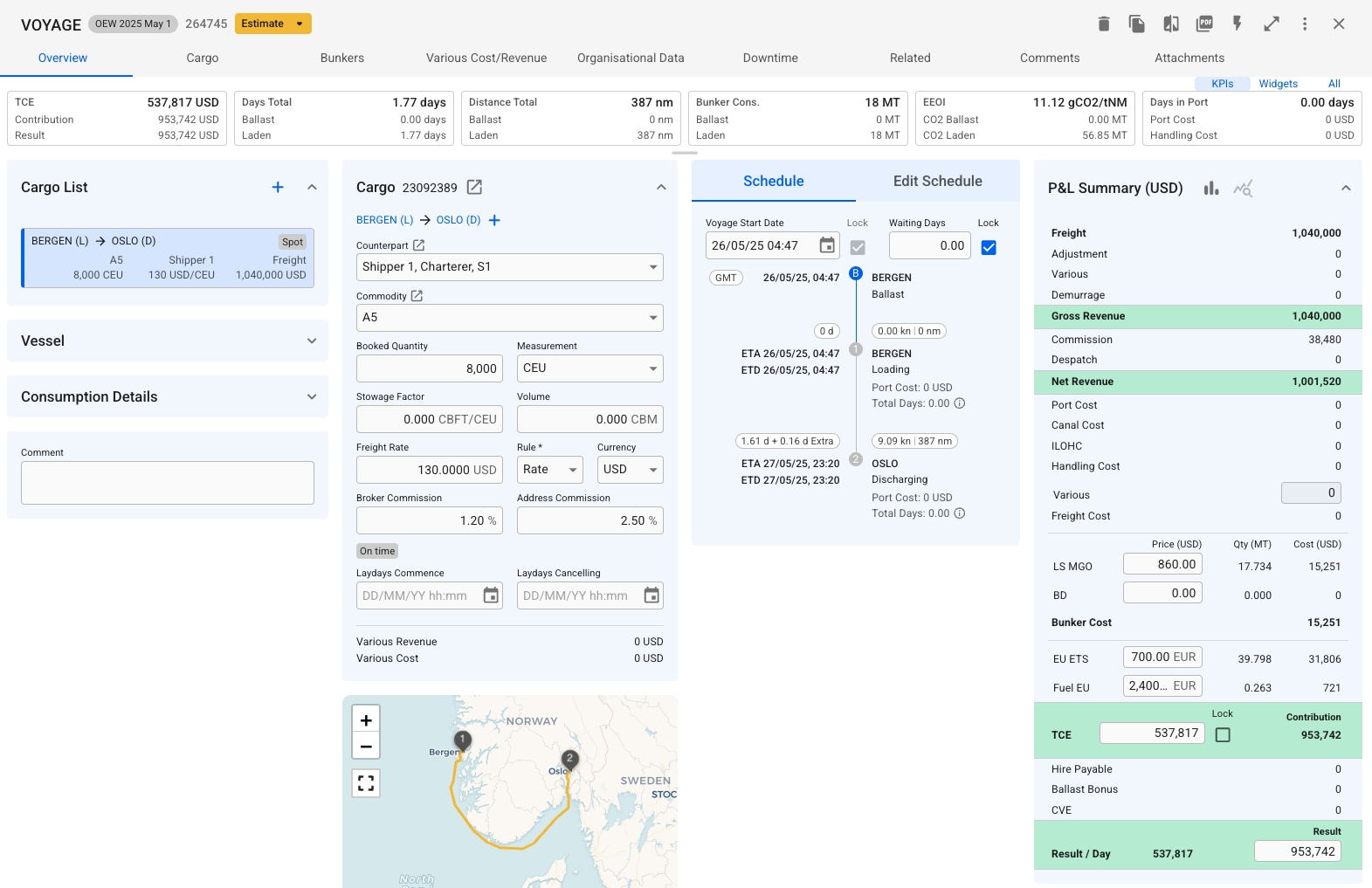

Initial Estimate: A freight rate of 130 USD results in a TCE of 537,817 USD and a result of 953,742.

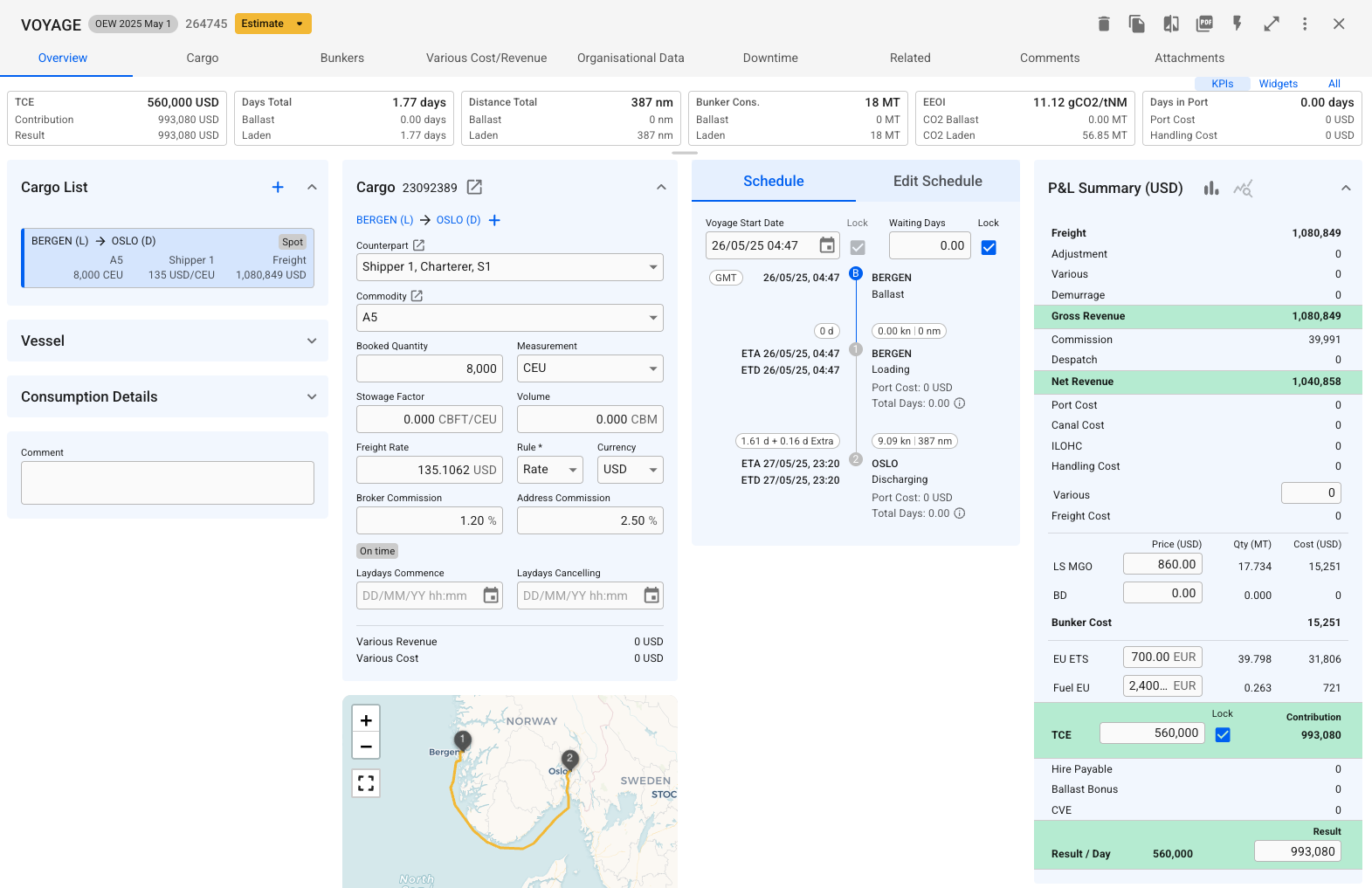

To achieve a TCE of 560,000 USD, the freight rate needs to be 135.1062 USD.

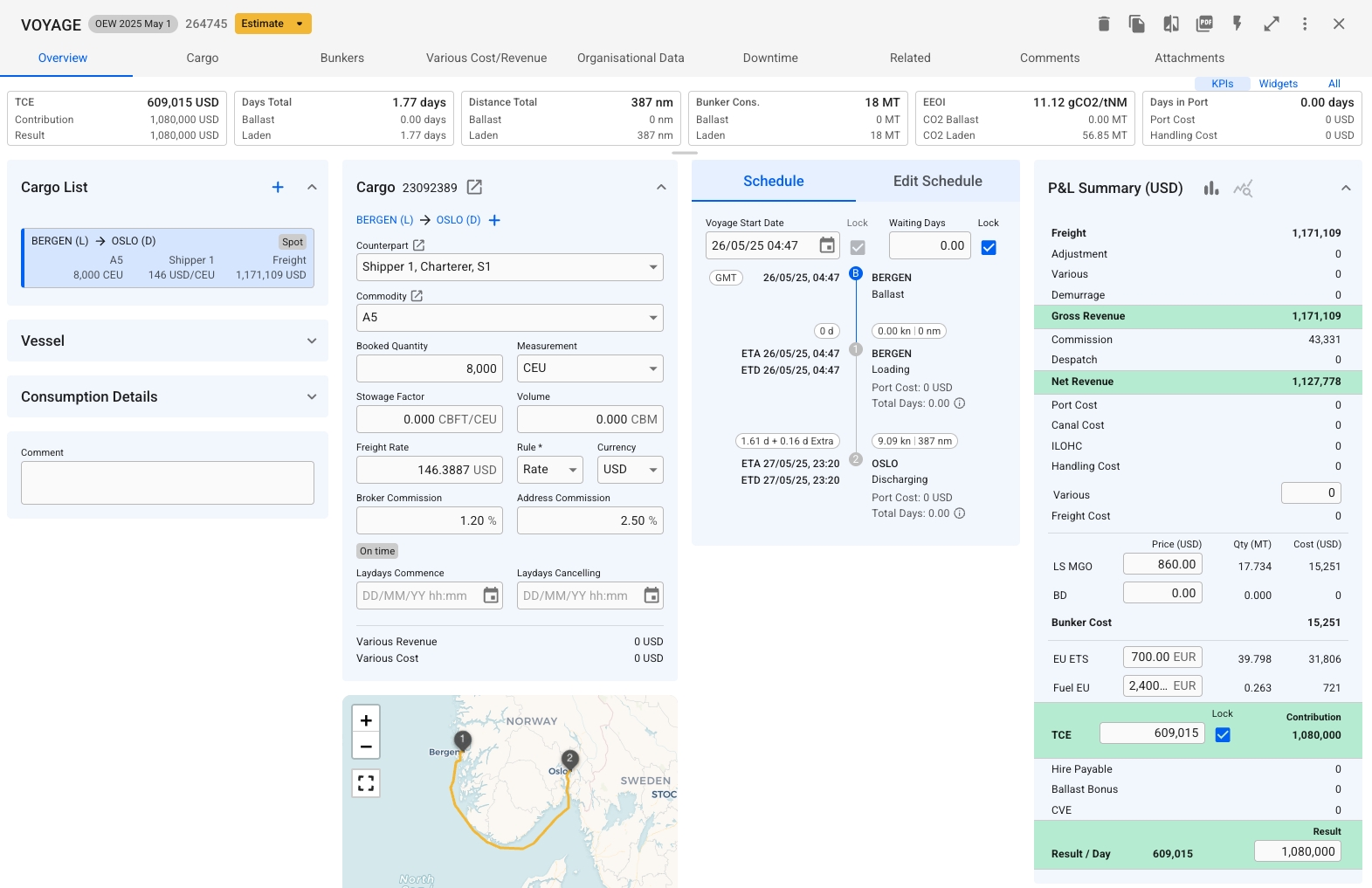

To achieve a result of 1,080,000 USD, the freight rate needs to be set at 146.3887.

To show the analysis section, click Analysisat the top of the panel. To show an overview bar chart, click Result Chartat the top of the panel.
