Voyage Map

The voyage map shows the voyage schedule, including alternative routing pointsthat can be added to the schedule between port calls. More routing points will be revealed as you zoom in on the map.

Viewing routing points

Click on a routing pointto show information about the point in a popup, including name, position, and GMT offset. When a routing point is clicked it will also be possible to add the routing point to the voyage route. When clicking 'Add to route', a pop-up will appear where you have to choose between which port calls the routing point shall be added.

Remove existing routing points from the Voyage route

Routing points that are on the voyage can be removed. When clicked, a button will become available 'Remove from voyage route'. When this is clicked, a confirmation box will appear. When confirmed, the routing point will be removed from the voyage.

Restricted areas

The interactive Voyage Map features several restricted areas:

1. Emission Control Areas

2. Open Loop Restricted Areas

Restricted Areas are visible on the map and depicted by Blue or Red dashed lines (See Figure 1).

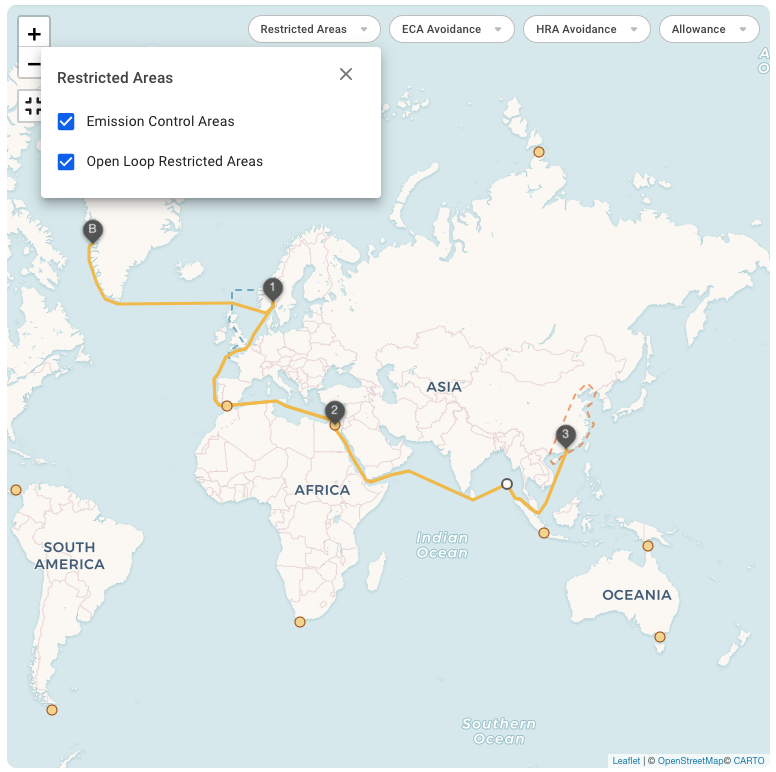

Figure 1 - Restricted Areas on Voyage Map.

The leftmost dropdown filter allows changing the settings to include the particular group of Restricted Areas in the map or not.

Additional filter: "Active Areas"

The voyage map now includes a "Active Areas" filter, allowing users to display Restricted Areas that are currently active based on their defined Start and End Dates. The filter is enabled by default and is voyage specific.

Show All Areas

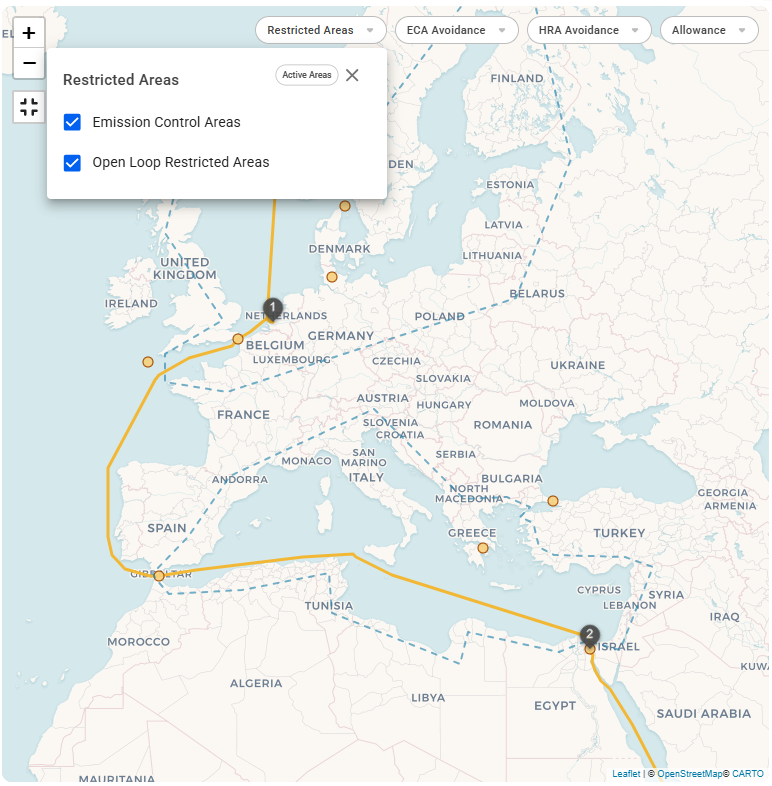

Figure 2 - 'Active Areas' filter not applied

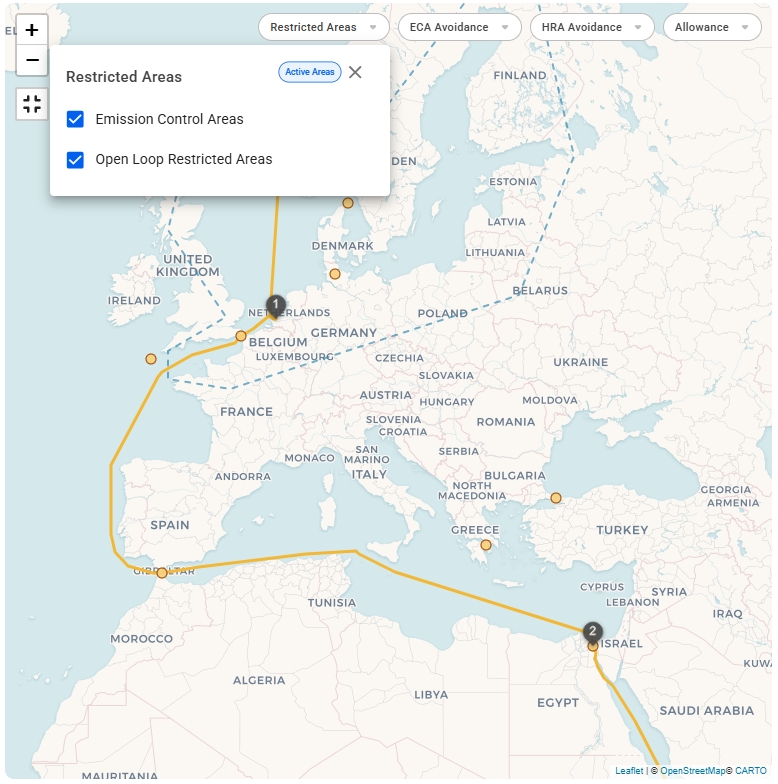

Show Active Areas
