Schedule

The "Schedule" section in the Voyage drawer comprises three sub-sections: Schedule, Edit Schedule, and Routing. This part focuses on the 'Schedule' tab.

The Voyage schedule (Figure 1) visualization may be found on the right-hand side of a voyage drawer.

This section is highly customizable: for example, you can change the voyage start date, lock it, update the port call sequence, and edit port calls by hovering over a port call box.

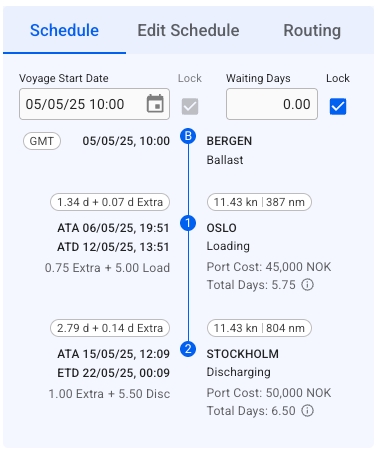

Figure 1. Voyage Schedule

The Schedule Timeline is a fully interactive module. Each port represents a draggable block - if you reorder the blocks with not-fixed port calls (Figure 2), you will update the port call sequence on the opened voyage correspondingly:

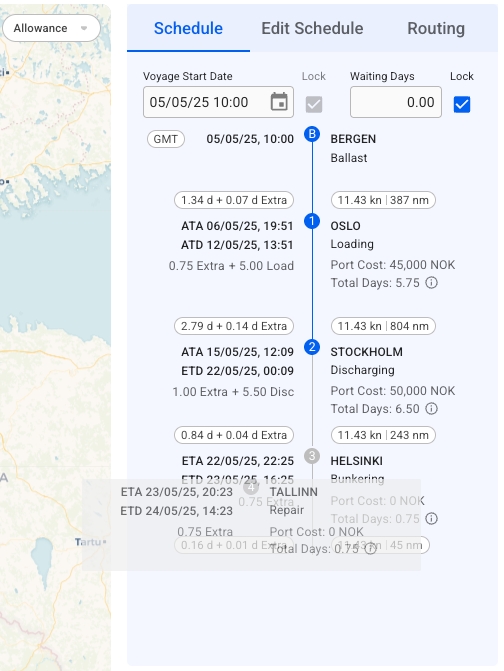

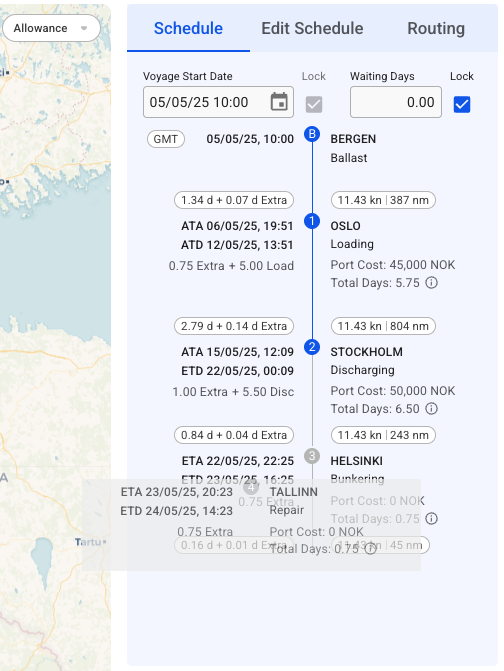

Figure 2. Schedule Drag'n'Drop

Next, each Port Call block is clickable, and it brings up a Port Call drawer.

The small ovals inside of each Port Call block are called chips and include a piece of related information: Days at Sea + Extra Days at Sea, Actual Speed, and Distance between Ports. Every oval is clickable and allows editing corresponding sea passages (Figure 3).

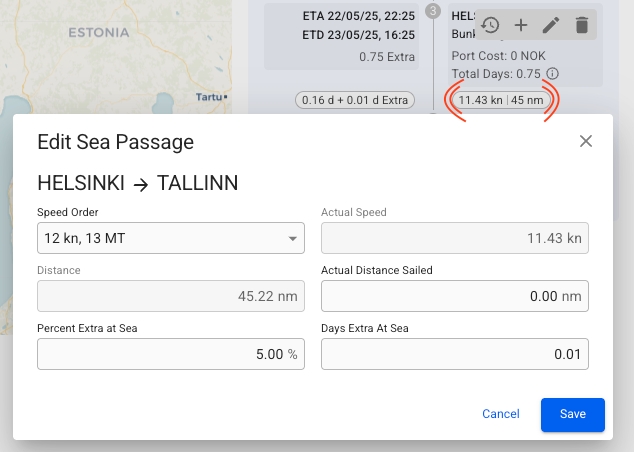

Figure 3. Edit Sea Passage

Moreover, the Port Call blocks include a small hover actions toolbar that provides the following actions on the voyage schedule sequence: show Port Cost history overview, create new Port Call to the current schedule, edit the selected Port Call, or delete the Port Call.

Hover Toolbar

When hovering the mouse over a port call in the schedule, a toolbar in the upper right will appear.

  • View and maintain port costs for the selected port.

  • To insert a port call before or after the port call you are editing, click the Create button and select Before or After. A window to create a new port call then pops up.

  • To edit a port call, click the Edit button.

  • To delete a port call, click the Delete button.

  • To change the order of port calls, simply hover over a port call to move it into place.

Figure 4. Schedule Port Call action tooltip

Edit Port Call

To edit a port call in the schedule, click the pencil icon in the action tooltip. A popup modal then shows with editable essential port call details (Figure 5).

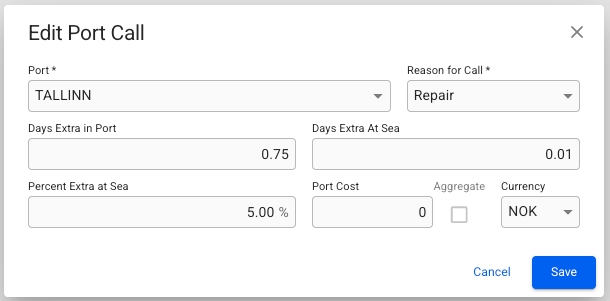

Figure 5. Edit Port Call action

Note that the port can only be changed if the Arrival-, Berthed-, and Departure Date are unfixed. If any of these dates are fixed, the port selector will only show available terminals on the currently selected port.
