  1. Fleet Allocation & Scheduling
  2. FAS: Step-By-Step Guides
  3. Fleet Plans

Scheduler Board

PreviousOpen Positions BoardNextCargo Management Board

Was this helpful?

The scheduler board gives users an overview of the voyages that need to be scheduled. It shows unallocated, allocated and nominated voyages. The allocated and nominated voyages can be viewed on the bottom half of the board (Schedule), while the unallocated voyages can be viewed on the top half (Commitments).

The board is based on a Gantt schema, with the column headers being dates and the row headers being COA and SPOT for the Commitments section and vessel names for the Schedule section. The red vertical line indicates today's date.

Commitment Bars

Commitment bars can found in the Commitments area and contain information about an unallocated voyage including Charterer, Laycan dates and Commodity. The ballast port and first loading port of a voyage can be found to the left of the bar, and the last discharging port to the right. The laycan period can also be viewed on top of each bar.

Tooltip

When hovering over a commitment bar, a tooltip will pop up with additional information about the voyage:

Schedule Bars

Scheduler bars can be found in the Schedule section and contain information about either allocated or nominated voyages, containing Reference No, Voyage Status, first Load Port and last discharge port. If the Laycan dates have been set, a Laycan indicator can also be viewed on a schedule bar. A timeline of the ballast and port calls can be viewed on top of each bar.

Tooltip

When hovering over a scheduler bar, a tooltip will pop up with additional information about the voyage:

More additional information on the voyage and its cargos are displayed in the voyage drawer. This can accessed by clicking on a commitment- or schedule bar.

Actions

The Action Bar

You can choose between the quick filters specified for 'Commitments' or the 'Schedule'. They will be filtered separately in each of their respective sections of the board:

The period selector allows you to choose the time period of your liking, to easily display the voyages of that timeframe:

Drag & Drop

It is possible to drag and drop the bars to unallocate or allocate a voyage. A scheduled voyage can be unallocated by dropping it into the commitments area. A commitment voyages can be allocated by dropping it onto an empty vessel row, or behind another allocated voyage.

You can read more about the actions here: Voyage Actions.

Highlights For The Voyage Bars

Hover State

Each of the voyage bars now have a new light grey border, and when you hover, it will be marked with a darker one to clearly indicate which one you are hovering over. The picture above illustrates the Commitment Bars, but the same applies to the Schedule Bars as well.

Active State

When selecting one of these bars, a blue and thicker border will display along with opening the Voyage drawer:

The blue border will stay active on the board until you do another action. The picture above illustrates the Commitment Bars, but the same applies to the Schedule Bars as well.

This border also displays and stays active when creating a new voyage and with the use of drag & drop of the bars.

Other general actions, you can see: Fleet Plans.

The quick filters decides the of the voyages, while the period selectors allows that the board will display.

filtering
selecting the period

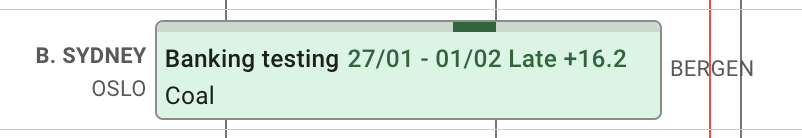

Commitment Bar

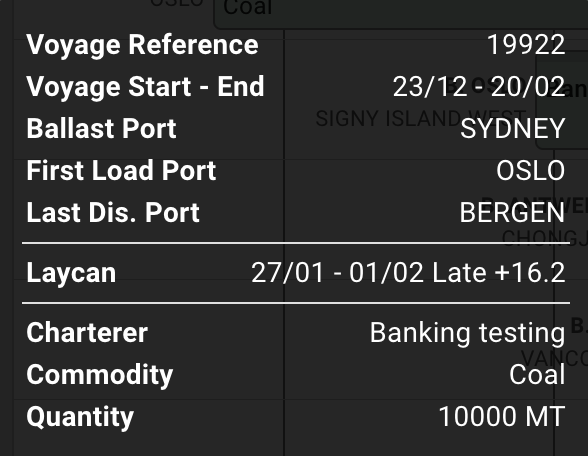

Commitment Bar Tooltip

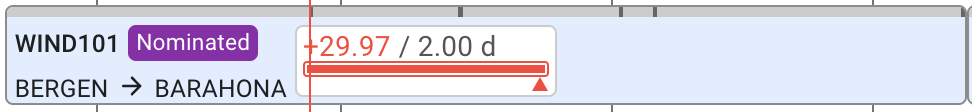

Schedule Bar

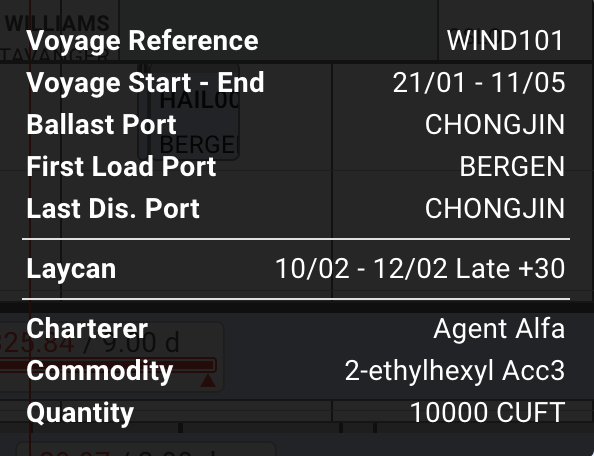

Schedule Bar Tooltip
Quick Filters in the Action Bar
Date Period Selector in the Action Bar

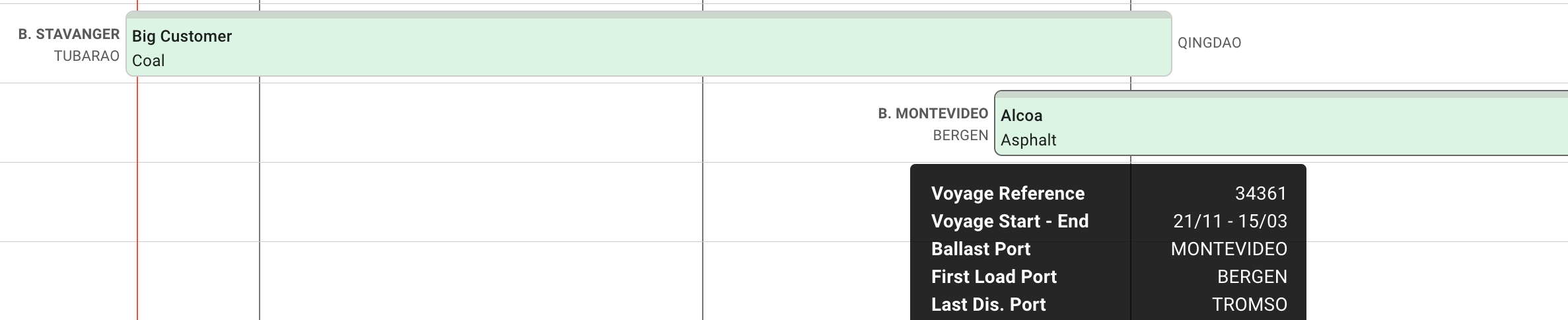

New Border to the left and Hover State Border to the right, for Commitment Bars

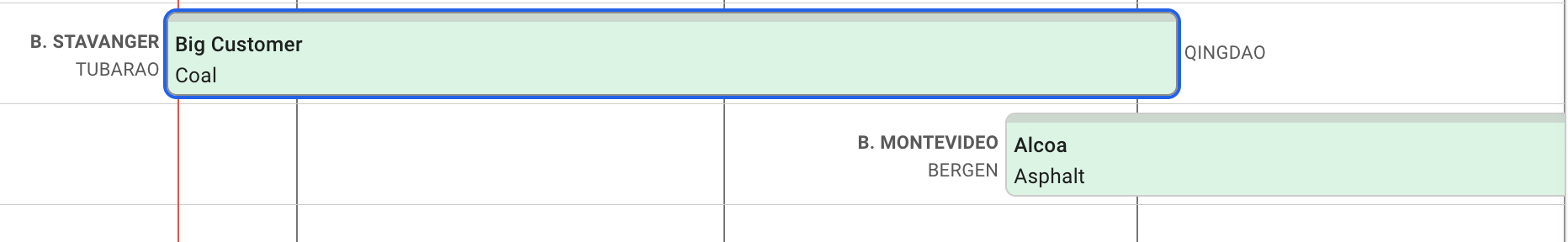

Active State Border for the Commitment Bars
