Voyage full-screen

Starting with release 8.2, the voyage drawer's default view has been updated. The previous default view has been removed, and the expanded view is now the new default (see Figure 1).

The expanded view has been replaced with a full-screen drawer, serving as a centralized hub for voyage drawer functions and introducing additional features. This view presents data in an editable grid format (see Figure 2) with customisable columns that enhance and extend the functionality of the previous default view.

For more details on the grid's functions and usage, go to the data grid page.

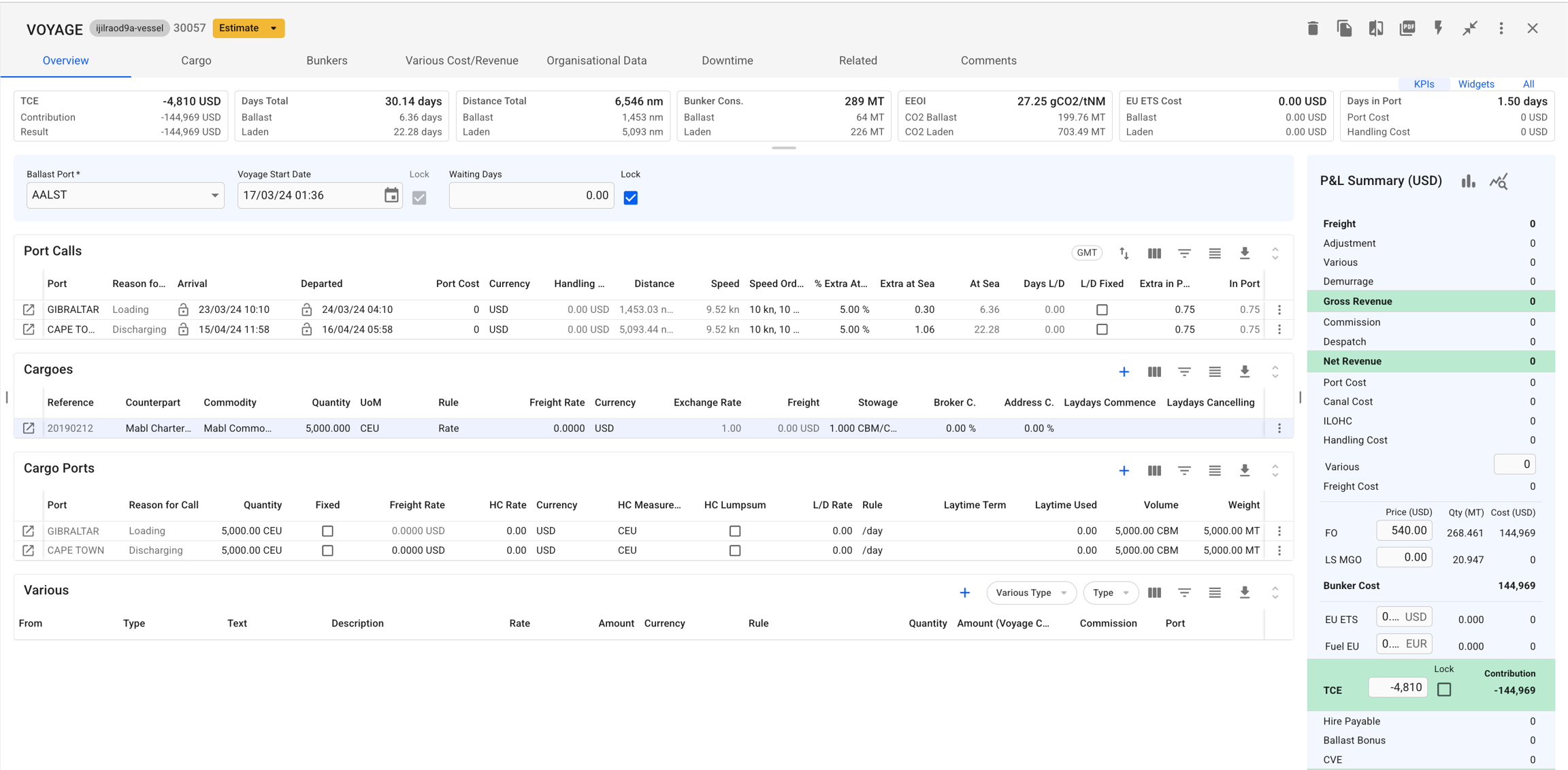

Figure 1: New default view

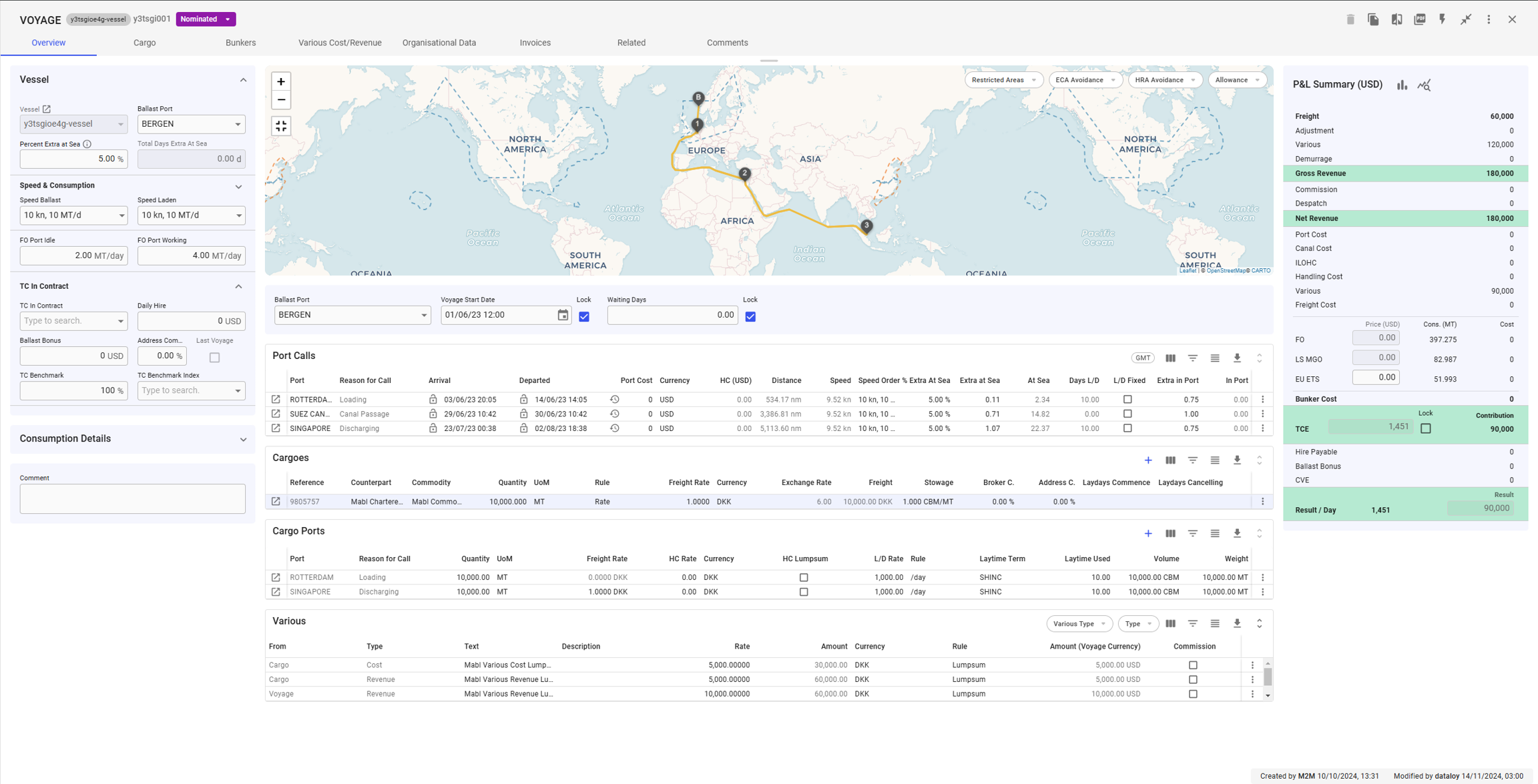

Figure 2: Full-screen drawer view

Creating, editing and deleting in the grid

Changes to the grid, such as editing fields, adding new rows, copying data, or deleting entries, are applied across the system in real time, ensuring data consistency. Updates made in the grid will automatically reflect in all related drawers and pages, and vice versa.

Main differences

The full-screen drawer is designed to make it easier to make modifications to the voyage. This was done by replacing the different collapsible sections (Figure 1) with corresponding grids (Figure 2).

The Profit / Loss Section as well as the Vessel Section remains the same with the exception of an additional collapsible section for TC Out Contract.

Map

The map has also been moved to the left side of the drawer, and when expanded will appear in the center of the drawer (see Figure 3).

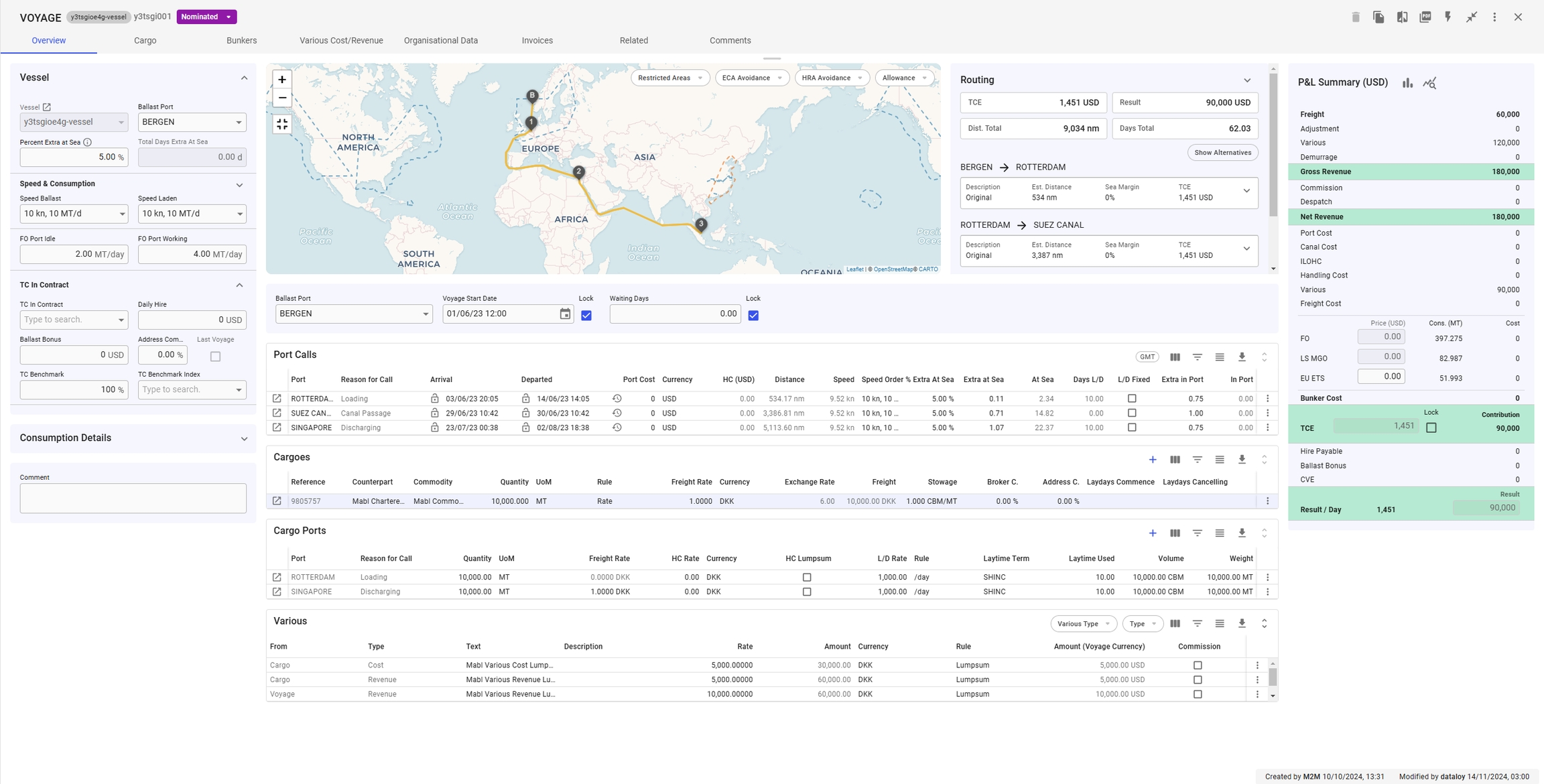

Figure 3: Full-screen expanded map

Alternative routing and system preferences

A key addition to the drawer is the ability to display an Alternative Route tab, controlled by a system preference. This setting can be enabled via the System Settings. When activated, the routing tab appears next to the map, providing easy access to alternative route options (see Figure 4).

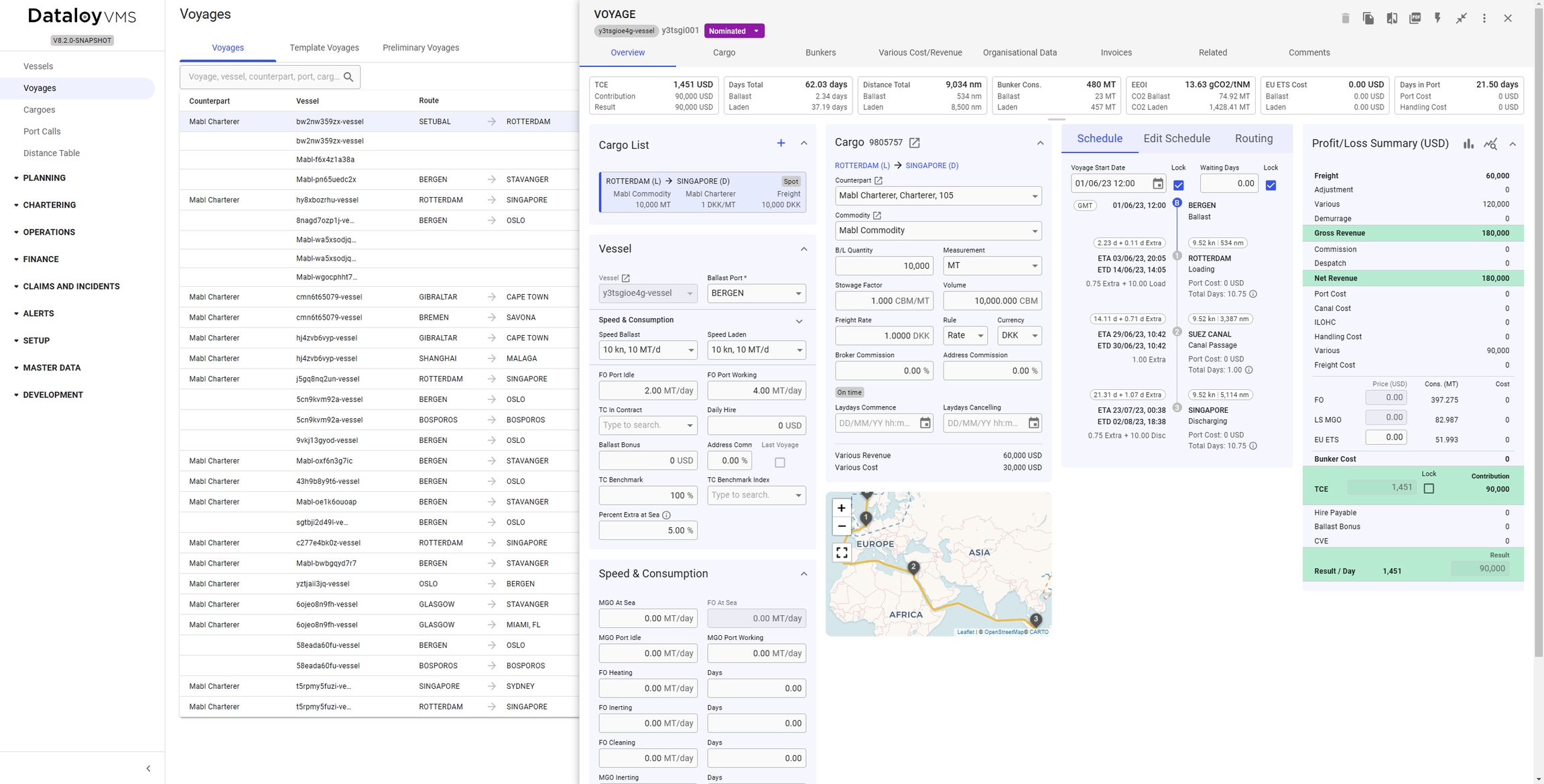

Figure 4: Alternative routing enabled

Profit & Loss Summary: Analysis and Results Chart

The Analysis and Results Chart retain their functionality from previous versions. However, they are now displayed in the center of the drawer when selected within the Profit & Loss Summary section.

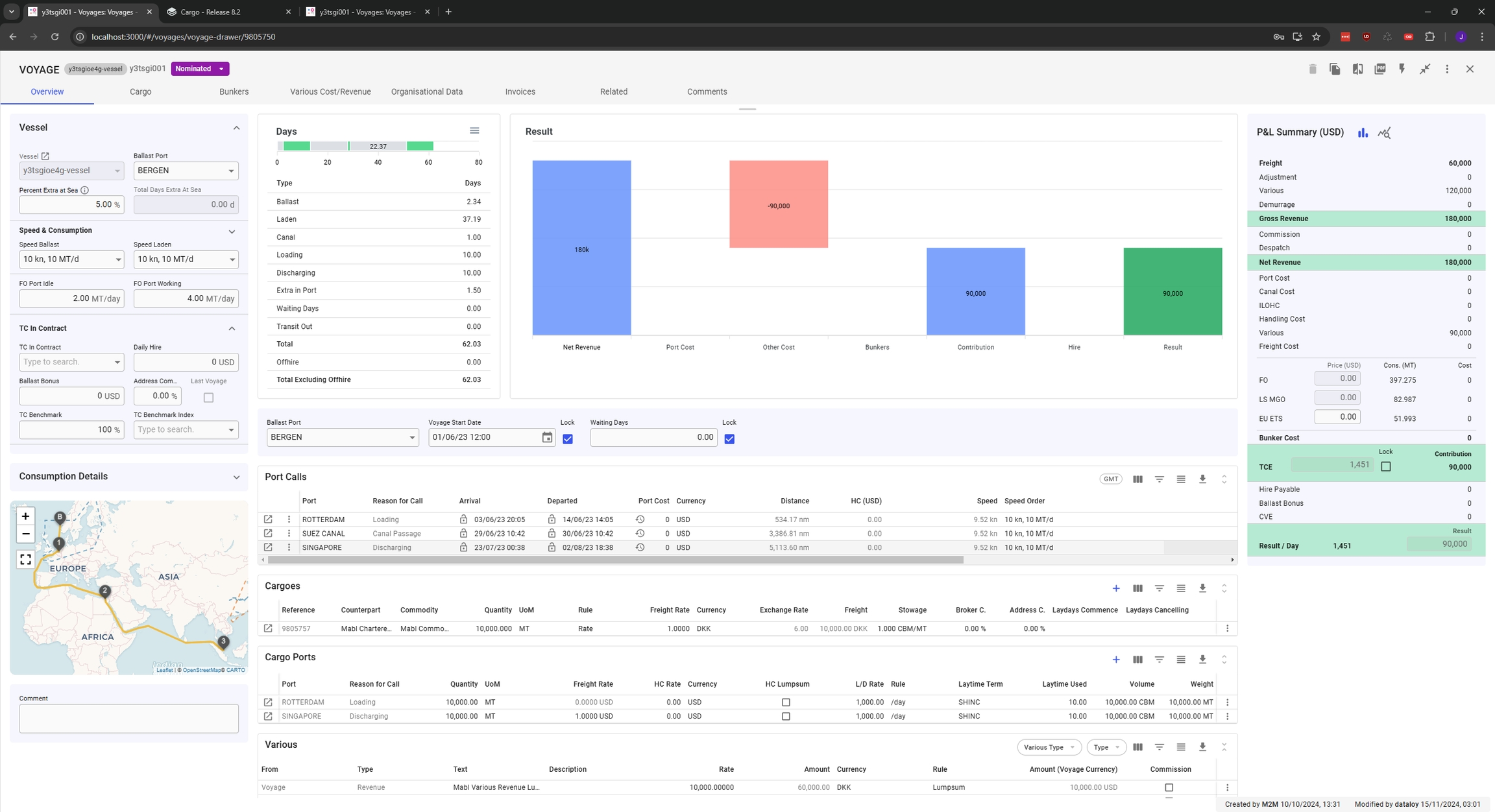

Figure 5: Results Charts displayed

View Customisation

The left- and rightmost sections can be collapsed by clicking the buttons inside column dividers, shown in Figure 6. Alternatively, the sections can be toggled using the keyboard shortcuts ALT/OPT + ← and ALT/OPT + →.

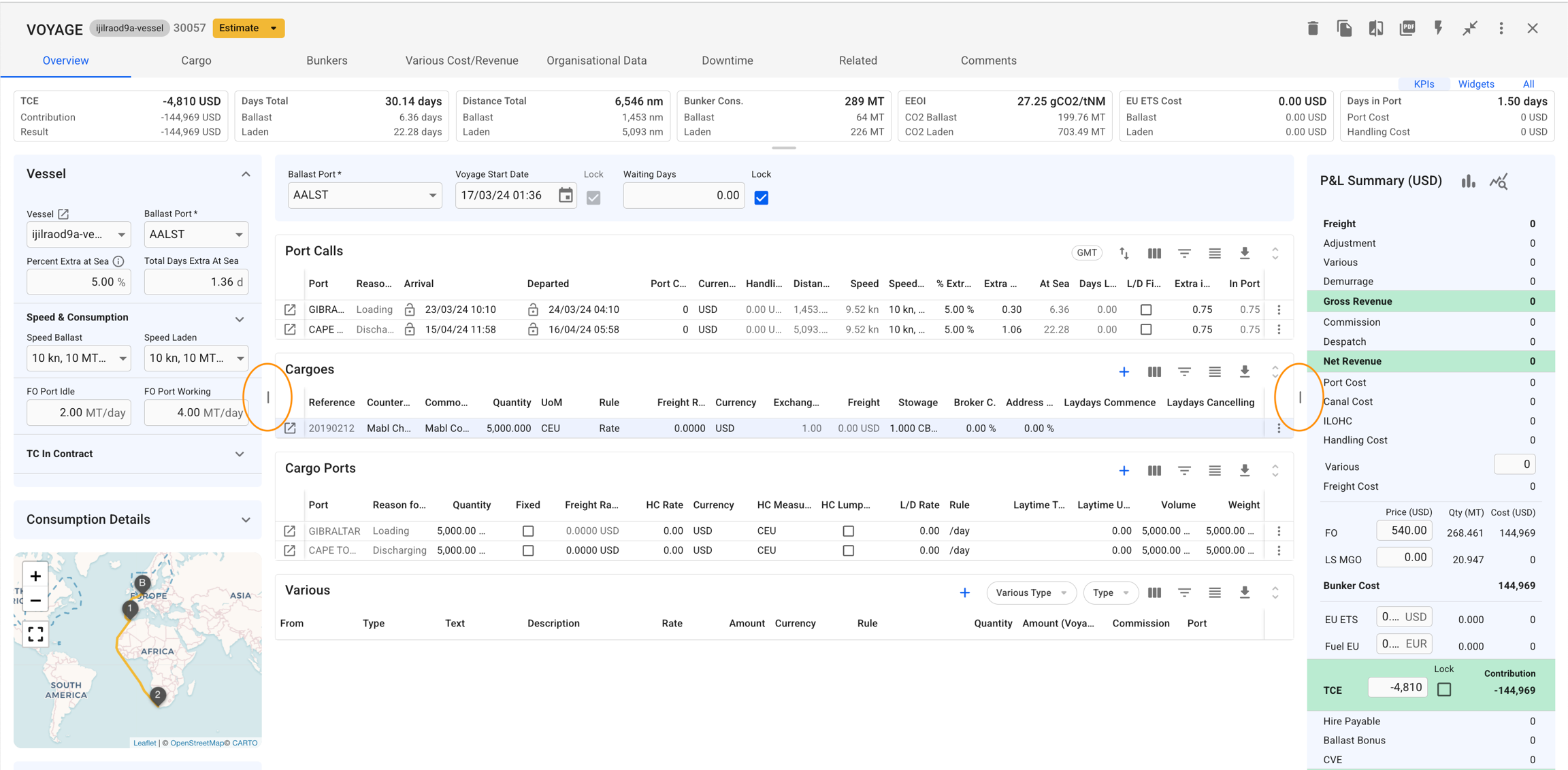

Figure 6. Toggle Section Buttons

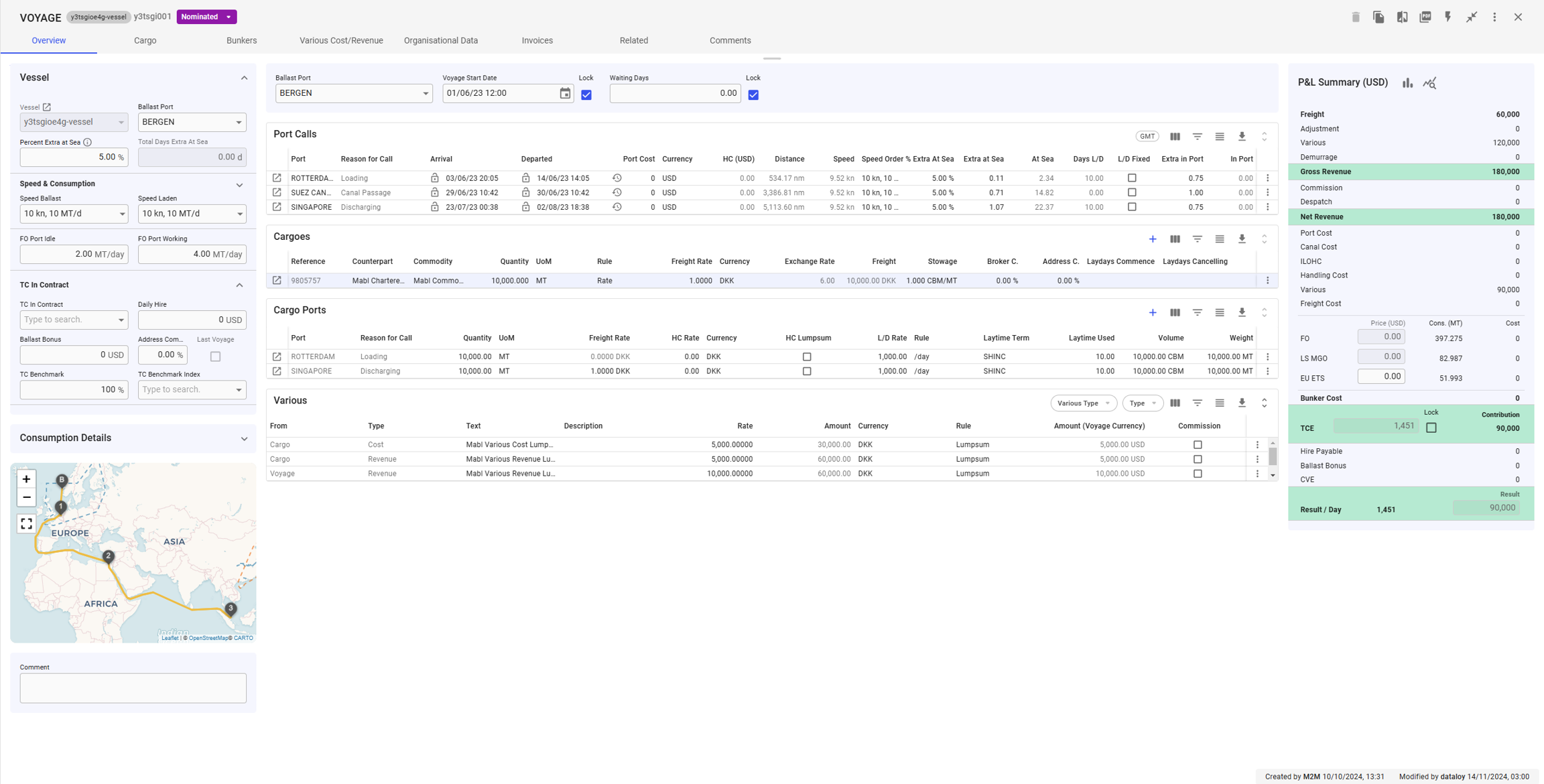

Figure 7. Drawer after collapsing left column
