# Overview

### **Main Details**

This section contains the most important information about the Downtime at a quick glance, such as the vessel, voyage and dates.

For any **non-deviation** downtime, the **Downtime Days** and **Percentage** fields are **editable**, allowing you to specify and invoice a partial downtime. For **deviation downtimes**, these fields are **automatically calculated** as a function of the additional sailing days of the deviation compared to a direct route.

![Main Details](https://1675539307-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FJhyVcvJBzVdJKycXnSTF%2Fuploads%2FcUGlZB3KP1Xh8M5BbDYU%2FSkjermbilde%202025-03-06%20kl.%2018.24.53.png?alt=media\&token=76eb4c41-4a6e-49b8-9e2e-bd48af45baf9)

#### Converting a Downtime to a Deviation, and vice versa

Any downtime created using a port call from the voyage schedule that is not a canal passage, can be converted to a deviation. In order to do so, tick the **Deviation checkbox** in the **Main Details** section. A new window will pop up, allowing you to set the end port call of the deviation.

Any deviation can be converted to a downtime by unticking the **Deviation checkbox** in the **Main Details** section.&#x20;

{% hint style="info" %}
**Restrictions for Deviation Downtimes**

* End port call must come after the start port call
* There must be at least one port call in between the port calls
* Neither the start nor the end port call can be a canal passage
  {% endhint %}

### **Result Impact**&#x20;

In this section, there are two checkboxes that indicate whether the downtime cost should be deducted from the charterer and/or owner. The **Deduct from hire receivable (charterer)** checkbox is only active if the voyage is a **Time Charter**. These fields will also enable editing in the corresponding bunker consumption tables.

### **Port Details**

Non-deviation downtimes created by selecting a **Port Call** from the voyage schedule, will display some information about the port call, such as reason for call, speed order, and bunker ROBs in the Port Details section.&#x20;

For simpler downtimes created using Port. The section will display the port name and the timezone for that port, and both fields are uneditable. When the port is an **At Sea** port the timezone offset will be editable.

<div><figure><img src="https://1675539307-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FJhyVcvJBzVdJKycXnSTF%2Fuploads%2FRC1d79pbQ34ESD5UI0Bl%2FSkjermbilde%202025-01-29%20075305.png?alt=media&#x26;token=eb3c3288-118d-438e-9015-09a9c8fc763a" alt=""><figcaption><p>Port Details when a Downtime has been created using the Scheduled <strong>Port Call</strong> option in the modal</p></figcaption></figure> <figure><img src="https://1675539307-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FJhyVcvJBzVdJKycXnSTF%2Fuploads%2F4W7sXQDOOGReQskhxlYN%2FSkjermbilde%202025-03-06%20kl.%2017.55.00.png?alt=media&#x26;token=7382c700-e476-4bac-ba8c-ff913ddfba9b" alt=""><figcaption><p>Port Details when a Downtime has been created with an <strong>At Sea</strong> Port in the Other Ports option in the modal</p></figcaption></figure></div>

<figure><img src="https://1675539307-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FJhyVcvJBzVdJKycXnSTF%2Fuploads%2FkMRmK92wcuLG8FO5ODNe%2Fimage.png?alt=media&#x26;token=7520bd53-1dfa-4729-9d4e-24a162bf31d1" alt=""><figcaption><p>Port Details when a Downtime has been created with a Port that is not At Sea</p></figcaption></figure>

### Deviation specific sections

For Deviation downtimes, the Port Details section is split in two; **Deviation Start** and **Deviation End**. With the sole exception that you are not allowed to choose a canal passage as a port call, they are identical to the Port Details section.

<figure><img src="https://1675539307-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FJhyVcvJBzVdJKycXnSTF%2Fuploads%2FgWY2hfSwmFPyBXy5y4CK%2FSkjermbilde%202025-03-06%20kl.%2018.35.51.png?alt=media&#x26;token=284d7c05-5634-4d74-b1bf-d05a72d27895" alt="" width="563"><figcaption><p>Port Details for a Deviation</p></figcaption></figure>

Below these, a table for **Deviation Details** is displayed. This table shows you the difference between a direct route between the start and end port call, and the actual voyage schedule. You can also specify a specific speed for the vessel.

<figure><img src="https://1675539307-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FJhyVcvJBzVdJKycXnSTF%2Fuploads%2FJmtoX3g10KT4vf68hray%2FSkjermbilde%202025-03-06%20kl.%2018.51.16.png?alt=media&#x26;token=9305d18a-a884-4d4b-b325-a5358557e7e4" alt="" width="563"><figcaption><p>Deviation details table</p></figcaption></figure>

### **Bunker Consumption Tables**

Two tables show information about bunker consumption for the charterer and the owner/opex. Each table contains the bunker categories used in the voyage.

For non-deviation downtimes, the quantity and price can be **edited** when **Deduct from hire receivable/payable** is checked off in the **Results Impact section** by clicking on the row.

On **deviations**, the quantities is **automatically** calculated, and cannot be changed.

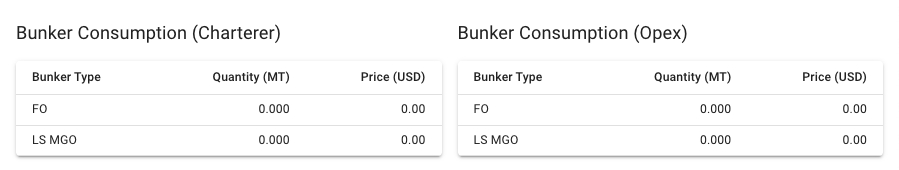

<figure><img src="https://content.gitbook.com/content/JhyVcvJBzVdJKycXnSTF/blobs/ZvKlJg6bpBTgvooaGjcb/image.png" alt="" width="563"><figcaption><p>Active Bunker Consumption Tables</p></figcaption></figure>
