# Port View Board

The Port View board gives the user an overview of the scheduled port calls in a particular port or terminal. This makes it easy to identify any overlapping or close port calls which may cause operational issues.

To get started, select a port or terminal from the selector:

<figure><img src="/files/6bq9mqODPBg750cJECxl" alt=""><figcaption><p>BERGEN selected as port call</p></figcaption></figure>

While in this board view, the timeline can also be set to display a single week at a time, in order to get a very fine-grained view:

<figure><img src="/files/1oTqvw9HO5GP6jaWV02k" alt="" width="375"><figcaption><p>Date Period Selector in the Action Bar, highlighting every hour</p></figcaption></figure>

Otherwise, you have the quick filters; Vessel, Voyage and Reason for Call.

### Port Call Bars

<figure><img src="/files/wcqBStEj8C4RUfsGsnk9" alt=""><figcaption><p>Port Call Bar</p></figcaption></figure>

On each port call bar, you will find the following information:

* Voyage reference (top left, shown in bold)
* Cargo quantity and load/discharge rate
* Arrival & departure times

#### Tooltip

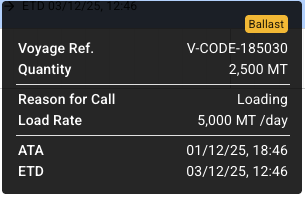

Hovering over the bar will bring up a tooltip containing some additional information:

<figure><img src="/files/cLGh7xa1hexbr0quJsLM" alt=""><figcaption><p>Port Call Bar Tooltip</p></figcaption></figure>

### Actions

You will still have the following actions:

* the *period selector* action as displayed [here](/release-8.25/fleet-allocation-and-scheduling/getting-started/planning/fleet-plans/gantt-board/scheduler-board-actions.md#the-action-bar) (but the modified version, as mentioned above)
* the *FAS date filter* as described [here](/release-8.25/fleet-allocation-and-scheduling/getting-started/planning/fleet-plans/fas-actions.md#fas-date-filtering)&#x20;

{% hint style="info" %}
Note that **drag & drop** is not enabled in this view.&#x20;
{% endhint %}


---
