# Voyage Map

The voyage map shows the voyage schedule, including alternative routing points![](/files/27LOBj6BO8DJ8LgN5iqc)that can be added to the schedule between port calls. More routing points will be revealed as you zoom in on the map.

### Viewing routing points

Click on a routing point<img src="/files/27LOBj6BO8DJ8LgN5iqc" alt="" data-size="line">to show information about the point in a popup, including name, position, and GMT offset. When a routing point is clicked it will also be possible to add the routing point to the voyage route. When clicking 'Add to route', a pop-up will appear where you have to choose between which port calls the routing point shall be added.

### Remove existing routing points from the Voyage route

Routing points that are on the voyage can be removed. When clicked, a button will become available 'Remove from voyage route'. When this is clicked, a confirmation box will appear. When confirmed, the routing point will be removed from the voyage.

### Restricted areas

The interactive Voyage Map features several restricted areas:

1. <mark style="color:blue;">Emission Control Areas</mark>
2. <mark style="color:red;">Open Loop Restricted Areas</mark>

Restricted Areas are visible on the map and depicted by <mark style="color:blue;">Blue</mark> or <mark style="color:red;">Red</mark> dashed lines (See Figure 1).

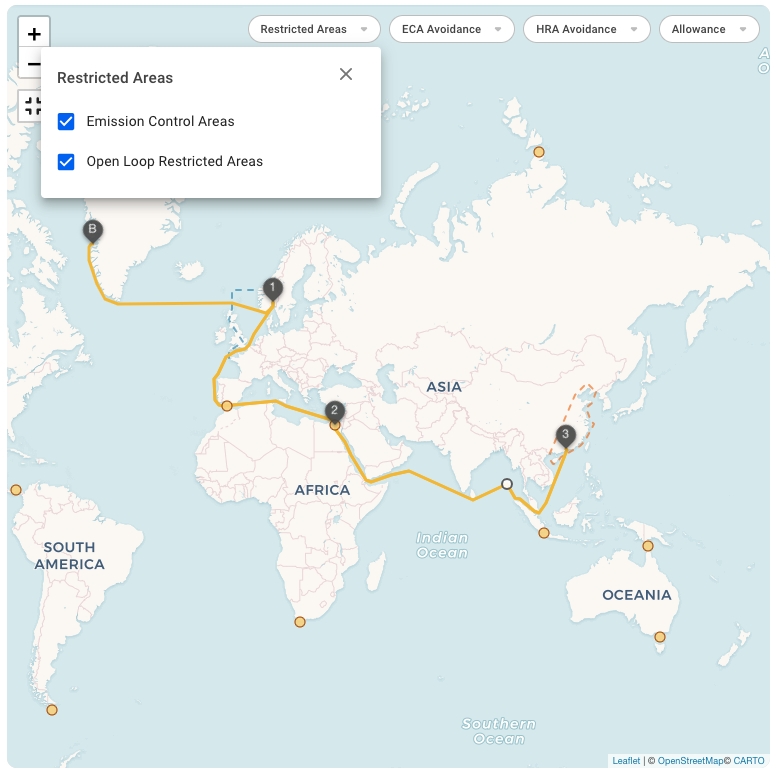

<figure><img src="/files/PasXl8mlOcJLwKJrrVq4" alt=""><figcaption><p>Figure 1 - Restricted Areas on Voyage Map. </p></figcaption></figure>

The leftmost dropdown filter allows changing the settings to include the particular group of *Restricted Areas* in the map or not.


---
