In the various Cost/Revenue Tab there will be two tables. One table for various cost and one for various revenue.

To add a Various Cost click the blue plus icon in the top right corner. Once clicked the below modal will appear.

Once the required fields are filled in the create button will be activated and you can create the Various Cost.

To add a Various Revenue click the blue icon in the top right corner. Once clicked the below modal will appear:

Once the required fields are filled in the create button will be activated and you can create the Various Revenue.

To delete either a Various Cost or a Various Revenue select the item from the table by clicking the checkbox on the far left side.

Once one or more items are selected you can click the trashcan to delete the selected item(s).

In the Sub-cargoes tab you may enter sub-cargoes

By clicking the blue plus icon in the top right corner you can create sub-cargoes.

Once clicked the below modal will appear:

Once the required fields are filled in the create button will be activated and you may create the sub-cargo. The modal for editing a sub-cargo is identical.

At the top of the drawer you can find a dropdown menu with available statuses for a cargo, which will open by clicking on the current status:

The cargo status is a helper for you to understand where in the process you are. All statuses apart from 'Clean Fix' are the same in the sense that they do not change the functionality of the system. When you set the cargo status to 'Clean Fix', the Cargo Quantity in the Cargo drawer changes to be B/L Quantity. Meaning, when changing the Cargo Quantity on a 'Clean Fix"'cargo, it only changes the B/L Quantity, and not the Booked Quantity.

Transitioning the Status to 'Loaded':

For a cargo, you can change the status to 'Loaded' only from the status 'Clean Fix'. You are also able to change back to 'Clean Fix' from the status 'Loaded'. The same Deadfreight/Overage, Booked Quantity, etc. calculations will happen when in these two statuses. Likely, this status will be used to mark the last transition of a cargo.

When Nominating a Voyage

All cargoes on a voyage will have their status changed to 'Clean Fix' when the voyage is changed to 'Nominated' status. The only exception to this is if the cargo already has status 'Loaded'.

In the Commissions tab you can create new commissions by clicking the -icon to open a dialog to enter values, where "Broker" is mandatory:

Once clicked the below modal will appear:

Once the required field is filled in the create button will be activated and you can create the new Commission, which then will appear in the table in the Commissions tab.

KPIs

At the top in the main details you will find the KPI-cards.

• First tile: Cargo quantity is the actual quantity, and booked is the booked quantity.

• Second tile: Freight is the total freight for the cargo.

• Third tile: Commission and various costs.

• Fourth tile: Net Fio is all cargo related revenue aggregated and then deduct all aggregated cargo cost - divided by the quantity of the cargo.

Main Cargo Details

Below the KPI tiles is the Main Cargo Details section on the left side:

All fields that are enabled can be changed from this view. The following fields and options may be disabled under certain circumstances.

Overview of Fields:

Stowage

Below Main Cargo Details section, there is a section for inputting fields and checkboxes regarding the stowage values of the cargo:

Cargo Port Timeline

Below the KPI-cards on the right side is the Cargo Port Timeline together with LayCan dates. Laytime used is the estimated laytime allowed. The date fields are validated and if the validation fails the date field that needs to be corrected is highlighted in red and there is a short message under the date field indicating what is wrong.

Editing a Cargo Port will give you access to a few more fields, for instance Handling Cost, Laytime Terms and related fields.

On the left side of the tab below the Main Cargo Details is the Stowage section

Bunker Adjustments

On the right side, below the Cargo Port Timeline section, you can create/edit and view a list of Bunker Adjustments on the cargo:

For both of these options you will be able to choose the bunker types: DL (LS MGO), DO (MGO), FL (LS FO) or FO. You can also input/edit the other fields, such as: Min Price, Max Price, Adjustment Factor/Agreed Consumption and Price. The Price field is still editable even though the input of the Min-/Max Price fields calculates the average price.

The total adjustment is calculated if the price is outside the minimum/maximum range, i.e:

• Min range: 500, Max range: 550, Price: 600 => Positive adjustment

• Min range: 500, Max range: 550, Price 400 => Negative adjustment

This calculation you can see as the price value in the second KPI tile by the last field called Bunker Adjustment:

Overview of Fields:

Miscellaneous

On the right side, below the Bunker Adjustment section, you can enter external reference, Trade, Cargo Text, Comment, Company, Business Unit and Cargo Operator:

Relets and Transshipments

At the bottom of this tab there is be a list of Relets and Transhipments for the cargo:

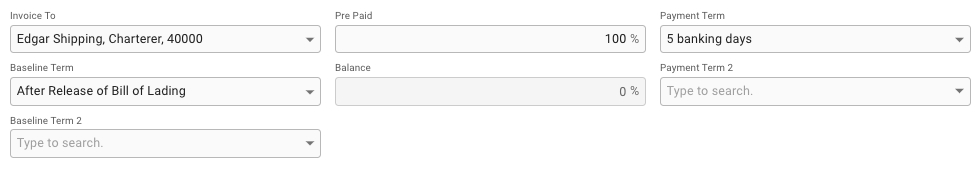

In the Payment Terms tab you can enter the payment details as per above fields.

In the Freight Rate Tiers tab, you can create, edit and delete different freight rate tiers for the cargo. It is also possible to choose between a tiered and a volume rate model.

Tiered: In tiered pricing, the per-unit freight rates are assigned to quantity-based ranges (tiers). When calculating the total freight, quantities are purchased from successive tiers, starting from the lowest. Example: In the below example, a cargo of 8000MT would have a freight rate of 11 USD for the first 4999MT and a freight rate of USD 12 for the remaining 3001MT. The freight rate will show as a weighted average on the cargo.

Volume: Here too, the freight rate is quantity-based. However, the per-unit freight rate is dependent on the range within which the total quantity falls. So, under this model, you would define the quantity ranges and the per-unit freight rate for each. Example: In the below example, a cargo of 8000MT would have a freight rate of 12 USD for the entire quantity.

If a cargo has one or more tiers in this section, the Freight Rate and Rule field in the Main Cargo Details section will be uneditable. Rule will also be changed to Rate.

To delete one or more tiers, click on the checkbox mark on the left side of the list. Doing so will bring up the button to delete the tiers. Clicking on the button will bring up a confirmation modal.

In the comments tab there is a list of previous comments made, and at the bottom you can add new comments.

When you open the cargo drawer this is the top section of the drawer.

By clicking the various tabs you get the relevant information about the cargo. Check out the next pages for information about the different tabs.

On the left side you will see the cargo reference, status of the cargo, and if it is a spot or CoA cargo.

On the right side you have primary actions; PDF and copy. The three dots is a dropdown with secondary actions for the drawer. If you click the three dots you will be presented with the below view as a drop down:

You can allocate/unallocate the cargo.

You can delete a cargo.

You can arrange Tranship, Preship or Transfer the cargo.

You can also connect the cargo to a CoA and remove the CoA connection when connected.

And finally you have the option to view the audit log or append attachments to the cargo.
