To copy any vessel, open the Vessel drawer and click the More button in the top right to bring up the menu.

Clicking Copy Vessel will open a Copy Vessel modal where you are prompted to enter a new name for the new copy.

When you click Create, the data from the original Vessel will be copied over to the new Vessel, with a few exceptions.

Voyages & Port Calls

Voyages and Port Calls will not be copied to the new Vessel.

Main Vessel Description

IMO Number will not be copied to the new Vessel.

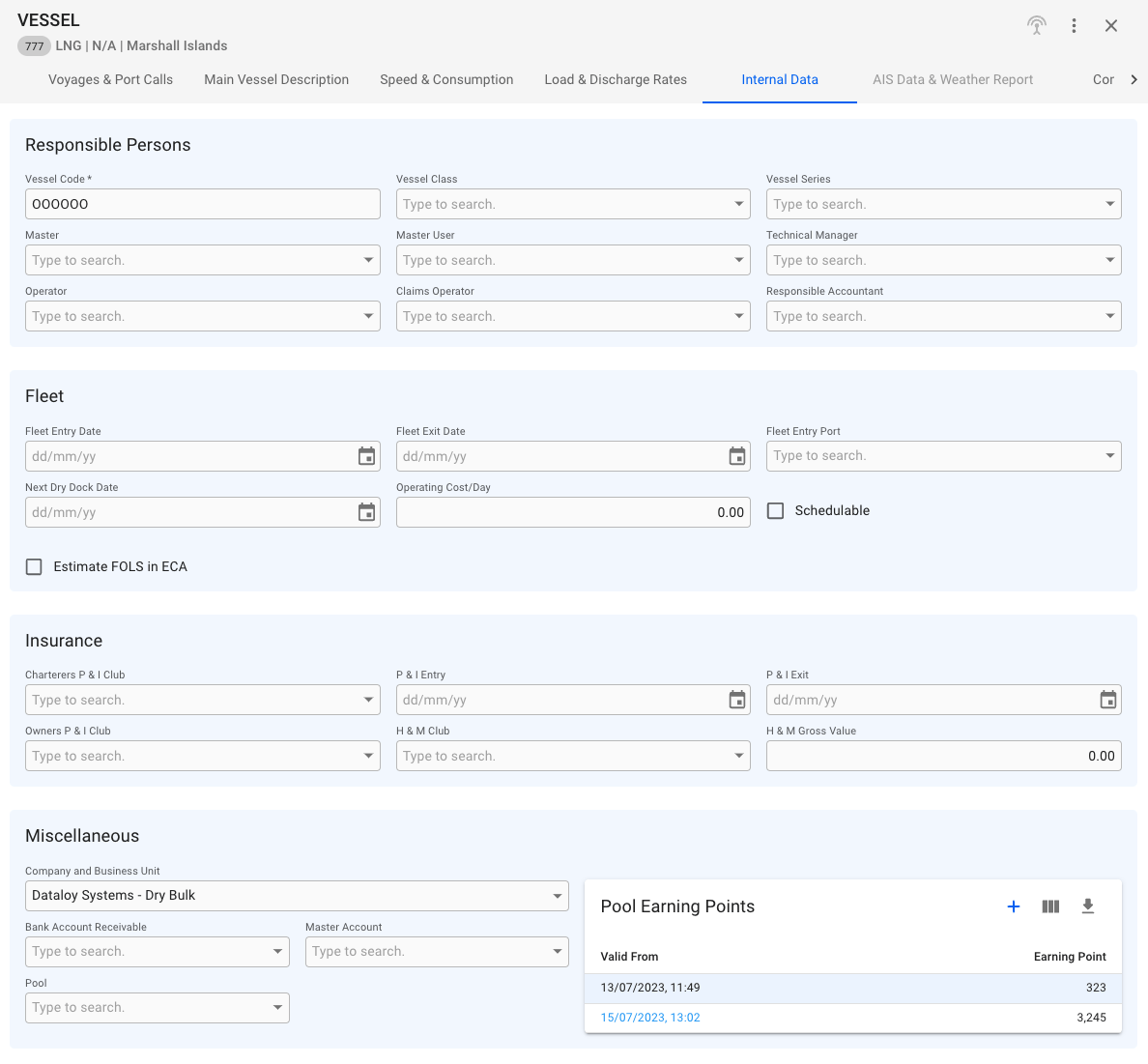

Internal Data

The internal data of the copied vessel will be given default values for some fields like company, business unit, vessel code and vessel class.

The vessel code will be set to the unique key value for the Vessel, used by the API.

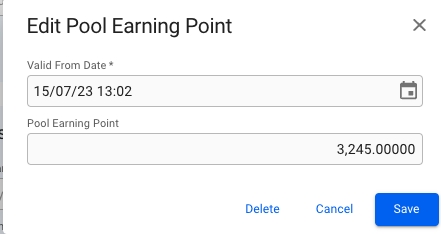

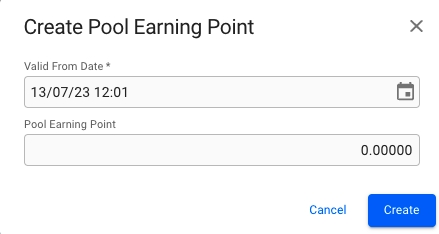

Pool and Pool Earning Points will not be copied to the new Vessel.

Welcome to the main source of information on the Dataloy product suite.

1. Open the Vessels module in the Core menu in the top left corner.

2. Click Create Vessel in the top right corner.

3. Fill in all required fields listed below in the Create Vessel window.

Required fields:

• Vessel Name

• Vessel Type

• Vessel Code*

*The Vessel Code field is only visible and required if you have ticked off the "Set vessel code" checkbox. If the checkbox is not ticked off, a Vessel Code will automatically be generated for you.

Depending on your access permissions the list of Vessels might not be visible.

Open the Vessels module in the Core Menu list on the top left corner.

There are several options available for you to narrow down what you include in the list view, including a "My Vessels" filter that shows all the vessels of which the logged-in user is set as one of the following:

• Master User

• Responsible Accountant

• Operator

• Claims Operator

You can also of the Vessels list to add, reorder or hide columns. The columns Operator, Built, and Schedulable are hidden by default.

Vessels List Tabs

On top of the list, you may find three tabs: Operative, Archived, and Map. The two first tabs illustrate pre-sorted data based on the fleet exit date parameter. The Map includes an interactive map with the current vessels' location.

Moreover, filters found on the same line as the tabs, apply to both tables. If you switch between tabs, the filters will remain the same, facilitating navigation.

Operative

A click on the Operative tab will load a table, that contains only operable vessels. In other words, the vessels whose fleet exit date is either not set, or set in the future.

Archived

On the other hand, the Archived tab presents vessels whose fleet exit date is older than the current date (fleet exit date was in the past).

In the "Voyages & Port Calls" section of the vessel drawer, you will find the most important information about a vessel and its voyages.

Vessel Details

The "Vessel Details" section shows data about the vessel such as DWT summer/tropical and draft. Click Expandto show contact information for the vessel.

Voyages

This is a list of voyages on the opened vessel sorted by newest first. If there is an ongoing voyage in the list, it is indicated with a blue marker on the left side, and it's Port Calls are shown in the list below.

When clicking the reference number of the voyage, the voyage drawer will open. If the voyage does not have a reference number, a text value displaying 'Missing' will show instead. This is also clickable and will open the selected voyage.

Clicking on the voyages, except from the voyage Ref. No, will list all port calls of the selected voyage, as well as the next and previous voyage below. The next and the previous voyages' port calls will be a lighter text color to make them separable. Clicking on port calls in the list opens the corresponding port call's drawer where you can make changes.

Voyages & Port Calls under Vessels List

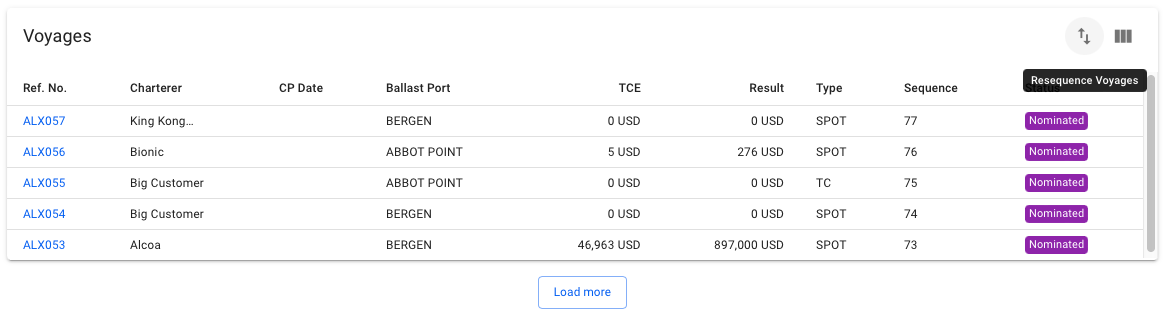

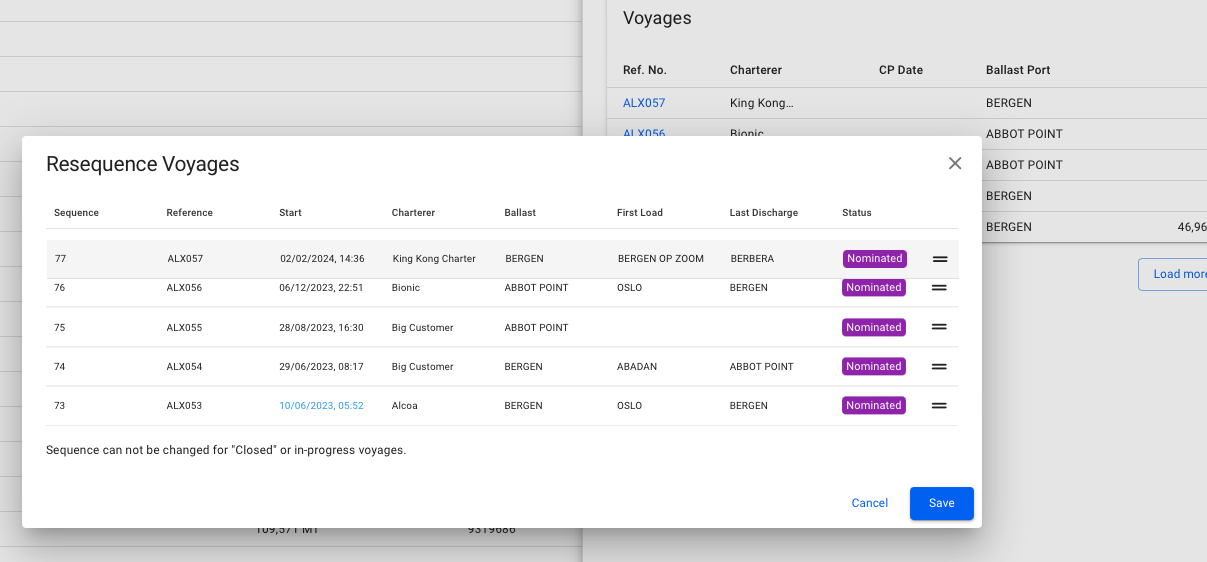

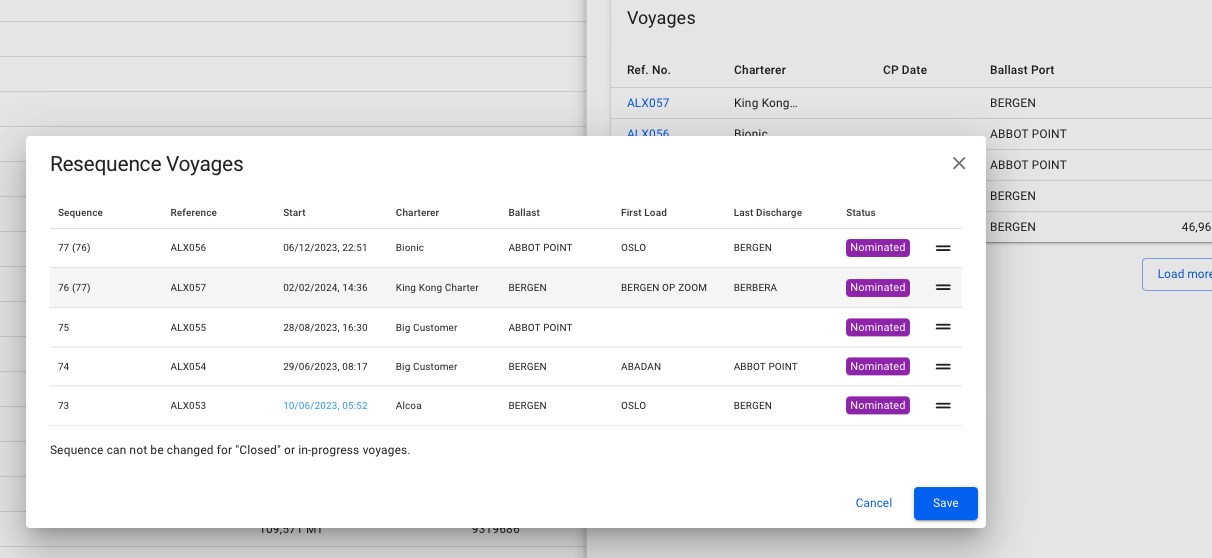

The re-sequence feature enables reordering the list of voyages assigned to a vessel (see Figure 1). To utilize the feature, click Vessels, select the one that requires reordering, and click the Two-way arrow icon in the newly appeared window on the right.

The user can now drag and drop the voyages to re-order them in the desired order. For example, Figure 2 illustrates Item 77, which is being dragged down. It is expected that the item will have replaced Item 76 after release.

Next, the result after the aforementioned release is presented in Figure 3.

Any voyages that will have their sequence number changed, will have their previous old sequence number parenthesized.

The Save button updates Fleet Plan Voyages and saves the new appearance of the Voyage List.

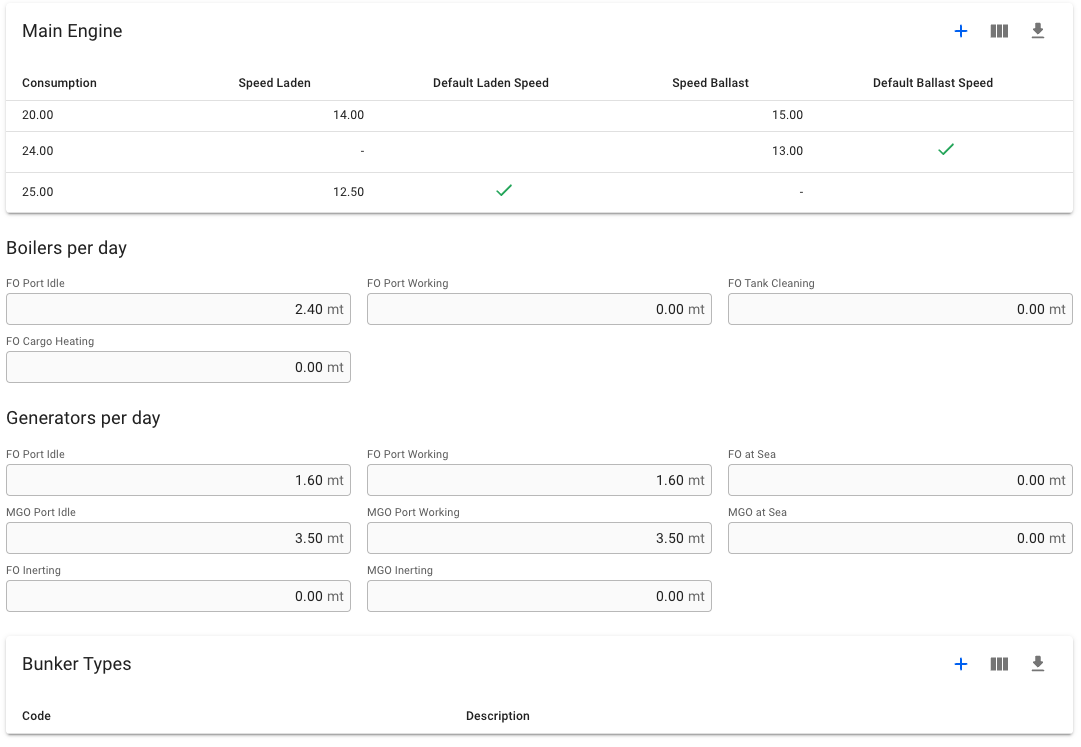

To add a Main Engine Speed to a vessel, navigate to the section of the Vessel drawer.

In the Main Engine table, click Add Main Engine Speed and fill in the fields.

You can add multiple speed and consumption data, for example one speed order for full speed and one for eco speed.

An entry to the speed and consumption list may be the default laden and default ballast speed, but the Vessel may only have one of each.

Depending on your access permissions the list of voyages might not be visible.

The "Voyages" module can be located from the left side menu.

There are several options available for you to narrow down what you see in the list view.

General info

The Bunker Stock list can be found in the Voyage drawer under the tab called Bunkers.

Opening Balance

Each list starts with the opening balance of the stock. The opening balances displays the balance of the bunker stocks at the beginning of the voyage and are generated based on the previous fixed voyage. When creating voyage estimates the opening balances are generated based on the last fixed voyage on the vessel.

Opening balances can be updated on voyages with status Estimate or Unallocated to be able to do quick calculations. Once a voyage i fixed the opening balance will be recalculated based on the previous fixed voyage and will no longer be editable.

Opening balances are also editable on voyages where the voyage start date is fixed.

Edit opening balance

To edit an opening balance on voyages where this is enabled,

• click on the opening balance row and a modal with the editable values will appear

• edit the values

• click Confirm to save your changes

Add opening balance

It is possible to add additional opening balances for each bunker category on voyages that have the status Estimate or Unallocated and for voyages where the start date of the voyage is fixed.

To add an opening balance:

• in bunker stocks list click on the Add Opening Balance button located above the bunker stock list for a given bunker category

• enter the values

• click Confirm to save the opening balance

The new opening balance will be added after the last existing opening balance in the list.

1. Open the Vessels module in the Core menu in the top left corner.

2. Find your selected vessel.

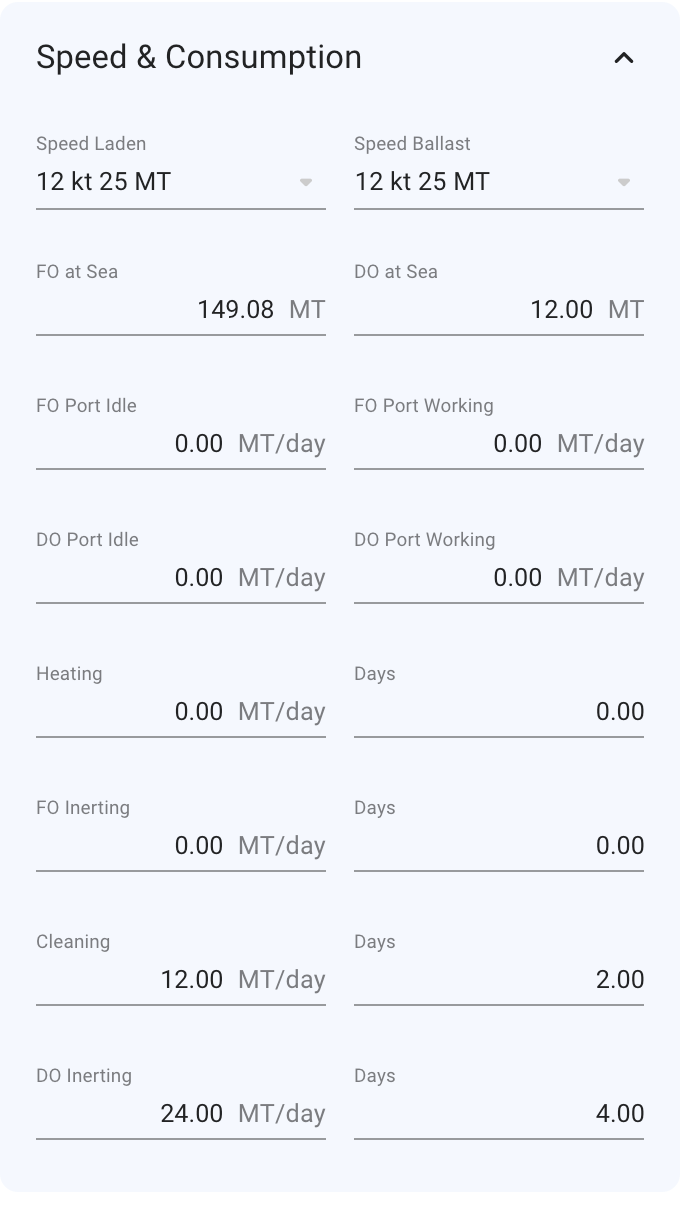

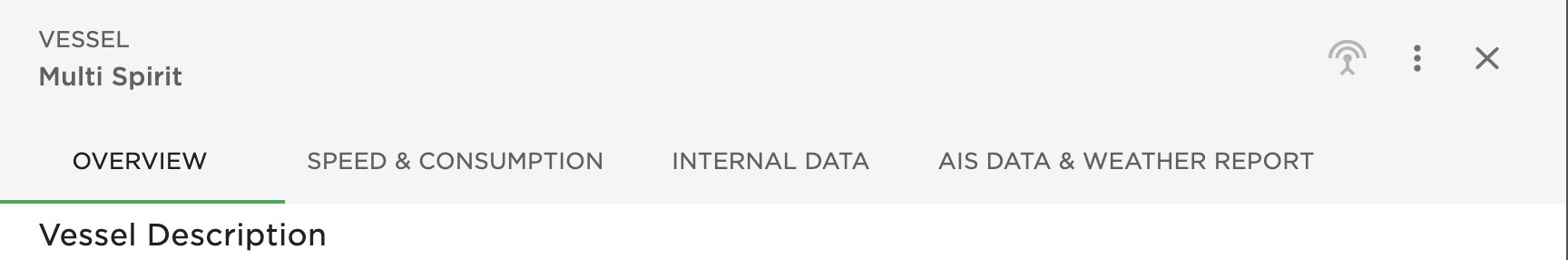

Vessel "Speed and Consumption" data can be accessed in the top tab menu. Details can be maintained directly in the fields or from the table actions.

To add a Bunker Type to a vessel, navigate to the section of the Vessel drawer.

In the Bunker Types table in the bottom of the drawer, click Add Bunker Type and fill in the fields.

To delete a bunker type, simply click on it in the Bunker Types list, and click the Delete button.

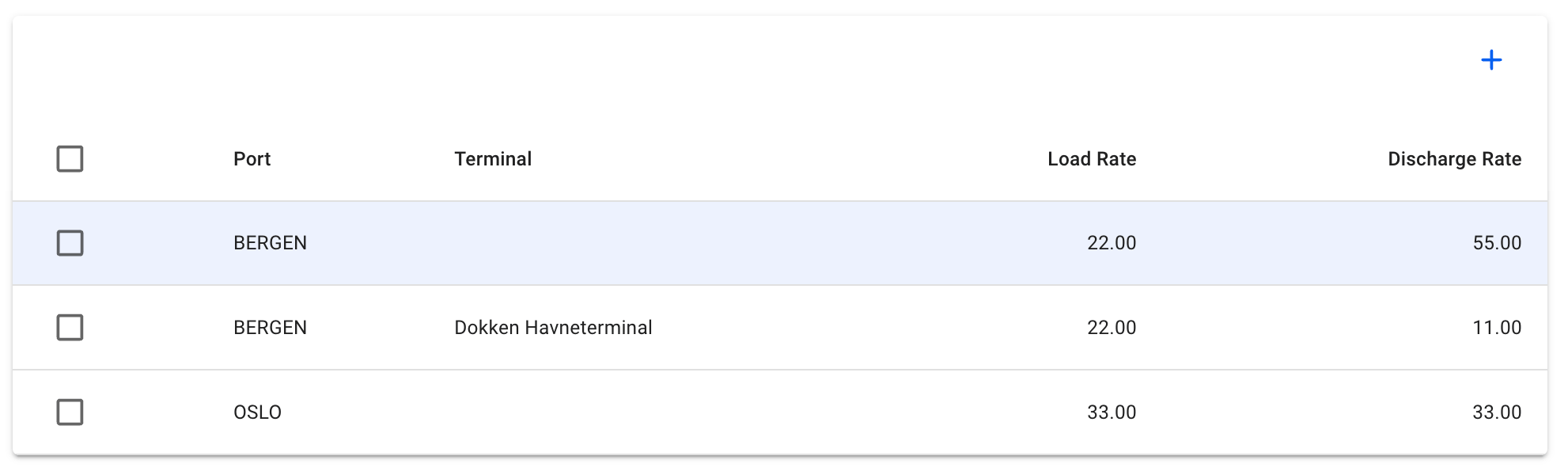

The Load and Discharge rates section is an an overview of the load and discharge rates applicable for ports and terminals. It must not be mixed with the vessels' max load and discharge rates.

1. Open the Vessels module.

2. Open the vessel drawer

Vessel "Load & Discharge Rates" data can be accessed in the top tab menu. Details can be maintained directly from the table actions.

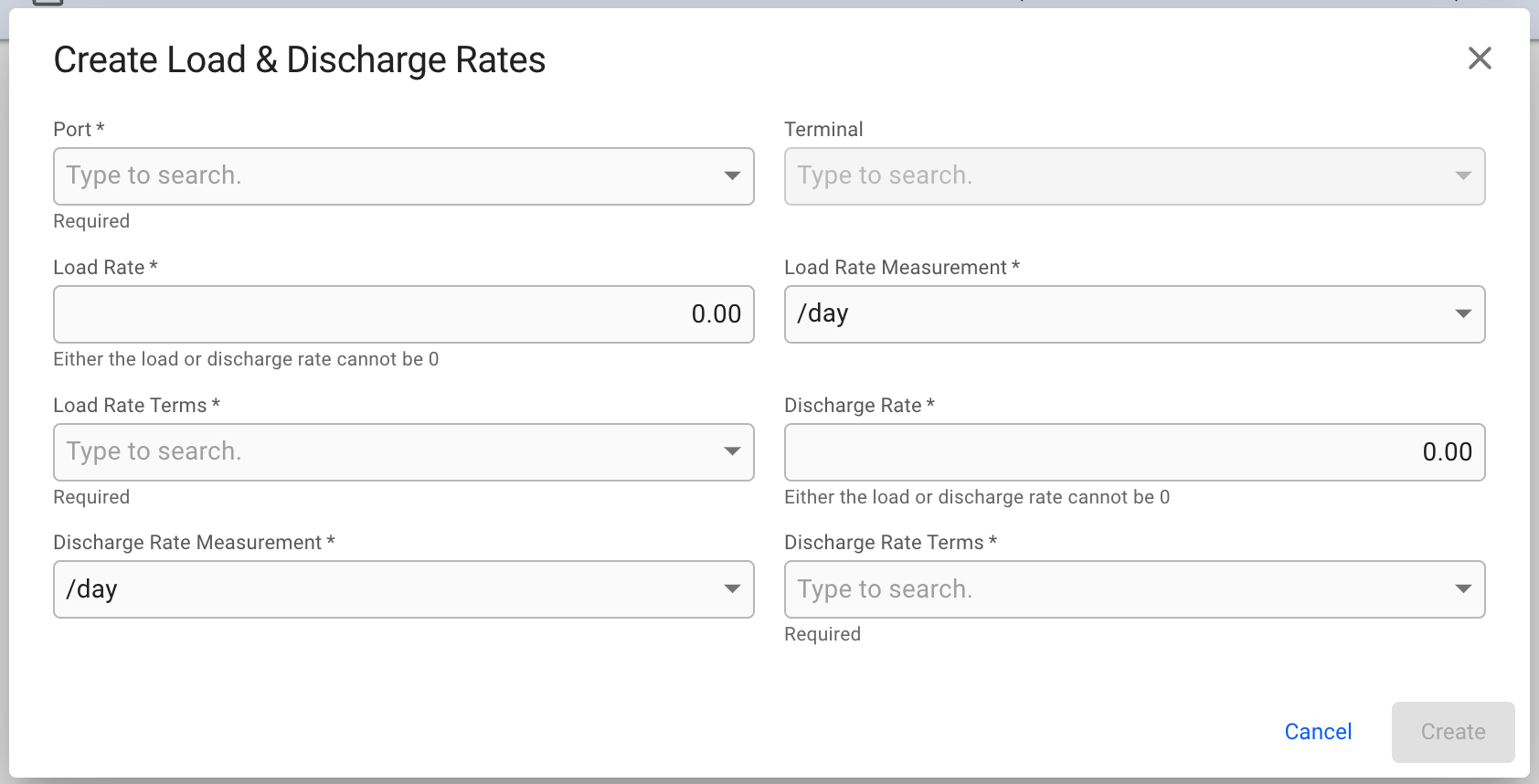

To manage load and discharge rates on a vessel for selected ports and terminals, navigate to the section of the Vessel drawer. Use the table in the tab to edit, delete or add a new rate.

Actions

Create

Edit

Click on a row to edit and use the modal to make changes.

Delete

From the "Related" tab in the voyage drawer, you can view the voyage related information Offhire, Laytime Calculation, and Bunker Transaction. Expand a section by clicking the arrow on the top right of each section to view a list of information. Click on an item in the list to go to the the corresponding drawer and view more information about the specific item.

Offhire and Laytime Calculations

Expand the section and click the pluss-sign to the top right of the list to create new item for the voyage.

More details about creating Offhires: Create Offhire.

More details about creating Laytime Calculations: Create Laytime Calculation.

In the voyage drawer at the vessel section you will find a checkbox for setting "Last Voyage for Current CP". This checkbox is disabled when there is no TC In Contract registered.

From the voyage drawer it is possible to change the status of the voyage by using the status chip next to the reference no at the top of the drawer.

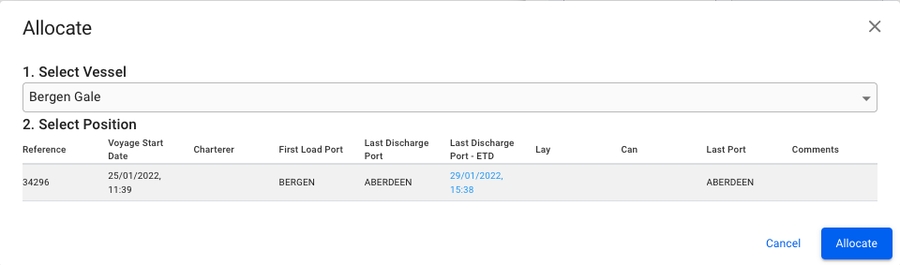

From Estimate to Allocate:

When changing status from estimate to Allocate, the following modal will show, where you have to select the vessel, and if you want, you can manually change the position. It will by default be put last.

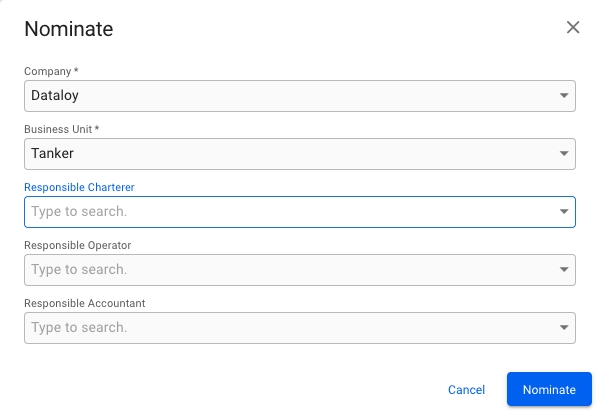

From Estimate to Nominated:

When changing status from Estimate to Nominated, the following modal will show. If it is a TC voyage with missing laycan on the TC, you will have to fill in the layCan as well.

1. Open the Vessels module in the Master Data section.

2. Open the vessel drawer

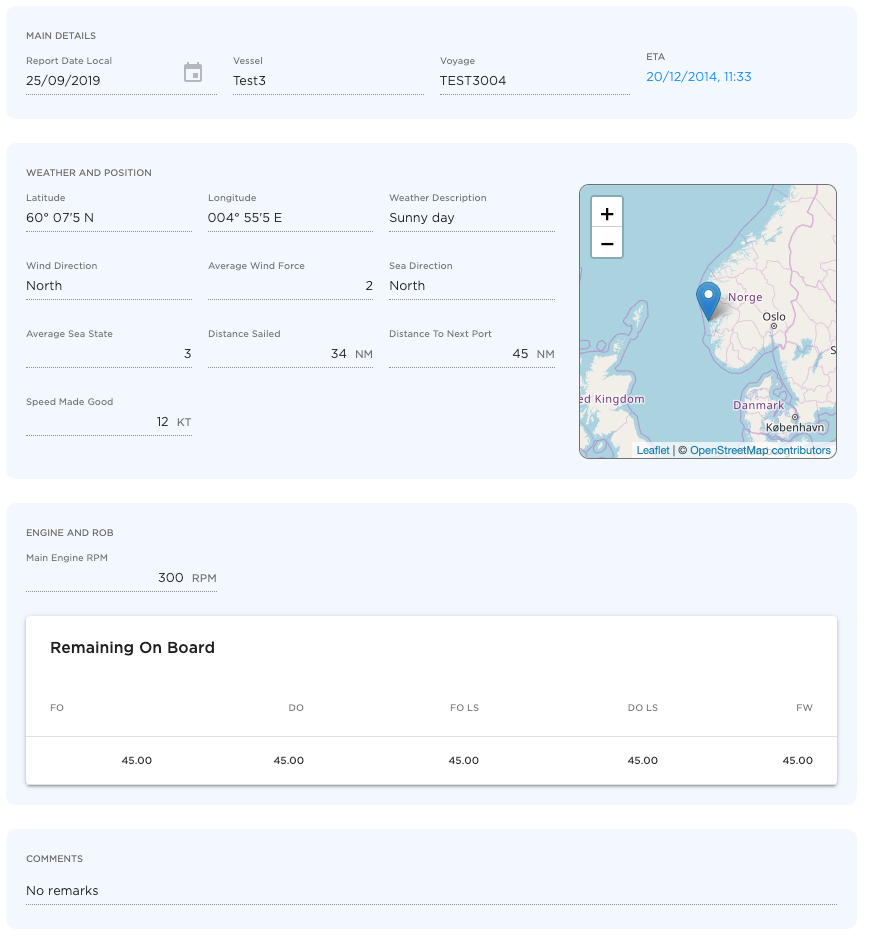

Vessel "AIS Data and Weather Report" data can be accessed in the top tab menu.

For the tab to be enabled an AIS position has to be available.

In the vessel drawer on the top right side there is a small map displaying the vessels last known position. This position is retrieved from AIS-positions for vessels which are subscribing to this feature, for vessels which are not subscribing the latest position is retrieved from the latest position report entered in the system. In addition to this you can now view the route from Dataloy Distance Table from previous port to next port displayed in the same map. The route is the green line in the map.

From the "Related" tab in the voyage drawer, you can view, add and edit . Expand the collapsible section titled Laytime Calculation and click the Create button to add a laytime calculation for the opened voyage.

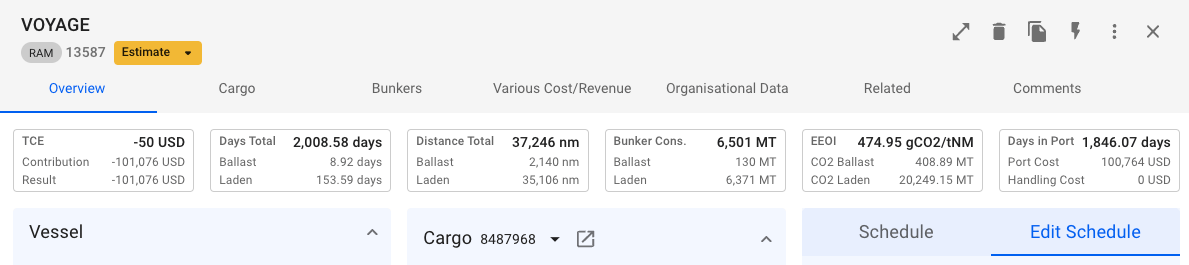

Voyage drawer

To open the voyage drawer, go to the Voyages module.

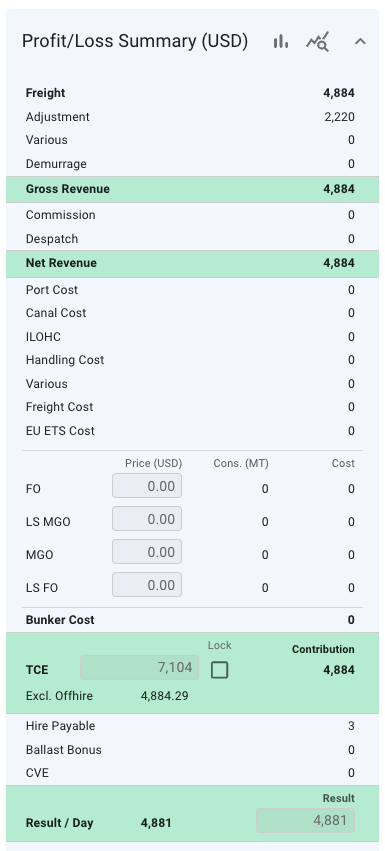

Summary

The top of the voyage drawer "Overview" tab has four summary cards for TCE, total days, hire costs, and bunker costs.

Note, If the status of the Voyage is closed, it is not possible to make any updates or changes to that particular Voyage.

Click expandto open detailed charts for the numbers in the summary.

Result

The "result" chart is a waterfall chart for costs and revenue on the voyage. Hover the mouse over the bars to see further details behind the calculation.

Days

The "days" chart has a timeline chart for the port calls on the voyage and a table of the total days on the voyage.

The port calls timeline shows the days at sea and days in port. It also shows the names of the ports above the bars. Hover the mouse over each bar to see more information.

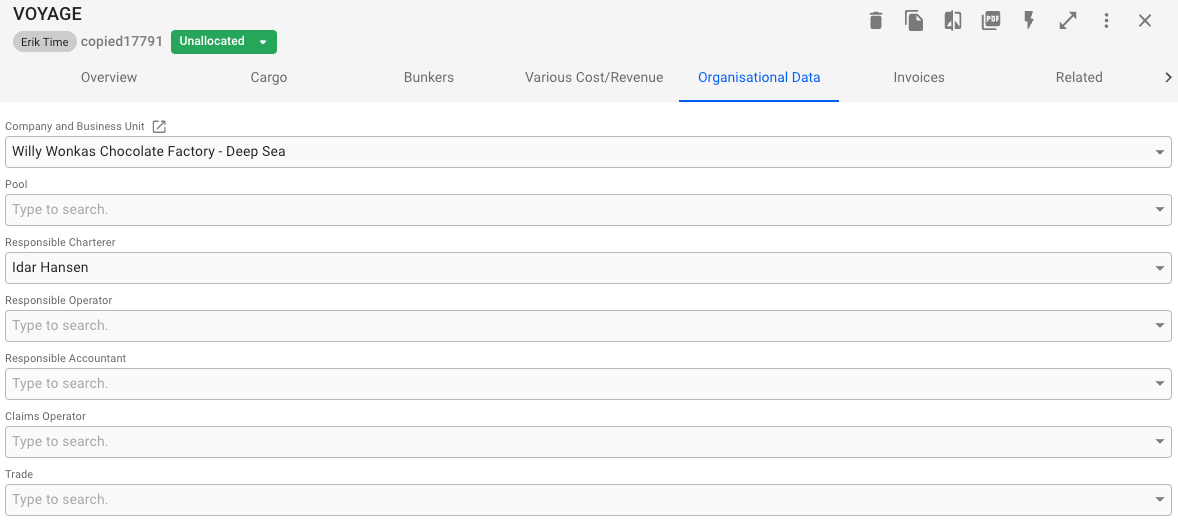

Organisational Data

Here you may add organisational data to your voyage.

Note, The Company and Business Unit fields depend on each other. If one of the details is set, you may see linked items that correlate to the former attribute when selecting the second field. Moreover, if you proceed with an element not linked to the former attribute, the first field will be cleared.

* For example, there is Company A, which has a link to Business Unit A. When creating Voyage's organisational data, after selecting Company A and expanding the Business Unit, you will get a list of options. The list will contain all the Business Units, but Business Unit A will be marked as linked to the selected Company. Next, if linked Business Unit A is chosen, you will end up with Company A and Business unit A. Otherwise, if the selected Business Unit is not linked to the preferred Company, the Company field will get cleared, and you may observe a list of Companies related to the selected Business Unit.

Layout:

The Voyages module contains of a large list of different types of voyages; unallocated, estimate, allocated, nominated, etc. In this list, you can filter the voyages based on several key endpoints to effectively view the required information on your screen. There is a sort icon to the far right, with different options for sorting the list as well. You can read more here: .

Below you can click to read how to create different types of voyages:

The VMS provides powerful voyage tools for risk assessment and estimations on cargo capacity on port calls.

These tools are available from Voyages or PlanningFleet Plans

1. Click on a voyage in the voyages list or board to open it in the drawer.

2. At the top right, click on Functions.

With the Intake Calculation function you can change parameters of a voyage to get an overview of quantities available for cargo at the port calls.

1. Click on a voyage in the list or board to open it in the drawer.

2. At the top right, click on Functions.

3. Select Voyage Intake Calculation.

Voyage Header Parameters

At the top, below the vessel-chip and voyage reference, fields for changing the stowage and bunker properties for the entire voyage are displayed.

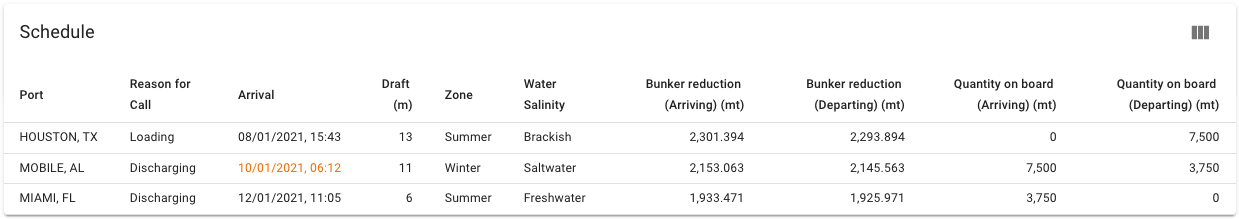

Schedule Table

A table of all the port calls on this voyage is shown in this section. To change the intake reduction properties per port call, click a row to open a window where you can make adjustments. Some columns are hidden by default, and can be toggled on/off by using the "Customize Columns"-button in the top right corner of the table.

Chart

A mixed chart of the calculation results is generated at the bottom. Each port call has multiple graphs to show the reductions, cargo quantity and quantity available for cargo. The charts gets updated automatically when there are changes to the voyage header, port call, or vessel parameters.

Click on the legends at the top of the chart to toggle the display of a graph. Hover the mouse over the chart to inspect the values of each calculation data point.

Loadline Information

The loadline information table shows data on the voyage vessel that might affect the intake. To change these values, you need to edit the vessel in the Vessels module in master data.

With the Sensitivity Analysis tool you can run calculations on a chosen parameter to evaluate risk.

1. Click on a voyage in the list or board to open it in the drawer.

2. At the top right, click on Functions.

3. Select Voyage Sensitivity Analysis.

Input parameters

Select a voyage parameter which is then adjusted by the numerical variance for each calculation.

Chart

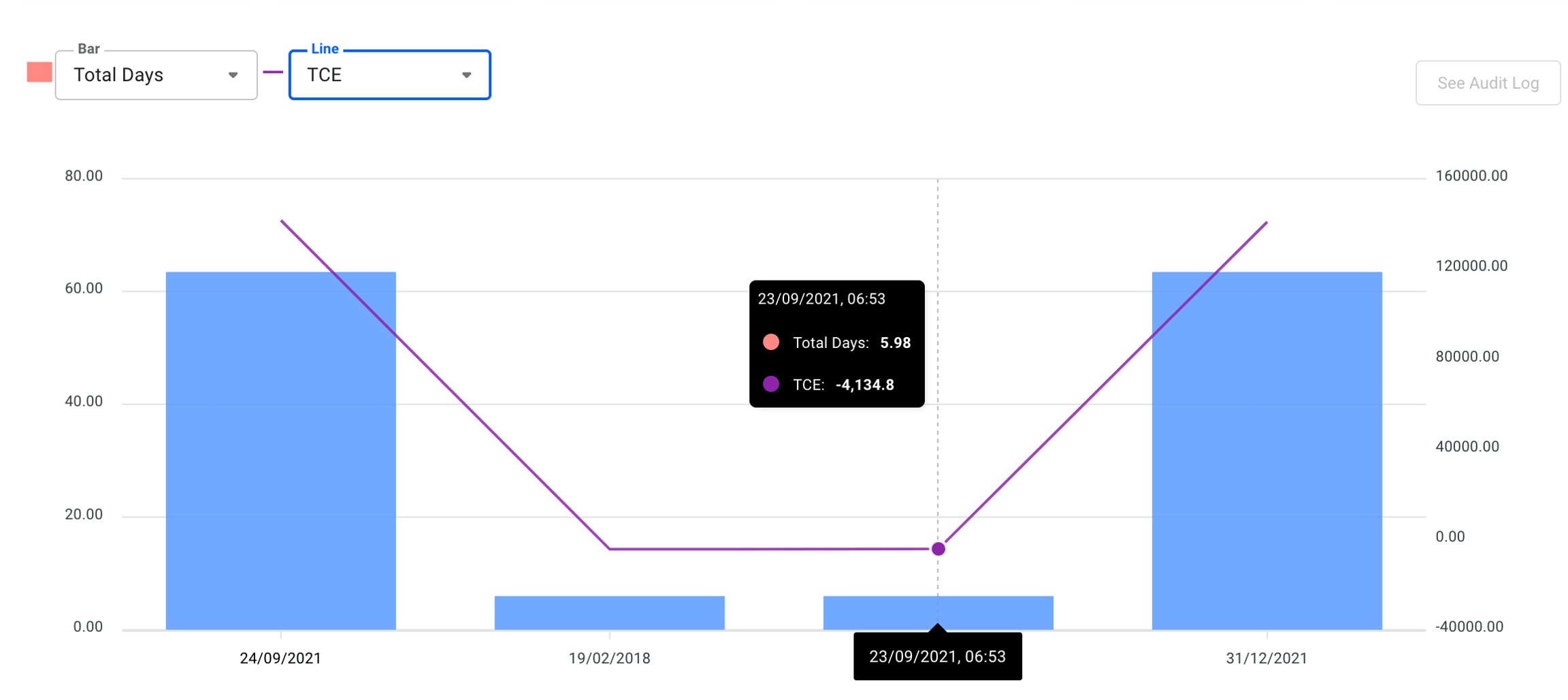

Reading the chart

The chart shows all the calculated values for the voyage. There are 15 data points, with the current voyage displayed in the middle, with negative variance on the left side, and positive variance on the right side.

The value of the selected Voyage is specified with a blue vertical line. The figures you find in a small box above each point reflect the X-axis values for each point.

Hover the mouse over the chart to inspect the values of each calculation data point.

Moreover, you may find a table on the right from the Sensitivity Analysis chart. The table consists of the calculated values, placed in ascending order. The table may ease navigation among calculations.

Downloading the chart

You can enable or disable the subscription to AIS-positions for a vessel.

1. Open the Vessels module in the Master Data section.

2. Open the vessel drawer

3. If the vessel has an IMO-number, click on the icon in the top right.

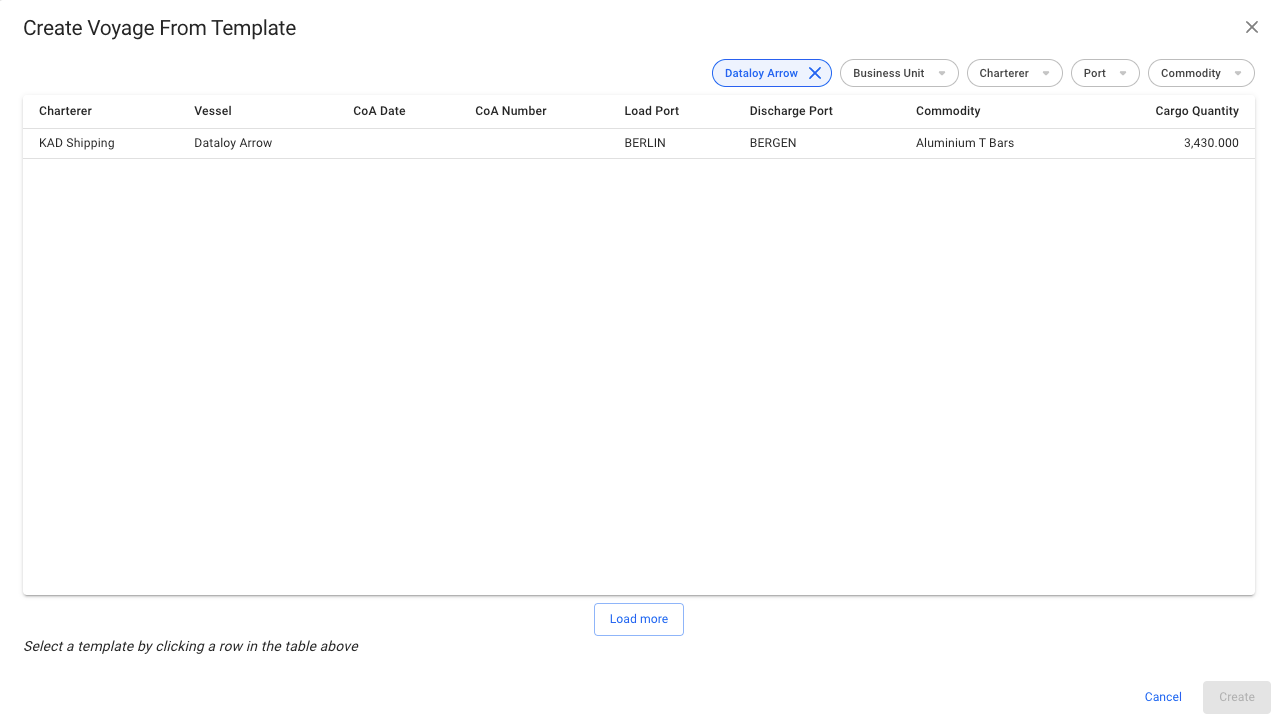

To efficiently create a voyage, and link them with CoAs, you can create voyage based on a . The CoA Templates Voyage are the template voyages that are maintained in the Budgets module.

Steps:

1. Open the Voyages module from the menu on the left.

2. In the top right corner, click Create .

3. Select Create Voyage From Template.

4. In the modal, select a CoA template voyage to create the new voyage. The fields that are pre-filled are the ones that were filled in when creating the CoA template itself, which the new voyage will inherit.

5. Click Create.

The modal:

Feature:

• The modal is now draggable, making it easier to see the information "behind" the modal. Hover over the title or the top of the modal to activate it.

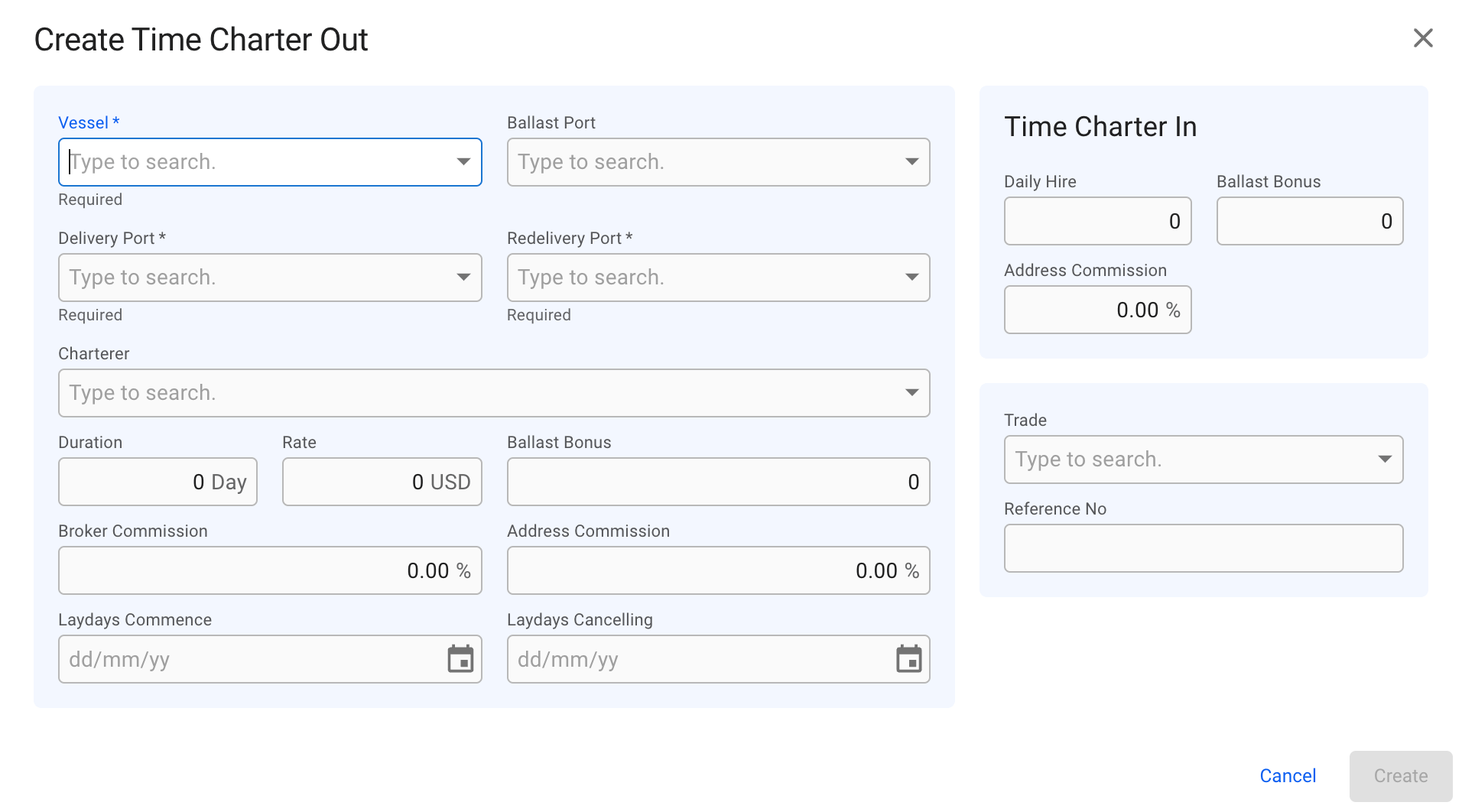

Steps:

1. Open the Voyages module from the menu on the left.

2. On the top right corner, click the icon.

3. Select Create Time Charter Out.

4. In the modal, you can fill in the required fields and add any additional information about the new TC voyage.

5. After you have filled in, you can click Create.

Required fields:

• Vessel

• Delivery Port

• Redelivery Port

The modal:

Features:

• After choosing a vessel, you will now be able to choose a Ballast Port.

• The modal is now draggable, making it easier to see the information "behind" the modal. Hover over the title or the top of the modal to activate it.

At the top of the drawer you can find a drop down with available statuses for a cargo, which will open by clicking the current status.

The cargo status is a helper for you to understand where in the process you are. All statuses apart from Clean Fix are the same in the sense that they do not change the functionality of the system. When you set the cargo status to Clean Fix, the cargo quantity field in the cargo drawer now changes to be the B/L quantity. So when changing the cargo quantity on a "Clean Fix" cargo, it only changes the B/L quantity, not the booked quantity.

There may be several reason for having a voyage without any cargo onboard the vessel. By using the Create Voyage Without Cargo option, you can for instance plan out repositioning of your vessels, or schedule dry docking.

Steps:

1. Open the Voyages module from the menu on the left.

2. On the top right corner, click the icon.

3. Select Create Voyage Without Cargo.

4. After you have filled in the required information, you can click Create.

The details of a voyage can be edited in the Voyages module.

When you have , click it and the details will show in a drawer or panel on the right hand side. Field values can be edited directly.

Tiles

Tiles show the key values like TCE, Days Total, Distance Total, Bunker Consumption, EEOI, Days In Port, of the voyage.

Conditional information:

• TCE Excluding Offhire (only shown when there is at least one offhire day)

• Offhire days (only shown when there is at least one offhire day)

Sections

Voyages on a time charter will have a "TC contract" section, while all other voyages will have a "Performance Cargo" section instead.

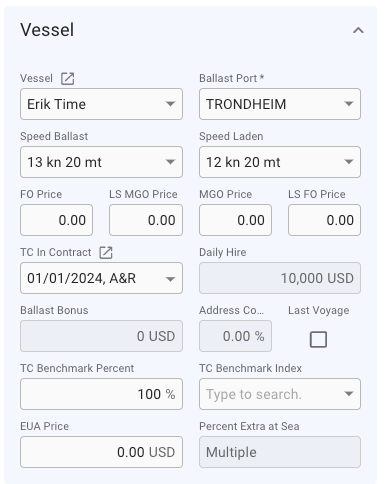

Vessel Section

Speed Laden: Showing the speed for laden port calls if all port calls have the same speed. If port calls has different speeds this field will be disabled and the text will be: Multiple. Changing this value will update speed for all laden port calls.

Speed Ballast: Showing the speed for ballast port calls if all port calls have the same speed. If port calls has different speeds this field will be disabled and the text will be: Multiple. Changing this value will update speed for all ballast port calls.

Changing vessel in this section will change the voyage's and the connected cargoes' company and business unit to the selected vessel's.

Cargo Section

Days Extra In Port: Showing the average days extra in port for load and discharge port. Only enabled when days extra in port is the same for all port calls with the same reason for call. When updating, all port calls with the same reason for call will be updated. Days extra in port can also be updated when editing a port call.

The voyage drawer is also split up in different sections; , , Cargo (the Performance Cargo), , and .

For a TC voyage, the drawer has the Time Charter Contract section instead of the Cargo section.

Drawer Actions

On the left hand-side, we have the vessel name chip, which is clickable and will forward you to the linked . The number is the reference number of the voyage, and to the left we have the status. The statuses are within a dropdown menu which you can change yourself:

Secondary Actions

In this dropdown menu, you are able to do several actions:

Move: you are able to move the voyage onto another voyage by changing the selected vessel, also known as allocating the voyage.

Convert To Template: you are able to convert the voyage to a template. Here you have two different options to choose between (unless they are disabled).

Print Statement of Account: you are able to print out the SoA report of the given voyage.

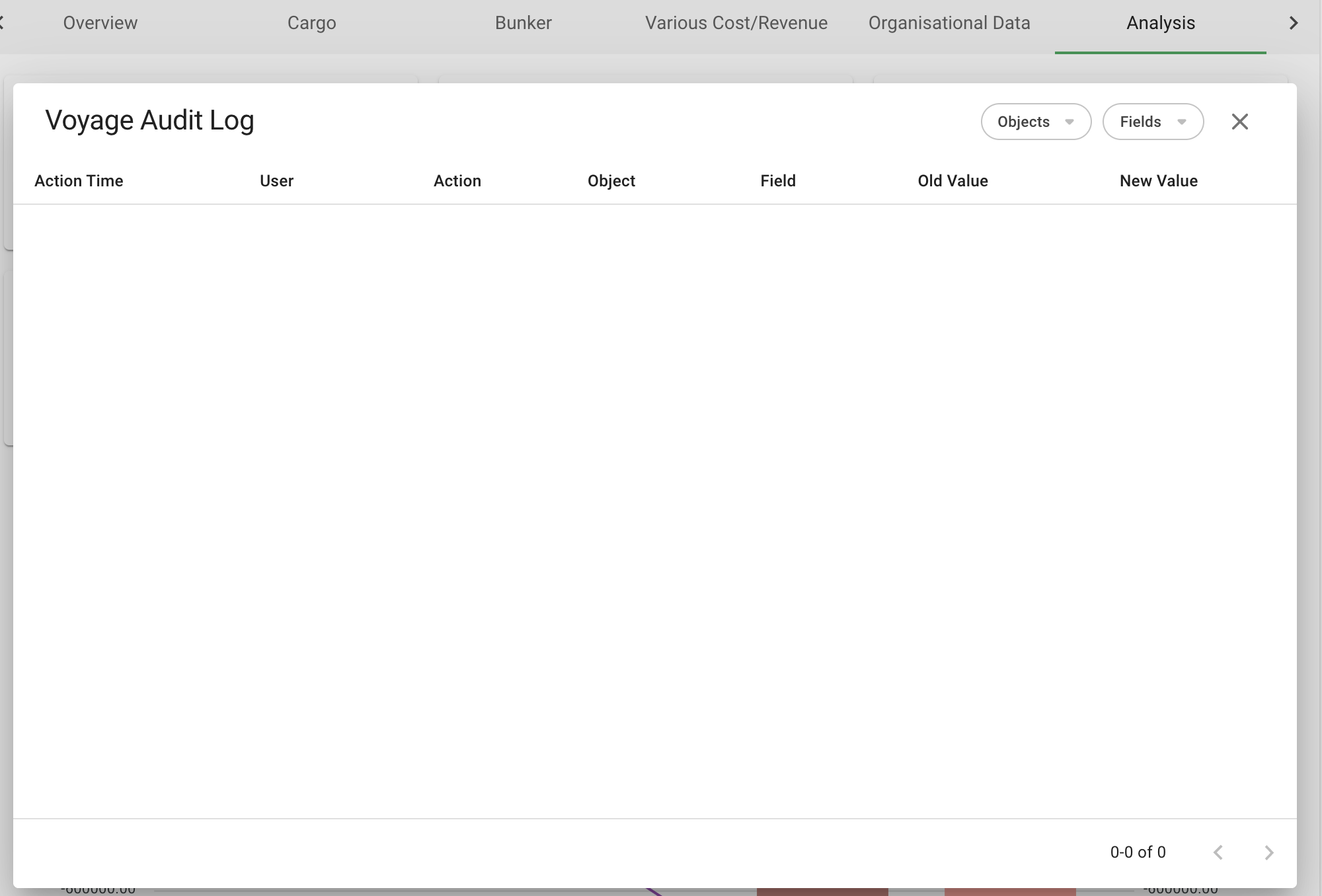

Audit Log: you are able to track every action inside, and regarding, this given voyage.

Attachment: you are able to upload/download the voyage attachments.

In the Sub-cargoes tab you may enter sub-cargoes

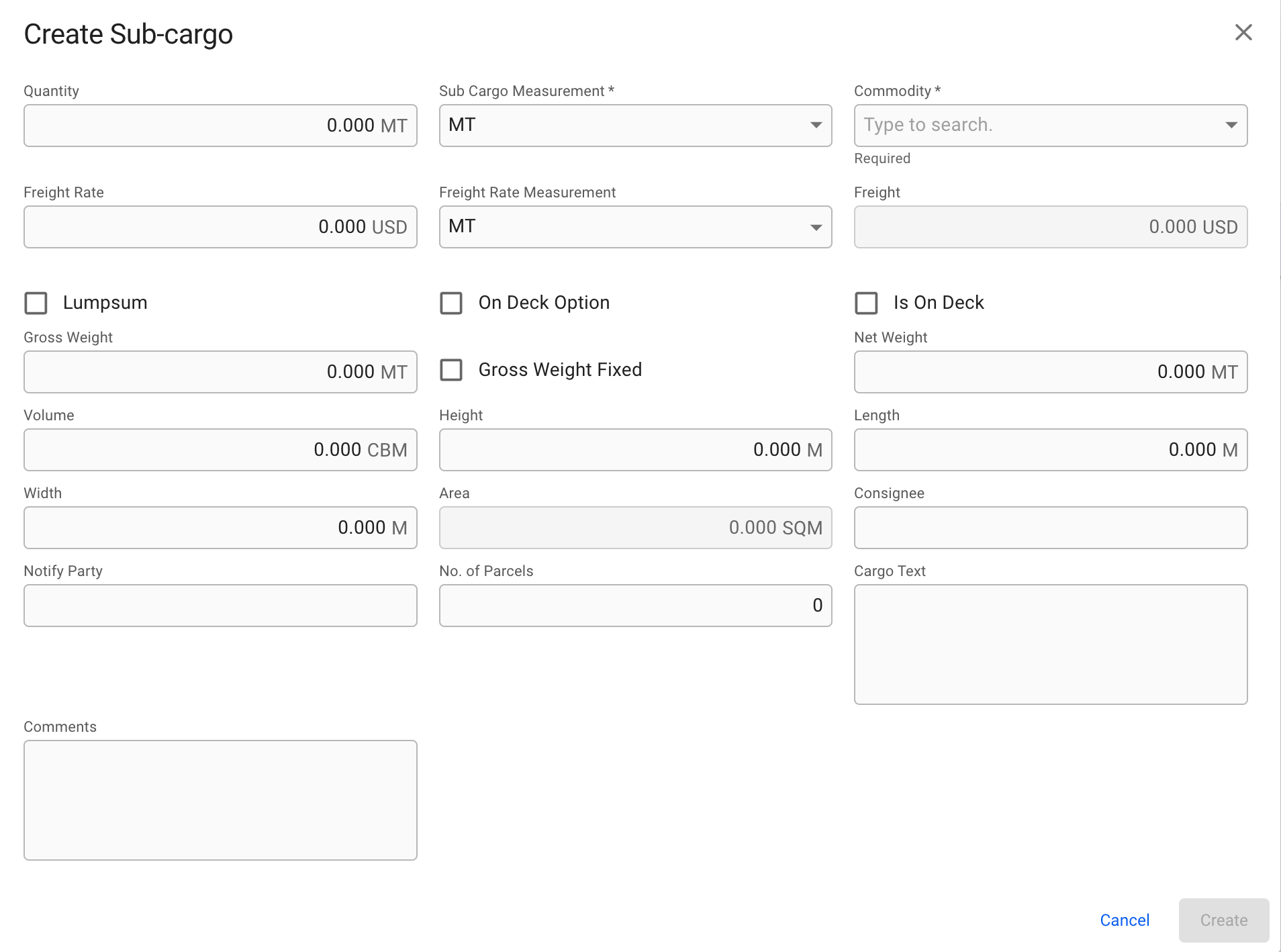

By clicking the blue plus icon in the top right corner you can create sub-cargoes.

Once clicked the below modal will appear:

Once the required fields are filled in the create button will be activated and you may create the sub-cargo. The modal for editing a sub-cargo is identical.

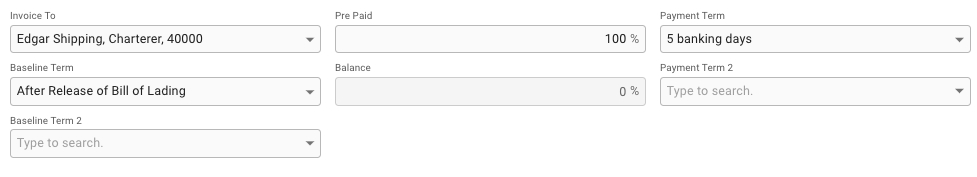

In the Payment Terms tab you can enter the payment details as per above fields.

Steps:

1. Open the Voyages module from the menu on the left.

2. On the top right corner, click the icon.

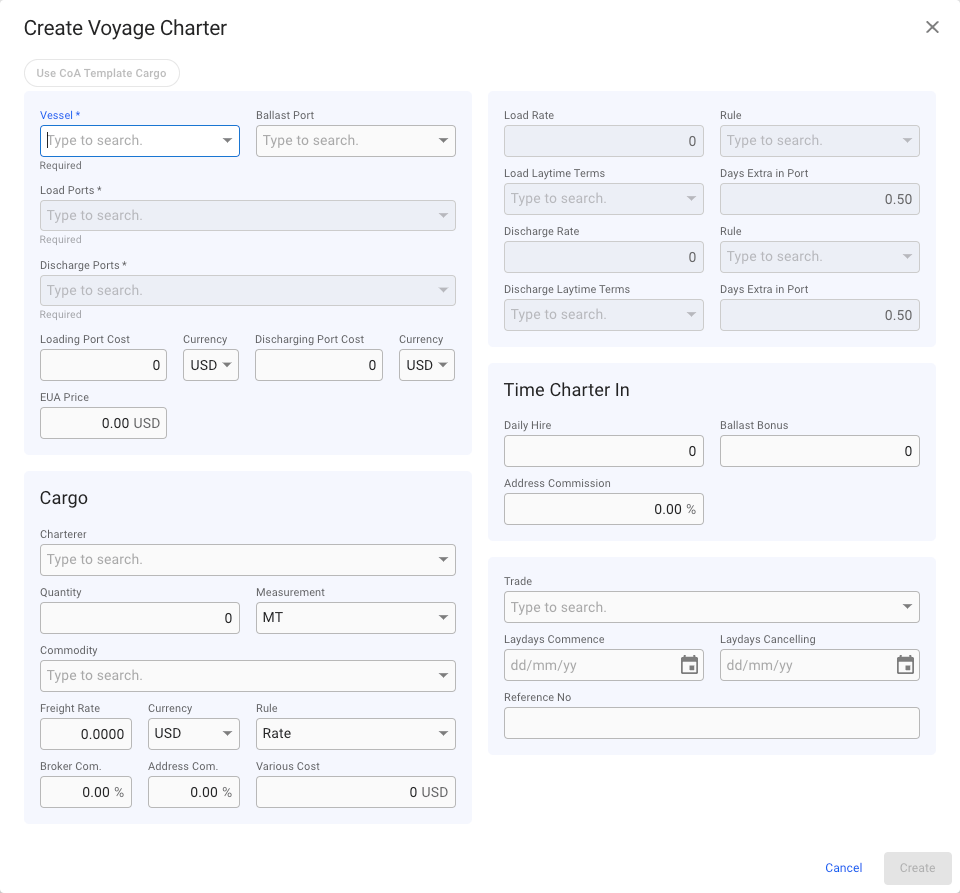

3. Select Create Voyage Charterer.

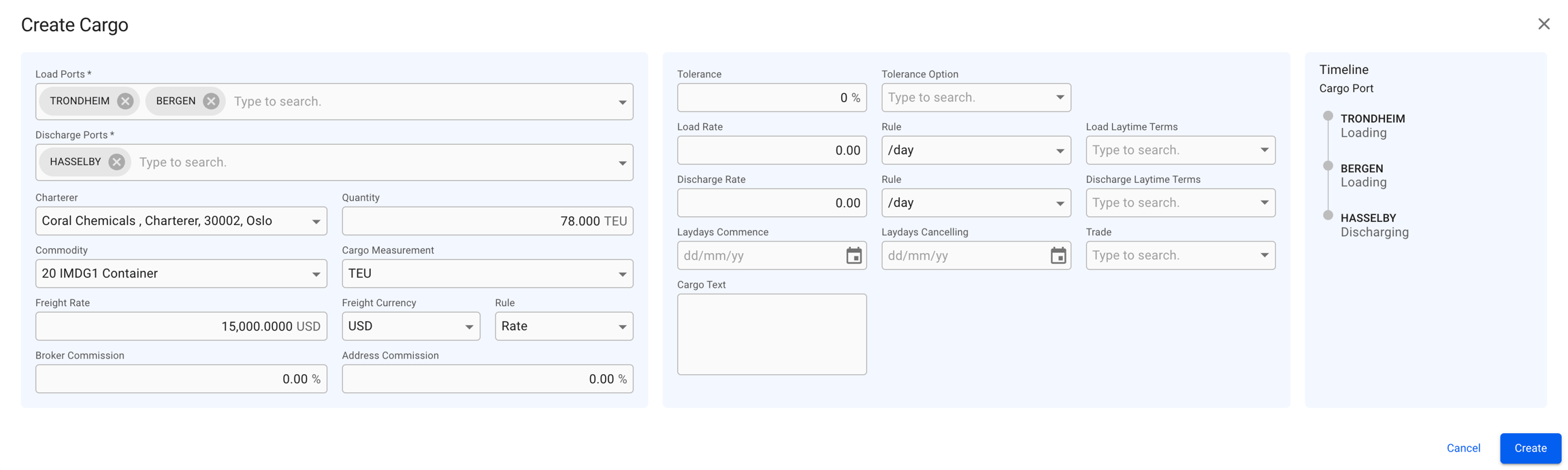

4. In this modal, you can have two options:

   a. you can fill in the required fields and add any additional information about the new voyage

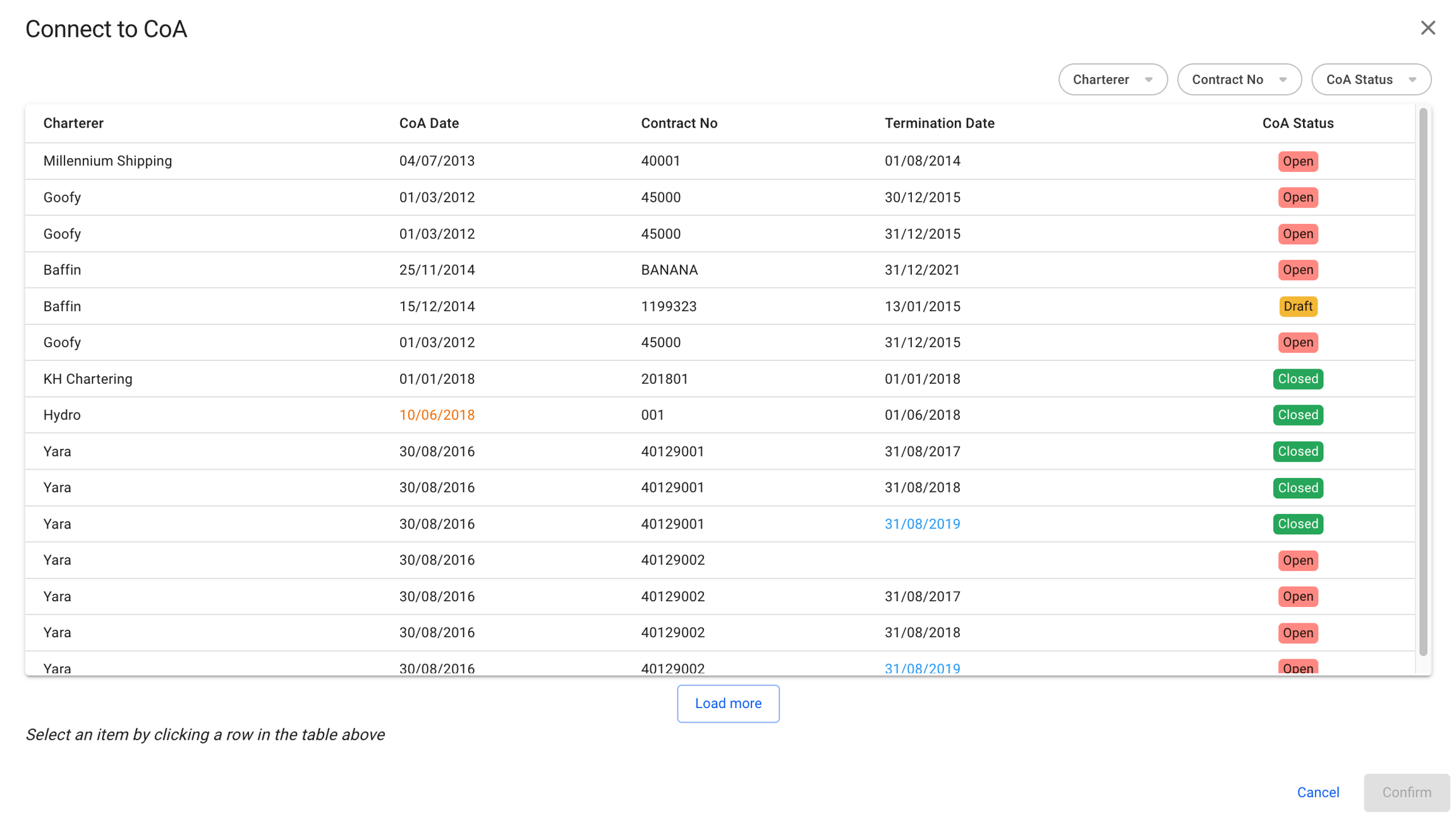

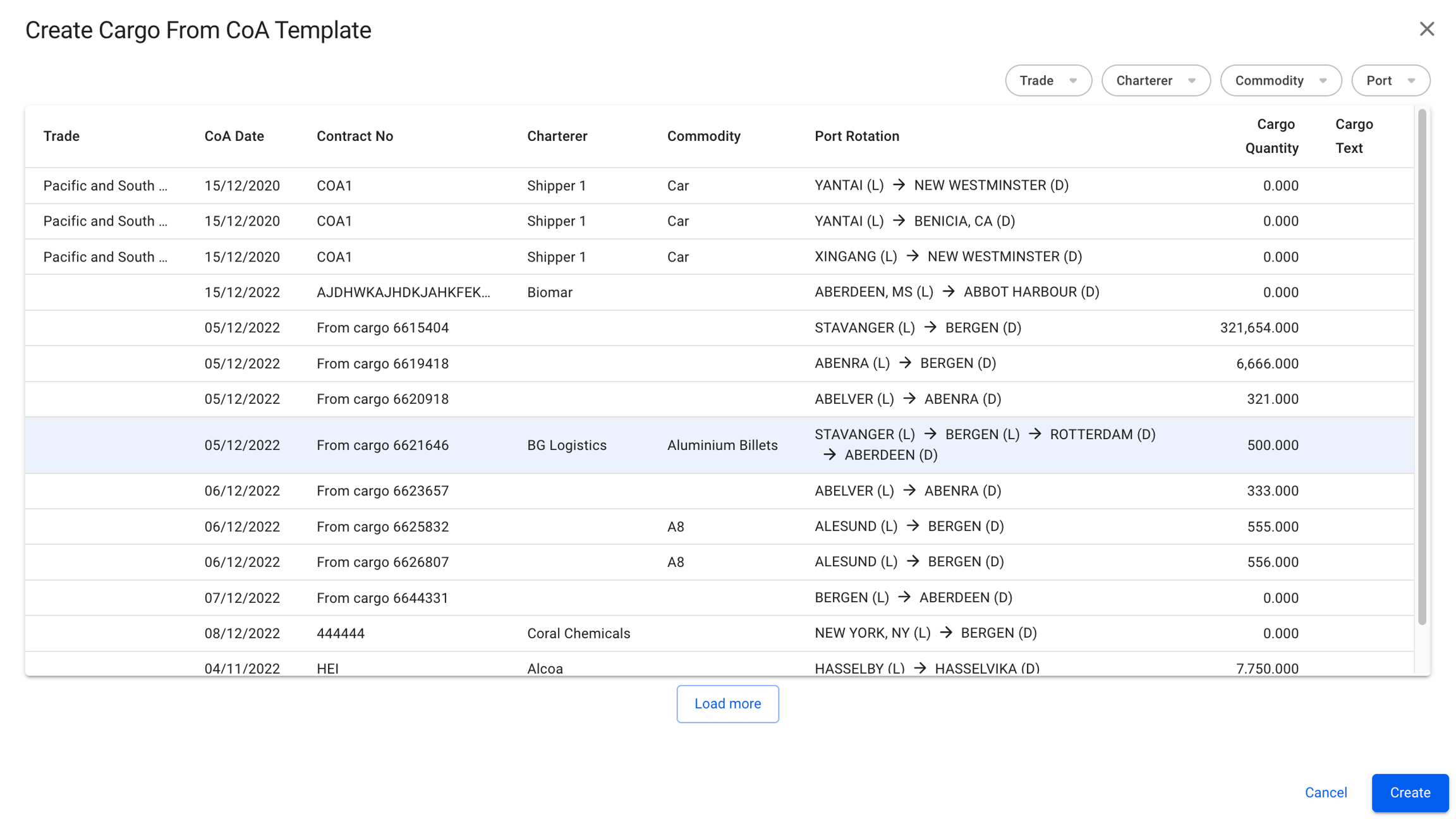

   b. you can choose a vessel, and afterwards click the Use CoA Template Cargo button, which will link to the same modal as described here: .

5. After you have filled in or chosen a CoA Template for the cargo information, you can click Create.

Required fields:

• Vessel

• Load Ports

• Discharge Ports

The modal:

Features:

• After choosing a vessel, you will now be able to choose a Ballast Port.

• The modal is now draggable, making it easier to see the information "behind" the modal. Hover over the title or the top of the modal to activate it.

In the various Cost/Revenue Tab there will be two tables. One table for various cost and one for various revenue.

To add a Various Cost click the blue plus icon in the top right corner. Once clicked the below modal will appear.

Once the required fields are filled in the create button will be activated and you can create the Various Cost.

To add a Various Revenue click the blue icon in the top right corner. Once clicked the below modal will appear:

Once the required fields are filled in the create button will be activated and you can create the Various Revenue.

To delete either a Various Cost or a Various Revenue select the item from the table by clicking the checkbox on the far left side.

Once one or more items are selected you can click the trashcan to delete the selected item(s).

The "Schedule" section in the Voyage drawer shows three different sub-sections:

Schedule: a timeline of port calls on a voyage, where the left side shows ETA and ETD time- and dates, as well as Days Extra and Waiting Days, and the right side shows the port calls, their reason for calls, Port Costs and Total Days. You can create, rearrange, delete and edit port calls directly from this screen.

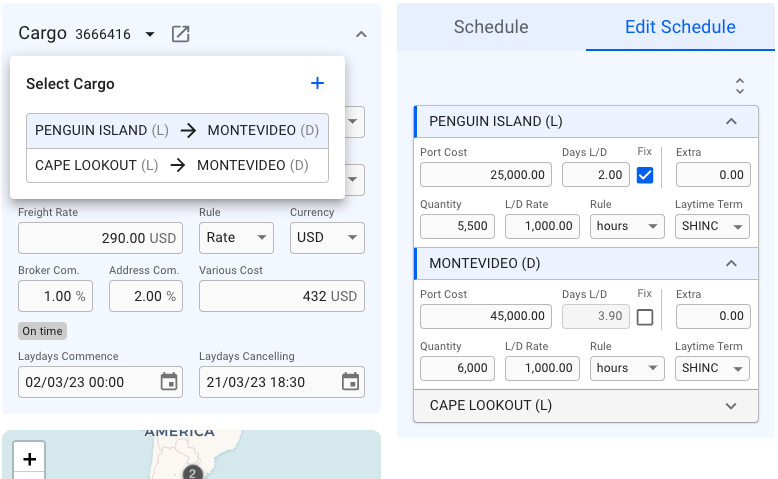

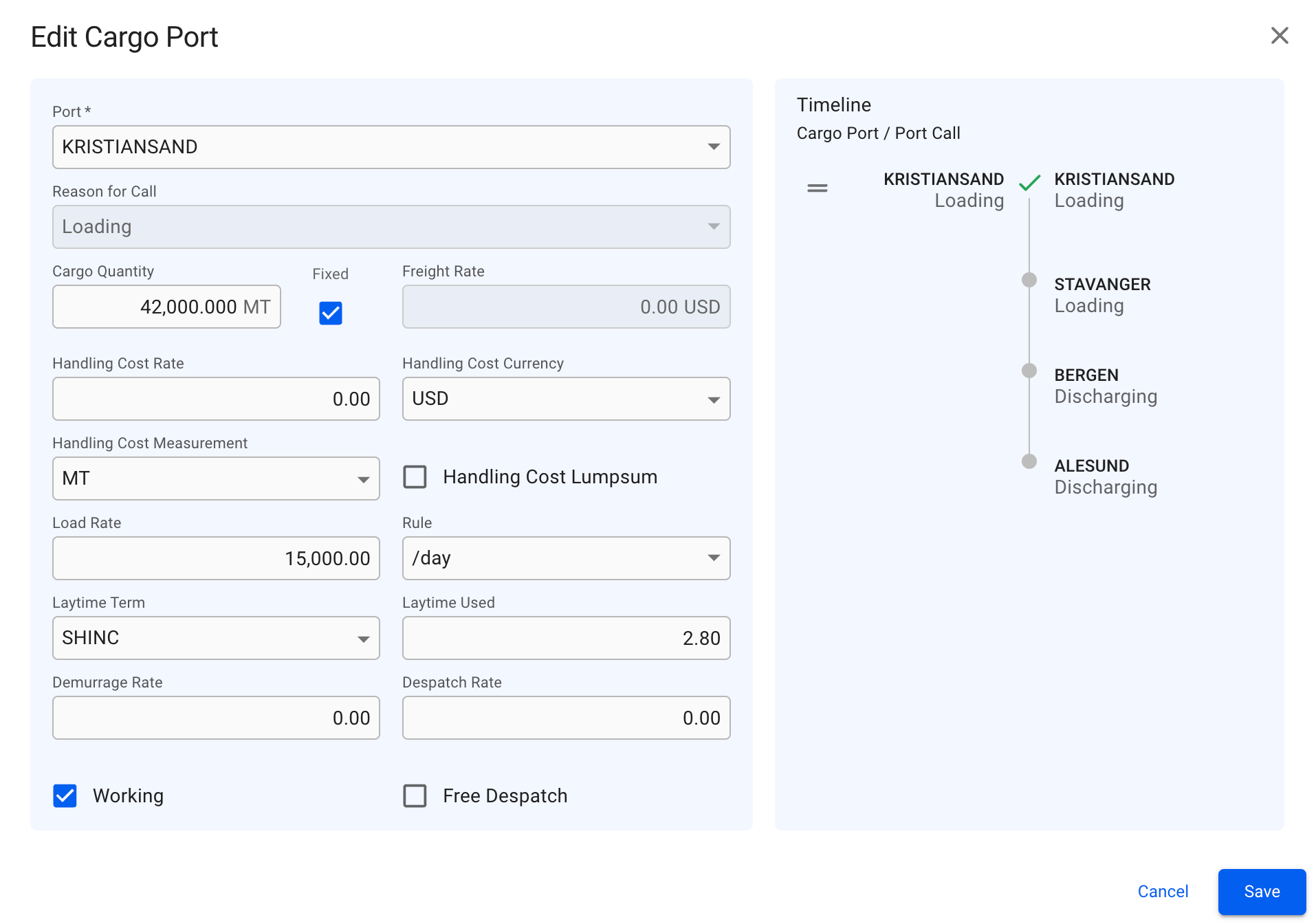

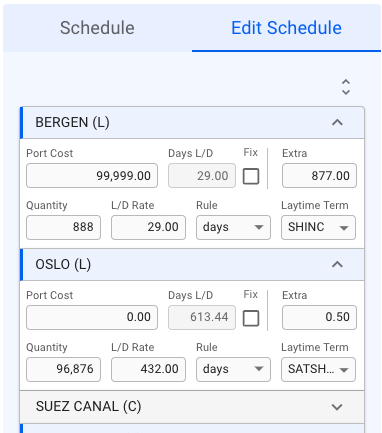

Edit Schedule: a list of all the port calls of the voyage, with their respective reason for calls. You can open/close the collapsable items to find the port call's Port Cost, Days L/D, Fix and Extra. You can also find the cargo port's Quantity, L/D Rate, Rule, Laytime Term, HC Rate, Currency, Measurement and HC Lumpsum. All of these fields are editable. The cargo highlighted in blue in the Cargo List section will also have its port calls highlighted correspondingly in the Edit Schedule section.

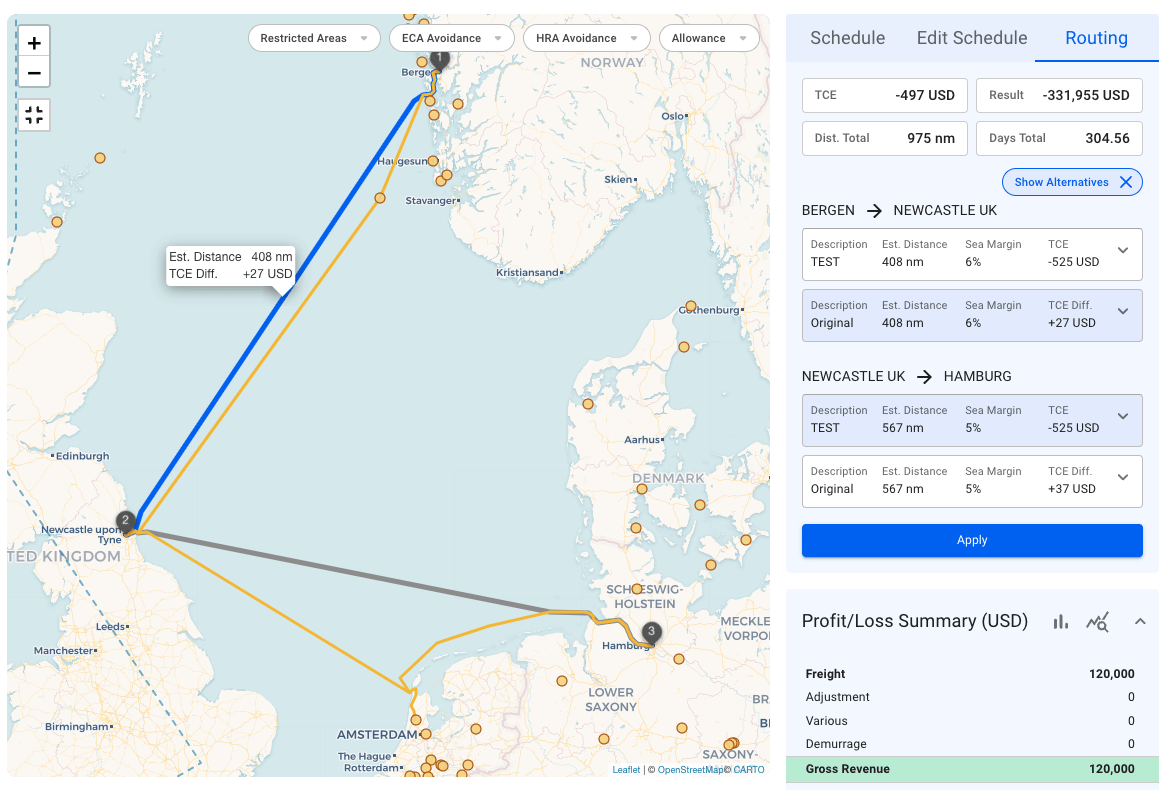

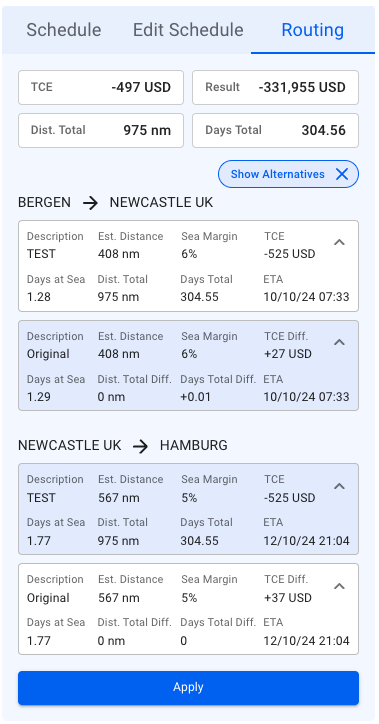

Routing: TBA.

Managing Port Calls

When hovering the mouse over a port call in the schedule, a toolbar in the upper right will appear.

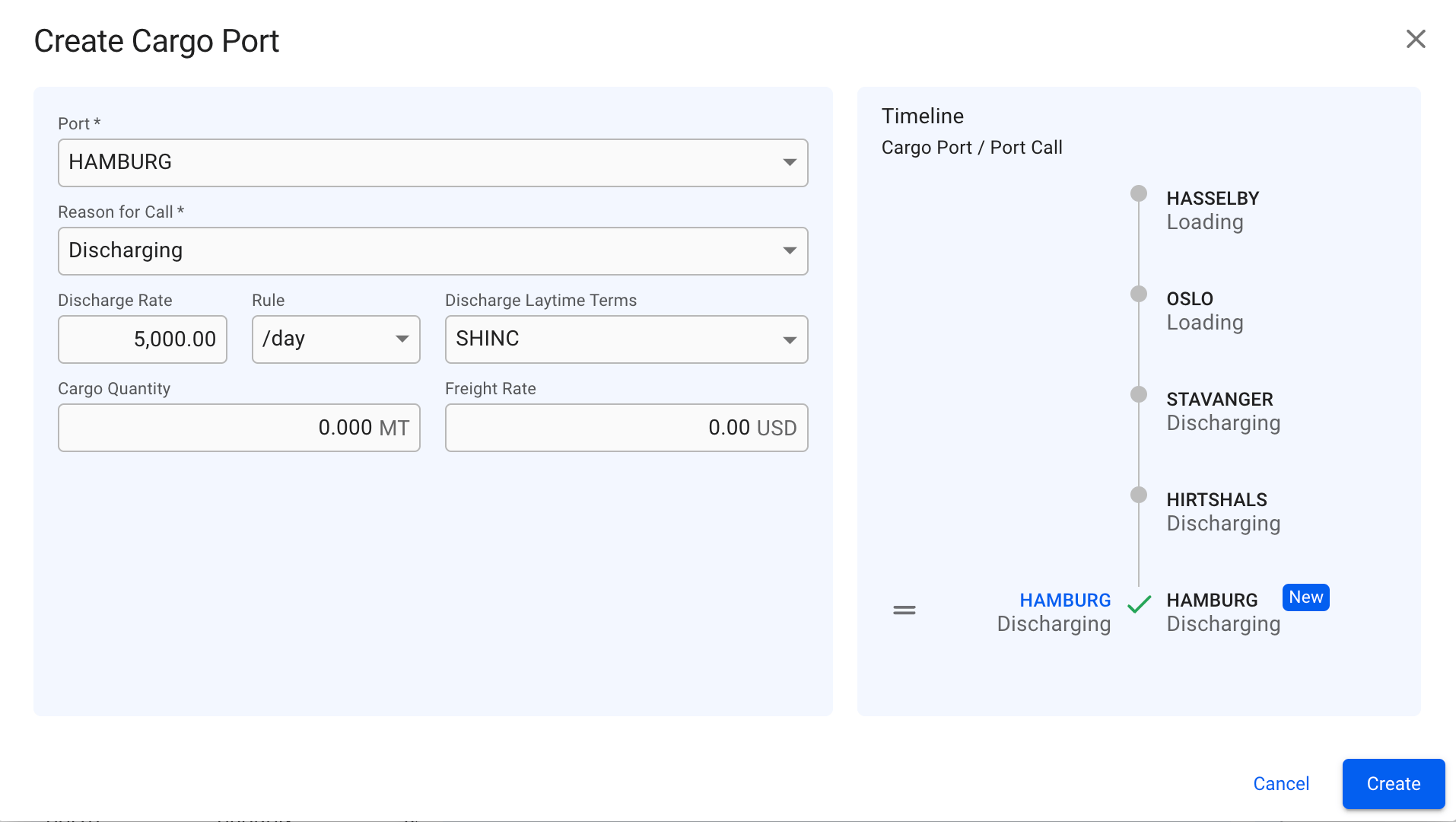

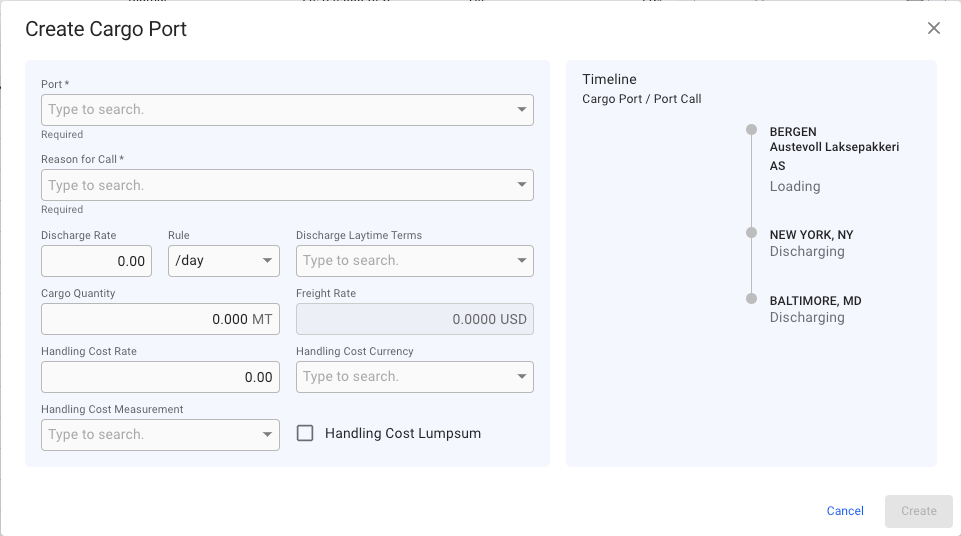

• To insert a port call before or after the port call you are editing, click the Create Newbutton and select Before or After. A window to create a new port call then opens.

• To edit a port call, click the Editbutton.

• To delete a port call, click the Deletebutton.

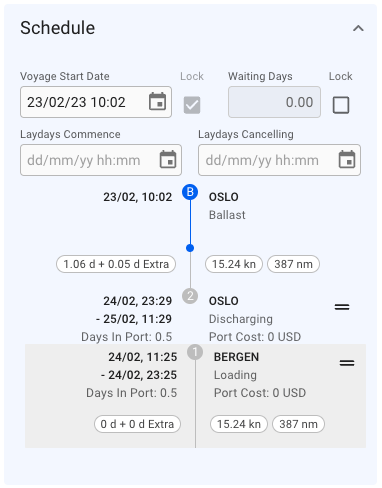

• To change the order of port calls, click and drag the Movebutton to move the port call into place.

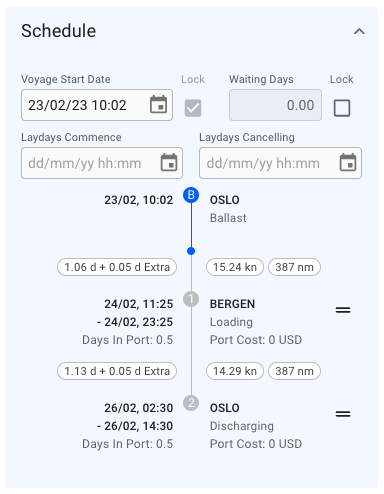

Locking Voyage Start Date and Waiting Days

Within the Schedule section, you will find a checkbox for locking the update of voyage start date and Waiting Days. This checkbox is not visible while the voyage has status Estimate or Unallocated:

The list can be filtered on Port (the list displays the first load and discharge CargoPort, but the filter works any load and discharge ports on the Cargo), Charterer and Commodity by using the quick-filters in the top right.

In a row at the bottom of the list, you can see the total amount of cargo quantity on this Voyage.

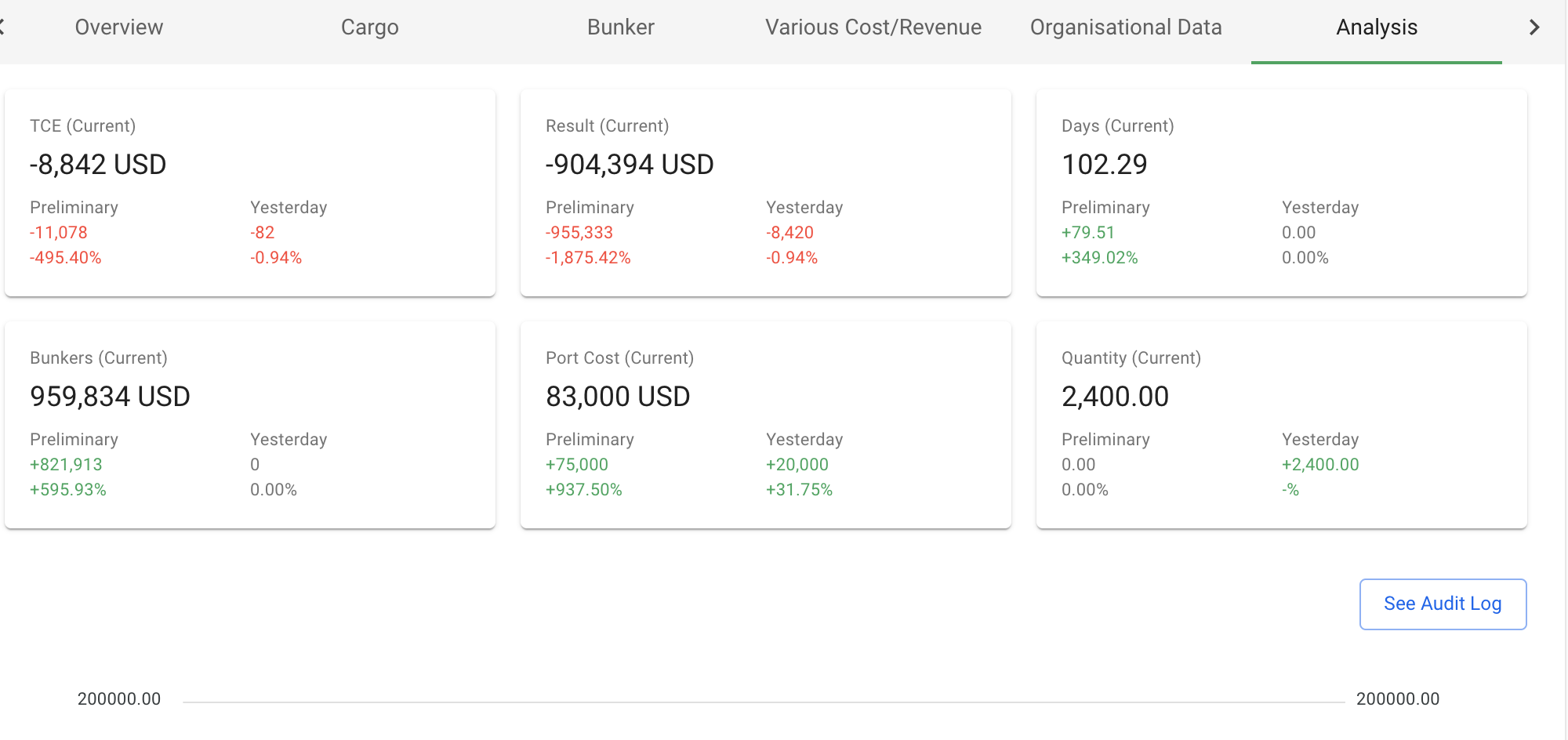

When in a voyage drawer the analysis tab is available in the tab section. In this tab you will be presented with a graph to give you a visual view of the development of key values in the selected voyage.

The graph that is displayed represents the total days for the columns, and the TCE for the line. These values can be changed in the dropdown fields on the top left. The timeline shown will be from the preliminary snapshot is taken to the current date. If the voyage is closed, the last value will be the last time the voyage was changed instead of todays date.

The summary section displays all cost/revenue items, including fuel consumption and price, related to either cargo, voyage, or port call. This breakdown displays different figures for Voyage Charter and Time Charter estimates.

When the voyage drawer is open, selecting Open Full Screenexpands the panel and shows an additional section/panel summarising the profit/loss for this voyage.​

To show the , click Analysisat the top of the panel. To show an overview bar chart, click Result Chartat the top of the panel.

The capacity plan gives you a monthly overview if your fleet is over or under booked with cargoes. For each months and each trade, we compare the available cargoes to the capacity in your fleet which is serving that trade.

To open the Capacity Plan, go to Chartering > Cargoes and select Capacity Plan in the top bar.

Overview

You can navigate between the current month and future months at the top of the dashboard. You also filter to restrict the view to a particular set of trades.

The are three summary cards at the top displaying information on all trades selected in the filter :

• Free capacity: Total deadweight - total weight

• Deadweight: Total deadweight of vessels loading in the selected month

• Weight: Total weight of cargoes with laydays commencement in the selected month.

For free capacity and weight, we distinguish between total values and fixed values. The latter takes only cargoes into account which have status "Clean Fix".

Trade panels

An expandable panel is shown for each trade, with totals for that trade. There are two lists inside the panel, one for cargoes by charterer and one for vessels.

Cargoes by charterer

In each trade panel there is a list of total cargo weight and volume grouped by charterer. Only cargoes where laydays commencement lies in the selected month are counted.

All "fixed" charterer cargo totals are listed first, while "not fixed" entries are indicated in grey.

Vessels

In each trade panel there is a list of vessels. For each voyage in the master fleetplan, the vessel that voyage is allocated to is listed if the following two criteria are met:

1. The voyage is marked with this trade or its performance cargo belongs to the trade.

2. The voyage has arrival date in the first load port within the selected month.

When you are in the analysis tab and you select a snapshot from the analysis chart the See Audit Log will be activated, and you may click this button to see the audit logs from the previous snapshot to the selected snapshot. This button is not activated for the first (Preliminary snapshot) as this has no previous snapshot to compare with.

The audit log in the analysis section will show audit logs between the selected Snapshot and the previous snapshot.

From the "Various Cost/Revenue" tab in the voyage drawer, you can view various cost/revenue from the voyage, cargoes on the voyage and Offhires on the voyage.

• By default only various cost/revenue from the voyage are shown.

• If there are either existing various cost/revenue on the Voyage's Cargoes or Offhires there will appear a filter on the top-right of the list where you can select which other types of various cost/revenue you want to be displayed in the list.

In the Speed and Consumption section in the voyage drawer you can update the various fields for consumption for a voyage. This section can be found in the Overview-tab in the voyage drawer.

In order to expand the section to see and edit the fields, click expandon the far right of the top right summary cards.

Once the expand icon is clicked the fields will be displayed like this example:

Note that if the field for Speed Laden or Speed Ballast is changed in the vessel section it will also affect the corresponding field in this section as well, and vice versa.

In the Organisational data tab in the voyage drawer you can edit the following information:

• Company and Business Unit

• Pool
