To copy any vessel, open the Vessel drawer and click the More button in the top right to bring up the menu.

Clicking Copy Vessel will open a Copy Vessel modal where you are prompted to enter a new name for the new copy.

When you click Create, the data from the original Vessel will be copied over to the new Vessel, with a few exceptions.

Voyages & Port Calls

Voyages and Port Calls will not be copied to the new Vessel.

Main Vessel Description

IMO Number will not be copied to the new Vessel.

Internal Data

The internal data of the copied vessel will be given default values for some fields like company, business unit, vessel code and vessel class.

The vessel code will be set to the unique key value for the Vessel, used by the API.

Pool and Pool Earning Points will not be copied to the new Vessel.

1. Open the Vessels module in the Core menu in the top left corner.

2. Find your selected vessel.

Vessel "Speed and Consumption" data can be accessed in the top tab menu. Details can be maintained directly in the fields or from the table actions.

Welcome to the main source of information on the Dataloy product suite.

Depending on your access permissions the list of Vessels might not be visible.

Open the Vessels module in the Core Menu list on the top left corner.

There are several sorting and filtering options available for you to narrow down what you include in the list view, including a "My Vessels" filter that shows all the vessels of which the logged-in user is set as one of the following:

• Master User

• Responsible Accountant

• Operator

• Claims Operator

You can also Customise the columns of the Vessels list to add, reorder or hide columns. The columns Operator, Built, and Schedulable are hidden by default.

Vessels List Tabs

On top of the list, you may find three tabs: Operative, Archived, and Map. The two first tabs illustrate pre-sorted data based on the fleet exit date parameter. The Map includes an interactive map with the current vessels' location.

Moreover, filters found on the same line as the tabs, apply to both tables. If you switch between tabs, the filters will remain the same, facilitating navigation.

Operative

A click on the Operative tab will load a table, that contains only operable vessels. In other words, the vessels whose fleet exit date is either not set, or set in the future.

Archived

On the other hand, the Archived tab presents vessels whose fleet exit date is older than the current date (fleet exit date was in the past).

To add a Main Engine Speed to a vessel, navigate to the Speed and Consumption section of the Vessel drawer.

In the Main Engine table, click Add Main Engine Speed and fill in the fields.

You can add multiple speed and consumption data, for example one speed order for full speed and one for eco speed.

An entry to the speed and consumption list may be the default laden and default ballast speed, but the Vessel may only have one of each.

You can enable or disable the subscription to AIS-positions for a vessel.

1. Open the Vessels module in the Master Data section.

2. Open the vessel drawer

3. If the vessel has an IMO-number, click on the icon in the top right.

1. Open the Vessels module in the Master Data section.

2. Open the Vessel drawer

Vessel "Internal Data" can be accessed in the top tab menu.

For "old" vessels that you have in the system that has a minimum of one commenced voyage, the internal data should already be established. For new vessels or vessels without commenced voyages, open the action menuin the top right and choose "Create Internal Data" as indicated below.

When the above 'Create Internal Data' is created, it will be possible to access the below Internal Data page:

Miscellaneous:

Here, you can set fields like Company and Business Unit, Bank Account Receivable, Master Account and Pool, as well as the Pool Earning Points. In this table, you are able to create, edit and delete a Pool Earning Point:

Create/edit modal for Pool Earning Point.

1. Open the Vessels module in the Master Data section.

2. Open the vessel drawer

Vessel "AIS Data and Weather Report" data can be accessed in the top tab menu.

For the tab to be enabled an AIS position has to be available.

Layout:

The Voyages module contains of a large list of different types of voyages; unallocated, estimate, allocated, nominated, etc. In this list, you can filter the voyages based on several key endpoints to effectively view the required information on your screen. There is a sort icon to the far right, with different options for sorting the list as well. You can read more here: Sorting and Filtering Lists.

Below you can click to read how to create different types of voyages:

The Load and Discharge rates section is an an overview of the load and discharge rates applicable for ports and terminals. It must not be mixed with the vessels' max load and discharge rates.

1. Open the Vessels module.

2. Open the vessel drawer

Vessel "Load & Discharge Rates" data can be accessed in the top tab menu. Details can be maintained directly from the table actions.

Steps:

1. Open the Voyages module from the menu on the left.

2. On the top right corner, click the icon.

3. Select Create Voyage Charterer.

4. In this modal, you can have two options:

   a. you can fill in the required fields and add any additional information about the new voyage

   b. you can choose a vessel, and afterwards click the Use CoA Template Cargo button, which will link to the same modal as described here: Create Cargo From CoA Template.

5. After you have filled in or chosen a CoA Template for the cargo information, you can click Create.

Required fields:

• Vessel

• Load Ports

• Discharge Ports

The modal:

Features:

• After choosing a vessel, you will now be able to choose a Ballast Port.

• The modal is now draggable, making it easier to see the information "behind" the modal. Hover over the title or the top of the modal to activate it.

There may be several reason for having a voyage without any cargo onboard the vessel. By using the Create Voyage Without Cargo option, you can for instance plan out repositioning of your vessels, or schedule dry docking.

Steps:

1. Open the Voyages module from the menu on the left.

2. On the top right corner, click the icon.

3. Select Create Voyage Without Cargo.

4. After you have filled in the required information, you can click Create.

To add a Bunker Type to a vessel, navigate to the section of the Vessel drawer.

In the Bunker Types table in the bottom of the drawer, click Add Bunker Type and fill in the fields.

To delete a bunker type, simply click on it in the Bunker Types list, and click the Delete button.

General info

The Bunker Stock list can be found in the Voyage drawer under the tab called Bunkers.

Opening Balance

Each list starts with the opening balance of the stock. The opening balances displays the balance of the bunker stocks at the beginning of the voyage and are generated based on the previous fixed voyage. When creating voyage estimates the opening balances are generated based on the last fixed voyage on the vessel.

Opening balances can be updated on voyages with status Estimate or Unallocated to be able to do quick calculations. Once a voyage i fixed the opening balance will be recalculated based on the previous fixed voyage and will no longer be editable.

Opening balances are also editable on voyages where the voyage start date is fixed.

Edit opening balance

To edit an opening balance on voyages where this is enabled,

• click on the opening balance row and a modal with the editable values will appear

• edit the values

• click Confirm to save your changes

Add opening balance

It is possible to add additional opening balances for each bunker category on voyages that have the status Estimate or Unallocated and for voyages where the start date of the voyage is fixed.

To add an opening balance:

• in bunker stocks list click on the Add Opening Balance button located above the bunker stock list for a given bunker category

• enter the values

• click Confirm to save the opening balance

The new opening balance will be added after the last existing opening balance in the list.

In the Organisational data tab in the voyage drawer you can edit the following information:

• Company and Business Unit

• Pool

• Responsible Charterer

• Responsible Operator

• Responsible Accountant

• Claims Operator

• Trade

To edit any field in the tab, click into the field and start typing. Then select the desired option. Field will automatically save when you click outside or use tab key to exit the field.

Company and Business Unit field is mandatory if the voyage status is NOT Estimate or Unallocated. When editing company and/or business unit, you will get a warning that alerts the user that the connected cargoes will also have their companies and business units changed.

When clicking the OK button, the company and/or business unit will be changed for the voyage and all the connected cargoes.

In the voyage drawer at the vessel section you will find a checkbox for setting "Last Voyage for Current CP". This checkbox is disabled when there is no TC In Contract registered.

The details of a voyage can be edited in the Voyages module.

When you have located the voyage, click it and the details will show in a drawer or panel on the right hand side. Field values can be edited directly.

Tiles

Tiles show the key values like TCE, Days Total, Distance Total, Bunker Consumption, EEOI, Days In Port, of the voyage.

Conditional information:

• TCE Excluding Offhire (only shown when there is at least one offhire day)

• Offhire days (only shown when there is at least one offhire day)

Sections

Voyages on a time charter will have a "TC contract" section, while all other voyages will have a "Performance Cargo" section instead.

Vessel Section

Speed Laden: Showing the speed for laden port calls if all port calls have the same speed. If port calls has different speeds this field will be disabled and the text will be: Multiple. Changing this value will update speed for all laden port calls.

Speed Ballast: Showing the speed for ballast port calls if all port calls have the same speed. If port calls has different speeds this field will be disabled and the text will be: Multiple. Changing this value will update speed for all ballast port calls.

Changing vessel in this section will change the voyage's and the connected cargoes' company and business unit to the selected vessel's.

Cargo Section

The Cargo section lets you make changes to the most important data on your cargo. Use the Cargo selector button to switch between multiple cargos.

Days Extra In Port: Showing the average days extra in port for load and discharge port. Only enabled when days extra in port is the same for all port calls with the same reason for call. When updating, all port calls with the same reason for call will be updated. Days extra in port can also be updated when editing a port call.

In the "Voyages & Port Calls" section of the vessel drawer, you will find the most important information about a vessel and its voyages.

Vessel Details

The "Vessel Details" section shows data about the vessel such as DWT summer/tropical and draft. Click Expandto show contact information for the vessel.

Voyages

This is a list of voyages on the opened vessel sorted by newest first. If there is an ongoing voyage in the list, it is indicated with a blue marker on the left side, and it's Port Calls are shown in the list below.

When clicking the reference number of the voyage, the voyage drawer will open. If the voyage does not have a reference number, a text value displaying 'Missing' will show instead. This is also clickable and will open the selected voyage.

Clicking on the voyages, except from the voyage Ref. No, will list all port calls of the voyage below. Clicking on port calls in the list opens them in a panel where you can make changes.

Voyages & Port Calls under Vessels List

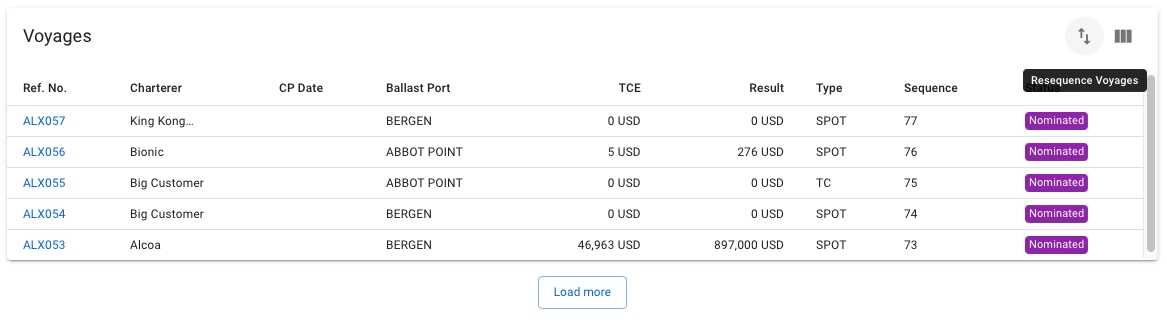

The re-sequence feature enables reordering the list of voyages assigned to a vessel (see Figure 1). To utilize the feature, click Vessels, select the one that requires reordering, and click the Two-way arrow icon in the newly appeared window on the right.

The user can now drag and drop the voyages to re-order them in the desired order. For example, Figure 2 illustrates Item 77, which is being dragged down. It is expected that the item will have replaced Item 76 after release.

Next, the result after the aforementioned release is presented in Figure 3.

Any voyages that will have their sequence number changed, will have their previous old sequence number parenthesized.

The Save button updates Fleet Plan Voyages and saves the new appearance of the Voyage List.

In the Speed and Consumption section in the voyage drawer you can update the various fields for consumption for a voyage. This section can be found in the Overview-tab in the voyage drawer.

In order to expand the section to see and edit the fields, click expandon the far right of the top right summary cards.

Once the expand icon is clicked the fields will be displayed like this example:

Note that if the field for Speed Laden or Speed Ballast is changed in the vessel section it will also affect the corresponding field in this section as well, and vice versa.

From the "Related" tab in the voyage drawer, you can view, add and edit offhire days. Expand the collapsible section titled Offhire and click the Create button to add offhire for the opened voyage.

The "Schedule" section in the Voyage drawer shows a timeline of port calls on a voyage. You can create, rearrange, delete and edit port calls directly from this screen.

Managing port calls

When hovering the mouse over a port call in the schedule, a toolbar in the upper right will appear.

To insert a port call before or after the port call you are editing, click the Create Newbutton and select Before or After. A window to create a new port call then opens.

To edit a port call, click the Editbutton.

To delete a port call, click the Deletebutton.

To change the order of port calls, click and drag the Movebutton to move the port call into place.

Locking voyage start date and ballast port

In the voyage drawer at the schedule section you will find a checkbox for locking the update of voyage start date and ballast port. This checkbox is not visible while the voyage has status Estimate or Unallocated.

To manage load and discharge rates on a vessel for selected ports and terminals, navigate to the Load and Discharge Rate section of the Vessel drawer. Use the table in the tab to edit, delete or add a new rate.

Actions

Create

Edit

Click on a row to edit and use the modal to make changes.

Delete

1. Open the Vessels module in the Core menu in the top left corner.

2. Click Create Vessel in the top right corner.

3. Fill in all required fields listed below in the Create Vessel window.

Required fields:

• Vessel Name

• Vessel Type

• Vessel Code*

*The Vessel Code field is only visible and required if you have ticked off the "Set vessel code" checkbox. If the checkbox is not ticked off, a Vessel Code will automatically be generated for you.

Voyage drawer

To open the voyage drawer, go to the Voyages module.

Summary

The top of the voyage drawer "Overview" tab has four summary cards for TCE, total days, hire costs, and bunker costs.

Note, If the status of the Voyage is closed, it is not possible to make any updates or changes to that particular Voyage.

Click expandto open detailed charts for the numbers in the summary.

Result

The "result" chart is a waterfall chart for costs and revenue on the voyage. Hover the mouse over the bars to see further details behind the calculation.

Days

The "days" chart has a timeline chart for the port calls on the voyage and a table of the total days on the voyage.

The port calls timeline shows the days at sea and days in port. It also shows the names of the ports above the bars. Hover the mouse over each bar to see more information.

Organisational Data

Here you may add organisational data to your voyage.

Note, The Company and Business Unit fields depend on each other. If one of the details is set, you may see linked items that correlate to the former attribute when selecting the second field. Moreover, if you proceed with an element not linked to the former attribute, the first field will be cleared.

* For example, there is Company A, which has a link to Business Unit A. When creating Voyage's organisational data, after selecting Company A and expanding the Business Unit, you will get a list of options. The list will contain all the Business Units, but Business Unit A will be marked as linked to the selected Company. Next, if linked Business Unit A is chosen, you will end up with Company A and Business unit A. Otherwise, if the selected Business Unit is not linked to the preferred Company, the Company field will get cleared, and you may observe a list of Companies related to the selected Business Unit.

Steps:

1. Open the Voyages module from the menu on the left.

2. On the top right corner, click the icon.

3. Select Create Time Charter Out.

4. In the modal, you can fill in the required fields and add any additional information about the new TC voyage.

5. After you have filled in, you can click Create.

Required fields:

• Vessel

• Delivery Port

• Redelivery Port

The modal:

Features:

• After choosing a vessel, you will now be able to choose a Ballast Port.

• The modal is now draggable, making it easier to see the information "behind" the modal. Hover over the title or the top of the modal to activate it.

In the vessel drawer on the top right side there is a small map displaying the vessels last known position. This position is retrieved from AIS-positions for vessels which are subscribing to this feature, for vessels which are not subscribing the latest position is retrieved from the latest position report entered in the system. In addition to this you can now view the route from Dataloy Distance Table from previous port to next port displayed in the same map. The route is the green line in the map.

To efficiently create a voyage, and link them with CoAs, you can create voyage based on a CoA Template Voyages. The CoA Templates Voyage are the template voyages that are maintained in the Budgets module.

Steps:

1. Open the Voyages module from the menu on the left.

2. In the top right corner, click Create .

3. Select Create Voyage From Template.

4. In the modal, select a CoA template voyage to create the new voyage. The fields that are pre-filled are the ones that were filled in when creating the CoA template itself, which the new voyage will inherit.

5. Click Create.

The modal:

Feature:

• The modal is now draggable, making it easier to see the information "behind" the modal. Hover over the title or the top of the modal to activate it.

• Looks and works quite similar to Create Cargo From CoA Template.

Depending on your access permissions the list of voyages might not be visible.

The "Voyages" module can be located from the left side menu.

There are several sorting and filtering options available for you to narrow down what you see in the list view.

The voyage map shows the voyage schedule, including alternative routing pointsthat can be added to the schedule between port calls. More routing points will be revealed as you zoom in on the map.

Viewing routing points

Click on a routing pointto show information about the point in a popup, including name, position, and GMT offset. When a routing point is clicked it will also be possible to add the routing point to the voyage route. When clicking 'Add to route', a pop-up will appear where you have to choose between which port calls the routing point shall be added.

Remove existing routing points from the Voyage route

Routing points that are on the voyage can be removed. When clicked, a button will become available 'Remove from voyage route'. When this is clicked, a confirmation box will appear. When confirmed, the routing point will be removed from the voyage.

Restricted areas

The interactive Voyage Map features several restricted areas:

1. Emission Control Areas

2. Open Loop Restricted Areas

Restricted Areas are visible on the map and depicted by Blue or Red dashed lines (See Figure 1).

The leftmost dropdown filter allows changing the settings to include the particular group of Restricted Areas in the map or not.

When you are in the analysis tab and you select a snapshot from the analysis chart the See Audit Log will be activated, and you may click this button to see the audit logs from the previous snapshot to the selected snapshot. This button is not activated for the first (Preliminary snapshot) as this has no previous snapshot to compare with.

The audit log in the analysis section will show audit logs between the selected Snapshot and the previous snapshot.

When in a voyage drawer the analysis tab is available in the tab section. In this tab you will be presented with a graph to give you a visual view of the development of key values in the selected voyage.

The graph that is displayed represents the total days for the columns, and the TCE for the line. These values can be changed in the dropdown fields on the top left. The timeline shown will be from the preliminary snapshot is taken to the current date. If the voyage is closed, the last value will be the last time the voyage was changed instead of todays date.

The summary section displays all cost/revenue items, including fuel consumption and price, related to either cargo, voyage, or port call. This breakdown displays different figures for Voyage Charter and Time Charter estimates.

When the voyage drawer is open, selecting Open Full Screenexpands the panel and shows an additional section/panel summarising the profit/loss for this voyage.​

To show the analysis section, click Analysisat the top of the panel. To show an overview bar chart, click Result Chartat the top of the panel.

For estimates it is possible to set the TCE or Voyage Result and let the system calculate the freight rate. To make the system calculate the TCE and Voyage Result again, uncheck Lock.

Bunker prices can be changed from the Overview/Bunker tabs.

Click a row to edit bunker price

Edit the price for each bunker type in the modal

Steps:

1. Open the Cargoes module from the menu on the left.

2. In the top right corner, click Create .

3. Select Create New Cargo.

4. In the modal, you can fill in the required fields and add any additional information about the new cargo.

5. Click Create.

Required fields:

• Load Port

• Discharge Port

• Charterer

• Commodity

New design:

The new Create Cargo modal has a new design to increase the productivity while creating a cargo, is more user-friendly and has more useful features altogether. Click on the picture below to get a better view of the details:

New Create Cargo Port modal:

Similar to the design above, we now have a new Create Cargo Port modal:

Features:

• With the new multiple value component in the Create Cargo modal, you are now able to add multiple Load- and Discharge- cargo ports to the new cargo.

• The fields are divided into 2 sections, while the 3rd section displays the Timeline component of the cargo ports that are added. In the Create Cargo Port modal, there are 2 sections, in which the 2nd one contains the Timeline.

• It is possible to drag and drop the ports in the Timeline component to change the order of the cargo port rows, in both of the modals.

At the top of the drawer you can find a drop down with available statuses for a cargo, which will open by clicking the current status.

The cargo status is a helper for you to understand where in the process you are. All statuses apart from Clean Fix are the same in the sense that they do not change the functionality of the system. When you set the cargo status to Clean Fix, the cargo quantity field in the cargo drawer now changes to be the B/L quantity. So when changing the cargo quantity on a "Clean Fix" cargo, it only changes the B/L quantity, not the booked quantity.

In order to get a complete voyage result estimation, it is possible to edit the daily hire and address commission for vessels/voyages that does not have TC-in present in the system.

From the "Related" tab in the voyage drawer, you can view the voyage related information Offhire, Laytime Calculation, and Bunker Transaction. Expand a section by clicking the arrow on the top right of each section to view a list of information. Click on an item in the list to go to the the corresponding drawer and view more information about the specific item.

Offhire and Laytime Calculations

Expand the section and click the pluss-sign to the top right of the list to create new item for the voyage.

More details about creating Offhires: .

More details about creating Laytime Calculations: .

From the "Related" tab in the voyage drawer, you can view, add and edit . Expand the collapsible section titled Laytime Calculation and click the Create button to add a laytime calculation for the opened voyage.

From the voyage drawer it is possible to change the status of the voyage by using the status chip next to the reference no at the top of the drawer.

From Estimate to Allocate:

When changing status from estimate to Allocate, the following modal will show, where you have to select the vessel, and if you want, you can manually change the position. It will by default be put last.

From Estimate to Nominated:

When changing status from Estimate to Nominated, the following modal will show. If it is a TC voyage with missing laycan on the TC, you will have to fill in the layCan as well.

In the "Invoices" tab in the voyage drawer, you can quickly see and manage the Pending Receivable/Payable document lines, as well as the Invoices connected to the voyage. The tab is only visible to voyages that do not have status "Estimate".

Pending Receivable / Pending Payable

The sections show you a list of all document lines that have not yet been assembled. Clicking on any of them allows you to edit certain parameters. Selecting one or more document lines will allow you to assemble them.

Invoices

The invoice-section shows a list of all assembled invoices connected to the voyage. There er multiple filters to allow you to quickly and efficiently find the invoice you are looking for. Clicking on an invoice will open a document drawer, showing more details.

At the top right of the section below the filters you can click a button that says 'View Line Items' which will swap out the documents in the list with the document lines of the documents on the voyage. This list has document line-specific columns, however clicking one of the document lines will open it's corresponding *Document* drawer.

In addition to separate columns, this document line list also has adjustments to its filters at the top of the section as well. The document line list has filters for Account, Port, Business Partner(Invoice Party) and Booking Number as shown in the picture above.

From the voyage drawer actions it is possible to change the Voyage Reference Number or Voyage Number, depending on the voyage status.

When voyage status is Estimate, Unallocated or Allocated, it is possible to change the Voyage Reference Number.

When voyage status is Nominated, Operational, Operationally Closed, Invoiced or Closed, it is possible to change the Voyage Number.

Clicking Edit Voyage Reference... or Edit Voyage Number... in the options meny opens a dialog box where the current values can be modified. In addition, the dialog box contains a field for changing the Voyage Start Year.

• Click a cargo in the Cargoes module list.

• When the drawer opens, find the "Commissions" tab and open it.

• Click the icon to open a dialog to enter values, where "Broker" is mandatory.

To edit the details after creation, click the line in the table and the same dialog will open.

If you click the Connect to CoA button in the secondary actions menu on in a Cargo Drawer,

you will open the Connect to CoA modal:

When you have connected the cargo to a CoA Line, you will see at the top of the Cargo Drawer a chip that says Contract of Affreightment as well as which CoA Line you've connected it to (40129002 in this example).

The CoA number chip (40129002) is a clickable chip that will open up the drawer of the CoA.

Using Filters

By using the list of port calls that opens on the Port Calls module, you can use the quick filters to find the port call you are looking for.

Specialty role: Vessel User: If you are a user onboard a vessel, the list will be showing only port calls related to that vessel.

By clicking the icon you can edit the columns shown in the list, rearrange the columns and even enable showing of some columns that are unchecked by default.

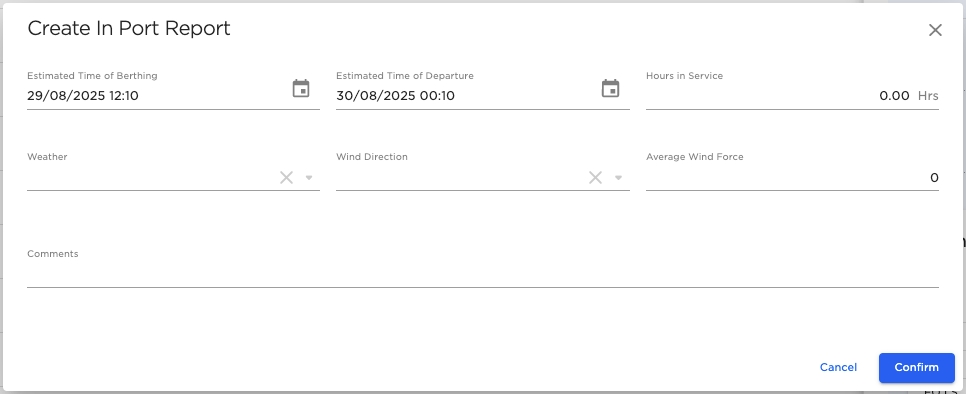

To register a In Port Report, open the drawer for the given Port Call by clicking it in the list. Then click the icon at the top of the drawer and select "Register In Port Report". A dialog will open and allow you to enter the details.

It is possible to change the instructed speed for each port call. This is a choice limited to the vessels speed and consumption combinations only depending on the leg being in ballast or laden.

• The dropdown shows both the speed and consumption

• Each speed will only affect the port call (leg) in question.

To add a speed for a vessel see the vessel documentation.

From the "Various Cost/Revenue" tab in the voyage drawer, you can view various cost/revenue from the voyage, cargoes on the voyage and Offhires on the voyage.

• By default only various cost/revenue from the voyage are shown.

• If there are either existing various cost/revenue on the Voyage's Cargoes or Offhires there will appear a filter on the top-right of the list where you can select which other types of various cost/revenue you want to be displayed in the list.

Only voyages of status "Estimate" and "Unallocated" can be deleted. Otherwise you must change the status before you can delete.

1. Find a voyage (i.e through the Voyages page).

2. Click to open the voyage you want to delete.

3. At the upper right corner of the panel, click Delete.

4. Click Confirm to delete the voyage.

Voyages can be connected to Cargoes and/or Offhires, as well as scheduled voyages if the voyage is a template.

When attempting to delete a template voyage that has scheduled voyages either at the Nominated or later stages, an error message will show instead.

The delete-voyage modal will look differently depending on whether it has connected entities:

• No connections:

• Only Offhire connection:

• Only Cargo connection:

• Offhires and Cargoes:

A TC Voyage will not have a Cargo Section on the Overview Tab like normal Voyages, but instead have a Time Charter Contract Section displaying the Time Charter Contract. In this section you can edit the most important fields on a Time Charter directly through the Voyage Drawer or click the -icon to Open the Time Charter Contract Drawer

Both Duration and Rate fields will be disabled if there exists more than one Duration on the Tc contract, or a Duration has multiple Rates.

The Calculate Profit/Loss checkbox is only available while the Voyage still has status Estimate, and will toggle calculation of profit/loss based on bunkers.

Related pages:

To view Vessel Reports, open the drawer for the given Port Call by clicking it in the list. Then click the tab "Vessel Reports" at the top of the drawer and a list with registered reports will be displayed.

To view a given report, click the wanted report in the list and a new drawer will open with further details.

The Voyage Edit Schedule segment may be found on the right-hand side of the Overview tab in a Voyage Drawer.

The edit schedule tab includes a complete list of for all the Voyage's cargo.

There are three core elements involved: Selected Port Calls, Selected Cargo, and the rest.

• Selected Port Calls: these objects are highlighted by the blue background and a small blue line on the left of the Port Call port (see figure 2). The selected port calls display data for the respective selected Cargo.

• Selected Cargo: the currently selected cargo can be chosen inside the select cargo modal, which can be invoked by clicking the expand cargo button (triangle facing down inside the left section, see figure 3). The selected cargo will be the subject of the Edit Schedule list. The Port Calls contained in the list correspond to the selected cargo, and the related values change dynamically if another cargo is chosen.

• The rest: the rest can be considered all the grey options inside the list. These options are also expandable and can be edited, but they don't belong to the selected cargo and, thus, are not the focused elements (e.g., SUEZ CANAL Port call in Figure 2).

Each list item is interactive and can be collapsed or expanded. When the selected cargo is changed, the corresponding cargo ports expand and get visually highlighted, the corresponding values are updated.

Moreover, the collapse button can expand Port Calls related to the selected Cargo, Expand all Port Calls, or Collapse all. The button may be found on the right over the first PortCall (see figure 3).

Next to the Port Call port name, there is a Reason For Call specified inside of parentheses - L means Loading, D - discharging, and C - canal passage.

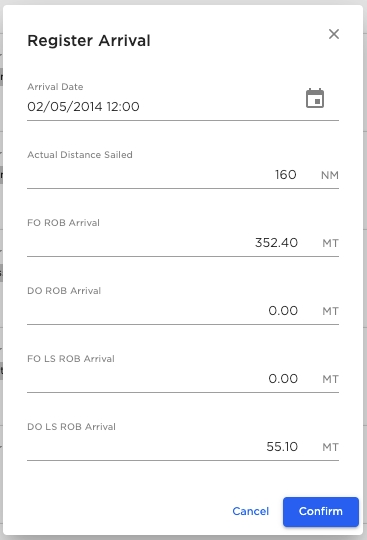

To register an arrival in a Port, open the drawer for the given Port Call by clicking it in the list. Then click the icon at the top of the drawer and select "Register Arrival". A dialog will open and allow you to enter the arrival details.

The 'Routing' tab allows comparing different routes regarding essential information such as Voyage TCE, Voyage Result, total distance, total days, etc.

See the screenshot below (Image 1) for an example:

A voyage going from Bergen to Hamburg through Newcastle is displayed. The routing tab illustrates an alternative route for each leg on the mentioned voyage. As presented in the screenshot, there is a key difference between the routes:

• TCE Difference: the TCE difference indicator shows the difference between the alternative route TCE and the currently selected route TCE. So, for the leg, Bergen -> Newcastle, the current TCE is -525 USD. On the other hand, selecting the alternative route will result in +27 USD, which is -497 USD of TCE total (See Image 2).

• Estimated Distance: illustrates the estimated distance for each leg, original and alternative.

• Sea Margin: shows the sea margin.

The map is also interactive and helps to visualize the alternative route, providing crucial data.

Detailed Comparison:

It is also possible to compare the routes in more detail! For instance, take a look at the screenshot below:

Clicking the top-right arrow in each container expands the detailed information.

The apply button proceeds with the changes and saves the selected route for the current voyage.

Note: The alternative routes may be created manually or must be coming from a third party, such as weather-based routes, etc.

The VMS provides powerful voyage tools for risk assessment and estimations on cargo capacity on port calls.

These tools are available from Voyages or PlanningFleet Plans

1. Click on a voyage in the voyages list or board to open it in the drawer.

2. At the top right, click on Functions.

With the Sensitivity Analysis tool you can run calculations on a chosen parameter to evaluate risk.

1. Click on a voyage in the list or board to open it in the drawer.

2. At the top right, click on Functions.

3. Select Voyage Sensitivity Analysis.

Input parameters

Select a voyage parameter which is then adjusted by the numerical variance for each calculation.

Chart

Reading the chart

The chart shows all the calculated values for the voyage. There are 15 data points, with the current voyage displayed in the middle, with negative variance on the left side, and positive variance on the right side.

The value of the selected Voyage is specified with a blue vertical line. The figures you find in a small box above each point reflect the X-axis values for each point.

Hover the mouse over the chart to inspect the values of each calculation data point.

Moreover, you may find a table on the right from the Sensitivity Analysis chart. The table consists of the calculated values, placed in ascending order. The table may ease navigation among calculations.

Downloading the chart

The comparison button can be found as a primary action in the Voyage drawer:

Overview

In this view, you are able to have an overview of the voyages to compare, copy the voyages you want to compare and/or open the Voyage drawer of the voyages:

In this first implementation, you are able to compare the Profit/Loss values, such as Freight, Total Port Cost, Bunker Cost, Various Cost, Contribution, TCE and Result between the voyages. The voyage you are comparing to is the left-most voyage. When you use the copy-function to the right of the table header, you copy that specific voyage. Meaning, the values will initially be the same, until you alter the values yourself. That is why voyage #1 and voyage #3 are identical, only voyage #2 was altered here. If you want to copy voyage #2, a new voyage #4 will have identical values to voyage #2, etc.

By clicking the reference number of the voyage (blue numbers) to the left of the table header, you will open the Voyage drawer of that specific voyage. There, you can view and/or alter the voyage, as the table rows are uneditable as of now.

The Voyage schedule visualization may be found on the right-hand side of a voyage drawer.

This section is highly customizable: e.g., you may change the voyage start date, lock it, edit the Voyage's speed, update the port call sequence, and much more!

The Schedule Timeline is a fully interactive module. Each port represents a draggable block - if you reorder the blocks, you will update the port call sequence on the opened voyage correspondingly:

Next, each Port Call block is clickable, and it brings up a Port Call drawer.

The small ovals inside of each Port Call block includes a piece of related information: Days at Sea + Extra Days at Sea, Actual Speed, and Distance between Ports. Every oval is clickable and allows editing corresponding sea passages.

Moreover, the Port Call blocks include a small functional bar that provides the following actions on the voyage schedule sequence: show Port Cost history overview, create new Port Call to the current schedule, edit the selected Port Call, or delete the Port Call.

With the Intake Calculation function you can change parameters of a voyage to get an overview of quantities available for cargo at the port calls.

1. Click on a voyage in the list or board to open it in the drawer.

2. At the top right, click on Functions.

3. Select Voyage Intake Calculation.

Voyage Header Parameters

At the top, below the vessel-chip and voyage reference, fields for changing the stowage and bunker properties for the entire voyage are displayed.

Schedule Table

A table of all the port calls on this voyage is shown in this section. To change the intake reduction properties per port call, click a row to open a window where you can make adjustments. Some columns are hidden by default, and can be toggled on/off by using the "Customize Columns"-button in the top right corner of the table.

Chart

A mixed chart of the calculation results is generated at the bottom. Each port call has multiple graphs to show the reductions, cargo quantity and quantity available for cargo. The charts gets updated automatically when there are changes to the voyage header, port call, or vessel parameters.

Click on the legends at the top of the chart to toggle the display of a graph. Hover the mouse over the chart to inspect the values of each calculation data point.

Loadline Information

You are able to keep in control of all your organisations inserted cargoes using the cargo module in VMS.

Layout:

The Cargoes module is divided into the Allocated cargoes and the Unallocated cargoes. In each tab, you can filter the cargoes based on several key endpoints to effectively view the required information on your screen. There is a sort icon to the far right, with different options for sorting the list as well. You can read more here: .

Below you can click to read how to create different types of cargoes:

To efficiently create a cargo, and link them with CoAs, you can create a cargo based on a CoA Template. The CoA Templates are the template cargoes that are maintained in the CoA module.

Steps:

1. Open the Cargoes module from the menu on the left.

2. In the top right corner, click Create .

3. Select Create New Cargo From CoA Template.

4. In the modal, select a CoA template to create the new cargo. The fields that are pre-filled are the ones that were filled in when creating the CoA itself, which the new cargo will inherit.

5. Click Create.

The modal:

Feature:

• The modal is now draggable, making it easier to see the information "behind" the modal. Hover over the title or the top of the modal to activate it.

• Looks and works quite similar to Create Voyage From Template.

Within a TC voyage drawer, the Cargo tab is enabled for you to create new cargoes on the voyage:

Cargo Restrictions:

• You cannot create a cargo from CoA templates

• You cannot create a cargo if there are no load- or discharge port calls on the voyage

  • Even when we have the delivery/redelivery port calls

  • You need to create at least one loading- and discharging port calls on the voyage schedule (unique values)

• You can only create cargoes with cargo ports based on the port calls in the voyage schedule

  • The port selectors on the upper-left side of the modal are restricted to only display these cargo ports (also with its attached terminals)

Drawer Restrictions:

The following actions are disabled from the secondary drawer actions:

• Unallocate Cargo

• Allocoate Cargo

• Relet

• Transship

• Preship

• Transfer

Drag & Drop Restrictions:

In the FAS Cargo Management board, these following actions are disabled:

• Dragging an unallocated cargo to a TC voyage

• Dragging an allocated cargo on a TC voyage to Commitments

• Dragging an allocated cargo from one TC voyage to another voyage (TC or not)

When you open the cargo drawer this is the top section of the drawer.

By clicking the various tabs you get the relevant information about the cargo. Check out the next pages for information about the different tabs.

On the left side you will see the cargo reference, status of the cargo, and if it is a spot or CoA cargo.

On the right side you have primary actions; PDF and copy. The three dots is a dropdown with secondary actions for the drawer. If you click the three dots you will be presented with the below view as a drop down:

You can allocate/unallocate the cargo.

You can delete a cargo.

You can arrange Tranship, Preship or Transfer the cargo.

You can also connect the cargo to a CoA and remove the connection when connected.

And finally you have the option to view the audit log or append attachments to the cargo.

To maintain the cargo click the cargo in the list. The selected cargo will be opened in a cargo drawer where you can edit fields, copy cargo, create a pdf from the booking and so forth. Click the cargo drawer page here to see more details.

In the Sub-cargoes tab you may enter sub-cargoes

By clicking the blue plus icon in the top right corner you can create sub-cargoes.

Once clicked the below modal will appear:

Once the required fields are filled in the create button will be activated and you may create the sub-cargo. The modal for editing a sub-cargo is identical.

In the various Cost/Revenue Tab there will be two tables. One table for various cost and one for various revenue.

To add a Various Cost click the blue plus icon in the top right corner. Once clicked the below modal will appear.

Once the required fields are filled in the create button will be activated and you can create the Various Cost.

To add a Various Revenue click the blue icon in the top right corner. Once clicked the below modal will appear:

Once the required fields are filled in the create button will be activated and you can create the Various Revenue.

To delete either a Various Cost or a Various Revenue select the item from the table by clicking the checkbox on the far left side.

Once one or more items are selected you can click the trashcan to delete the selected item(s).

KPIs

At the top in the main details you will find the KPI-cards.

• First tile: Cargo quantity is the actual quantity, and booked is the booked quantity.

• Second tile: Freight is the total freight for the cargo.

• Third tile: Commission and various costs.

• Fourth tile: Net Fio is all cargo related revenue aggregated and then deduct all aggregated cargo cost - divided by the quantity of the cargo.

Main Cargo Details

Below the KPI tiles is the Main Cargo Details section on the left side:

All fields that are enabled can be changed from this view. The following fields and options may be disabled under certain circumstances.

Overview of Fields:

Stowage

Below Main Cargo Details section, there is a section for inputting fields and checkboxes regarding the stowage values of the cargo:

Cargo Port Timeline

Below the KPI-cards on the right side is the Cargo Port Timeline together with LayCan dates. Laytime used is the estimated laytime allowed. The date fields are validated and if the validation fails the date field that needs to be corrected is highlighted in red and there is a short message under the date field indicating what is wrong.

Editing a Cargo Port will give you access to a few more fields, for instance Handling Cost, Laytime Terms and related fields.

On the left side of the tab below the Main Cargo Details is the Stowage section

Bunker Adjustments

On the right side, below the Cargo Port Timeline section, you can create/edit and view a list of Bunker Adjustments on the cargo:

For both of these options you will be able to choose the bunker types: DL (LS MGO), DO (MGO), FL (LS FO) or FO. You can also input/edit the other fields, such as: Min Price, Max Price, Adjustment Factor/Agreed Consumption and Price. The Price field is still editable even though the input of the Min-/Max Price fields calculates the average price.

The total adjustment is calculated if the price is outside the minimum/maximum range, i.e:

• Min range: 500, Max range: 550, Price: 600 => Positive adjustment

• Min range: 500, Max range: 550, Price 400 => Negative adjustment

This calculation you can see as the price value in the second KPI tile by the last field called Bunker Adjustment:

Overview of Fields:

Miscellaneous

On the right side, below the Bunker Adjustment section, you can enter external reference, Trade, Cargo Text, Comment, Company, Business Unit and Cargo Operator:

Relets and Transshipments

At the bottom of this tab there is be a list of Relets and Transhipments for the cargo:

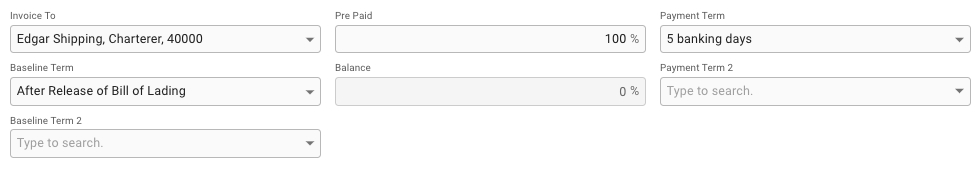

In the Payment Terms tab you can enter the payment details as per above fields.

In the Commissions tab you can create new commissions by clicking the blue plus icon in the top right corner.

Once clicked the below modal will appear:

Once the required fields are filled in the create button will be activated and you can create the new Commission, which then will appear in the table in the Commissions tab.

In the Freight Rate Tiers tab, you can create, edit and delete different freight rate tiers for the cargo. It is also possible to choose between a tiered and a volume rate model.

Tiered: In tiered pricing, the per-unit freight rates are assigned to quantity-based ranges (tiers). When calculating the total freight, quantities are purchased from successive tiers, starting from the lowest. Example: In the below example, a cargo of 8000MT would have a freight rate of 11 USD for the first 4999MT and a freight rate of USD 12 for the remaining 3001MT. The freight rate will show as a weighted average on the cargo.

Volume: Here too, the freight rate is quantity-based. However, the per-unit freight rate is dependent on the range within which the total quantity falls. So, under this model, you would define the quantity ranges and the per-unit freight rate for each. Example: In the below example, a cargo of 8000MT would have a freight rate of 12 USD for the entire quantity.

If a cargo has one or more tiers in this section, the Freight Rate and Rule field in the section will be uneditable. Rule will also be changed to Rate.

To delete one or more tiers, click on the checkbox mark on the left side of the list. Doing so will bring up the button to delete the tiers. Clicking on the button will bring up a confirmation modal.

The webVMS contains all cargoes created in your system. To access this list you should navigate in the menu to the "Cargoes" link. This will open up your list of cargos.

There are several sorting and filtering options available for you to narrow down what you include in the list view.

In the comments tab there is a list of previous comments made, and at the bottom you can add new comments.

1. Click a cargo in the Cargoes module list.

2. When the drawer opens, open the action menuin the top right.

3. Click the Allocate Cargo button to open a dialog for allocation.

In the dialog, select Vessel and Voyage you want to allocate the cargo to. A preview of the voyage schedule will then show the cargo ports to the left and voyage port calls to the right, as in the screen capture below. The allocation will be done using the existing port calls on the voyage if they match the cargo ports. If no port calls and cargo ports match, additional port calls will be created on the voyage. These new port calls are denoted with "Adds New Port Call". When allocating, the cargo will also have its company and business unit changed to the voyage's company and business unit. You can edit the cargo's company and/or business unit after the allocating if you want it to be different from the voyage's.

Click Allocate to allocate the cargo and create any new necessary port calls on the voyage.

Template cargoes are currently handled in Contract of Affreightment Line module.

The capacity plan gives you a monthly overview if your fleet is over or under booked with cargoes. For each months and each trade, we compare the available cargoes to the capacity in your fleet which is serving that trade.

To open the Capacity Plan, go to Chartering > Cargoes and select Capacity Plan in the top bar.

Overview

You can navigate between the current month and future months at the top of the dashboard. You also filter to restrict the view to a particular set of trades.

The are three summary cards at the top displaying information on all trades selected in the filter :

• Free capacity: Total deadweight - total weight

• Deadweight: Total deadweight of vessels loading in the selected month

• Weight: Total weight of cargoes with laydays commencement in the selected month.

For free capacity and weight, we distinguish between total values and fixed values. The latter takes only cargoes into account which have status "Clean Fix".

Trade panels

An expandable panel is shown for each trade, with totals for that trade. There are two lists inside the panel, one for cargoes by charterer and one for vessels.

Cargoes by charterer

In each trade panel there is a list of total cargo weight and volume grouped by charterer. Only cargoes where laydays commencement lies in the selected month are counted.

All "fixed" charterer cargo totals are listed first, while "not fixed" entries are indicated in grey.

Vessels

In each trade panel there is a list of vessels. For each voyage in the master fleetplan, the vessel that voyage is allocated to is listed if the following two criteria are met:

1. The voyage is marked with this trade or its performance cargo belongs to the trade.

2. The voyage has arrival date in the first load port within the selected month.

Some background

Cargoes are loaded and discharged in cargo ports and these cargo ports are linked to the port calls you find in the voyages schedule.

One port call can be linked to:

• no cargo port - for port calls to Bunkering, Canal Passages etc.

• one cargo port - when loading/discharging one cargo

• more than one cargo port - when loading/discharging more than one cargo

When deleting a cargo the link between the cargo ports and port calls will define what options you will see in the delete cargo window.

The options

When deleting a cargo which has cargo ports linked to a port calls which are linked to some other cargos cargo ports you will get a simple confirmation message before cargo is deleted as per below

A relet can be defined as the act of sub-chartering a cargo to other owners to transport. A relet always covers the entire voyage of a relet cargo.

Relets are listed at the bottom of the cargo drawer under "Relets and Transhipments".

Relet a Cargo

1. Open the Cargoes module in the Core section.

2. Click a cargo in the list to open it in a drawer.

3. At the top right in the drawer, click Moreand select Relet.

4. Fill in the "Owner" field and click Confirm.

A copy holding most of the same data of the cargo to be relet will be created in the system .

Delete a Relet

1. Find the cargo that was relet.

2. Find the relet listed under "Relets and Transhipments" in the cargo drawer and click to open it.

3. At the top right in the drawer, click Moreand select Delete.

When a cargo has been connected to a Contract of Affreightment (CoA), a secondary action called 'Remove CoA' will be enabled which will allow you to revert the connection and disconnect the cargo from the CoA. If the Cargo does not have any CoAs connected, the Remove CoA button will be greyed out and disabled. The Secondary Action menu is opened by clicking the triple-dot icon in the upper right of the Cargo Drawer

Clicking the 'Remove CoA' button will instantly disconnect the CoA link from the Cargo.

A transshipment is the shipment of cargo to an intermediate destination, then by a different vessel to another destination. It is a type of created from a cargo booking from a particular discharge port at the end of an original booking.

A preshipment is another type of relet created from a cargo booking. It is the shipment of cargo from a location to that cargo's load port in an existing cargo booking. This includes the transfer to the vessel transporting from the load port.

Transshipments and preshipments are listed at the bottom of the cargo drawer under "Relets and Transshipments".

Transship or Preship a Cargo

1. Open the Cargoes module in the Core section.

2. Click a cargo in the list to open it in a drawer.

3. At the top right in the cargo drawer, click Moreand select Transship or Preship.

4. Fill in the fields listed below.

5. Click Confirm to relet the cargo.

Transshipment

Preshipment

A cargo transfer is a type of where a cargo transported on two voyages. The cargo is transported on the first voyage to one port and then further transported on a second voyage to its final port.

You start with a cargo with a load and discharge port which represents the first part of the cargoes journey (on the first voyage). From a system perspective, the action "transfer" creates a new cargo for the second part of the journey (on the second voyage).

The original cargo will receive cargo type "Has Transfer", and the new cargo will receive cargo type "Transfer."

The following fields are synchronised:

• cargo quantity and measurement unit

• commodity

• discharge rate + terms of has transfer cargo = load rate + terms of transfer cargo

Transfer cargoes are listed at the bottom of the cargo drawer under "Relets and Transshipments".

Transferring a Cargo

1. Open a cargo drawer.

2. At the top right in the cargo drawer, click Moreand select Transfer.

3. Fill in the form fields:

   1. Owner of the vessel to transship the cargo.

   2. Final discharge port of the transfer.

   3. Second vessel to transport the cargo.

   4. Second voyage to transport the cargo.

4. Click Transfer.

The discharge port of the original cargo will be the load port of the transfer cargo.

A list of sub-cargoes can be found under Cargoes menu item as a tab at the top of the page.

The list contains sub-cargoes from allocated and unallocated cargoes.

To edit a a sub-cargo, click an item in the list to see a dialog window open.

Register Reports

At the top of the drawer you can locate an action menu with several action options:

• Register Noon Report

• Register Arrival

• Register In Port Report

• Register Departure

Port Call Tabs

In the Port Call drawer, you can look through the different tabs below to display all the relevant information:

More detailed information in each of the tabs you can find under in the Port Calls section. Ex. "View Service Orders on Port Calls" for more information about Service Orders in each Port Call.

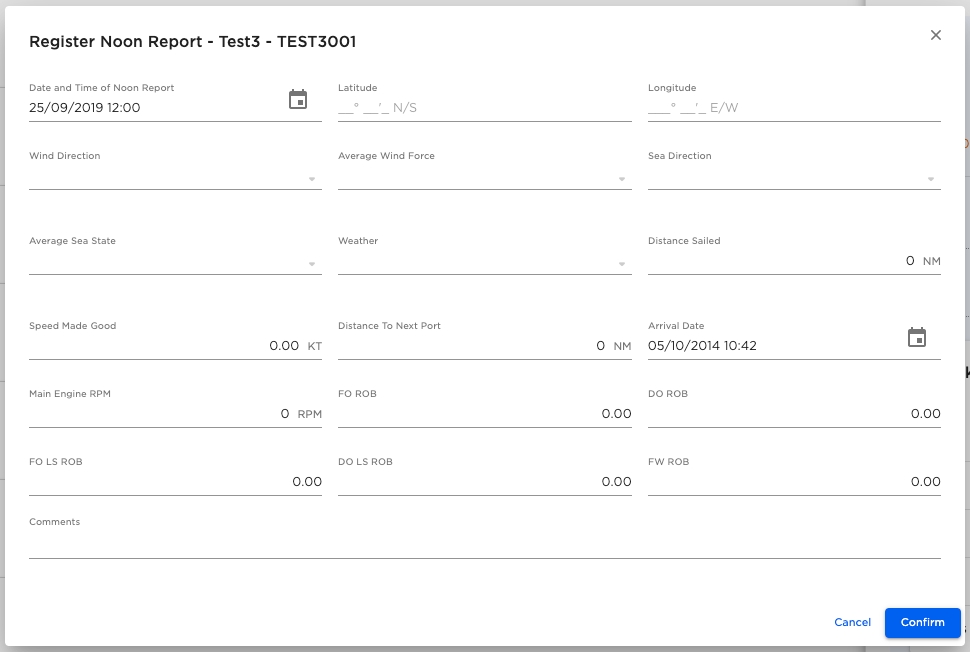

To register a Noon Report, open the drawer for the given Port Call by clicking it in the list. Then click the icon at the top of the drawer and select "Register Noon Report". A dialog will open and allow you to enter the details.

Overview

This tab contains all the main details for each of the port calls. Here we have the tile boxes displaying a vessel's number of days "at sea", as well as the "average speed/consumption", days "in port" and the "port cost". There are also sections for Sea Passage and Port, as well as sections for Comment and the Bunkers table. We also have a new Map component displaying a port call. By zooming out you will get the whole voyage that is linked to the port call: ‌

The Sea Passage- and the Port sections contains these fields:

Look here for some more information about Speed Order.‌

Arrival-, Berthed- and Departure dates are validated with comparisons to the Voyage Start- and Previous Portcall Departure dates, for correct date range. If the date you are trying to add is out of range, a warning prompt will show up, and you can choose different dates.‌

The Comment section is useful if you want to add in more additional information about a vessel or a voyage.‌

At the bottom of the Overview tab, we have the Bunkers table. It has been updated and contains now the fields "arrival", "arrival fixed", "quantity", "consumption", "departure", "departure fixed":​

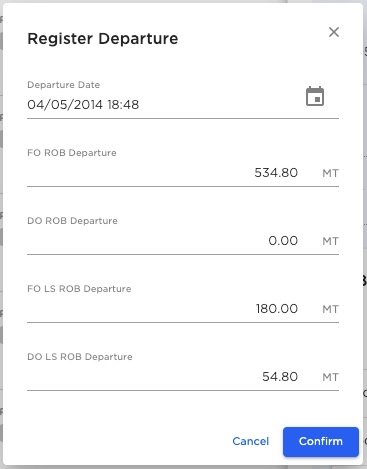

To register a departure in a Port, open the drawer for the given Port Call by clicking it in the list. Then click the icon at the top of the drawer and select "Register Departure". A dialog will open and allow you to enter the departure details.

To view service orders on a Port Call, open the drawer for the given Port Call by clicking it in the list. When inside the drawer click the "Service Orders" tab, which will display registered service orders in a table.

By clicking a row in the service orders table, a new drawer view will open with additional service order information, like in Maintain Service Order.

Create Service Order

2. Fill in the required fields for your order.

4. Click Create when you are done.

Also see Create Service Order.

To view bunker orders on a Port Call, open the drawer for the given Port Call by clicking it in the list. When inside the drawer click the "Bunker Orders" tab, which will display registered bunker orders in a table.

By clicking a row in the bunker order table, a new drawer view will open with additional bunker order information like in Maintain Bunker Orders.

The Port Log allows you to record all during a port call. The events are specific to a cargo and gives important information in a Laytime Statement about what has occurred and when.

To access the Port Log go to the CorePort Calls module and click a port call to open the drawer to find the "Port Log" tab at the top.

Event Table

The event table lists all applicable events for the port call. Events are either on Cargo Port or Port Call (PC) level. The columns in the table are event names, port call event dates and cargo event dates (one per cargo registered on that port call). The column header for cargo shows charterer name, cargo reference number and quantity.

Registering Event Dates

To register a date for an event, click on a cell in the table and press Save in the appearing window. Dates can be cleared by opening the event date window again and pressing backspace to delete the date in the input field.

Steps:

1. Open the Voyages module from the menu on the left.

2. On the Schedule, hover over the desired port, a toolbar in the upper right of the cursor will appear.

3. Click the Port Cost Historybutton to open the Port Cost History drawer.

You can choose to use either the Actual Port Cost or Preliminary Port Cost of previous port calls to update the port cost of the selected port call.

To make use of a Preliminary Port Cost of a previous port call, click the button to the right of the Preliminary column. To make use of an Actual Port Cost of a previous port call, click the button to the right of the Actual column. Clicking this button will also update the currency of the port cost of the selected port call to the currency shown on the row.

Using Filters

You can use the quick filters to find the port cost you are looking for.

The following filters are available in Port Cost History List:

• Vessel name

• Deadweight (DWT)

• Reason for call

• Currency

In the port log tab there will be an overview of stoppages registered for both cargo ports, and for the port call.

A list of all cargo ports connected to the port call will be displayed in the form of collapsible panels.

When opening a cargo port panel, a list of stoppages will be presented. The stoppages are editable if the cargo port does NOT have a laytime calculation connected.

It is possible to create new stoppages for a cargo port, by clicking the + sign in the top right corner of the cargo port panel. It is the same fields for creating and editing a stoppage.

Underneath all the cargo ports, a list of all stoppages related to the port call will be displayed. Stoppages that are related to the connected cargo ports will be marked with the commodity name as well.

If one or multiple Service Orders are present on a Port Cost the rightmost corner of the row will show an expandable arrow

By clicking the arrow , all the linked Service Orders will be shown.

An expandable arrow on the rightmost side of the Service Order row is also available, and clicking this will show the Service Order Lines for the selected order.
